Item# H7506 Model# H7506

Grizzly H7506 - Horizontal/Vertical Rotary Indexing Table with Chuck

$1,161.00
+$179.00  Freight
+$0.00  Oversize
List Price: $1,290.00
You Save: $129.00 (10%)
Buy now! Sale ends 11/28/22 (PST)

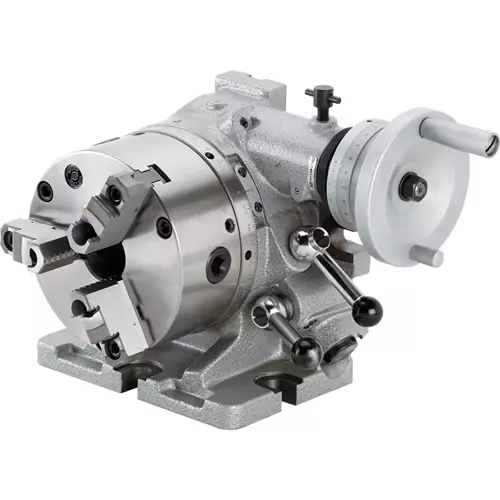

H7506 Horizontal/Vertical Rotary Indexing Table

A rotary table with an indexing head.

A rotary table allows drilling or cutting at exact intervals around vertical and horizontal axes.

The H7506 Horizontal/Vertical Rotary Indexing Table has an indexing head, a precision adjustable 3-jaw chuck, and can be used in the horizontal or vertical position for a variety of milling applications.

These different operations include milling eccentric features, cutting arcs, create large diameter holes, and circular profiles.

The 3-jaw chuck can is mounted directly to the table with the included cap screws.

The H7506 is supplied with six spacer masks and is capable of 2, 3, 4, 6, 8, 12, and 24 divisions with the main indexing plate.

The 24-slot main indexing plate is drilled with eleven holes so the position of the spacer plates can be changed during machining operations for different setups.

Control is very accurate and precise thanks to the 10° table movement per handle rotation and 10 second vernier scale.

Like all Grizzly rotary tables, the H7506 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The H7506 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your rotary table.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Size: 8"
  • Total T-slots: 6
  • Approximate weight: 129 lbs.

FEATURES:

  • Can be used in horizontal or vertical position
  • 4° per Revolution
  • Vernier scale reads to 10 seconds
  • Backlash adjustment wheel and lock
  • Table lock lever
  • Indexing lever
