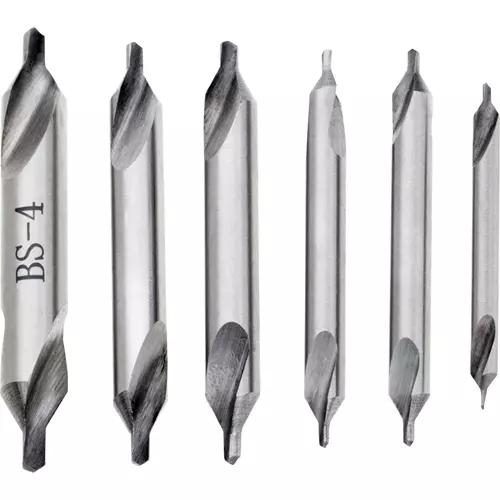

T24512 6-Piece 60° Mini Center Drill Set

The T24512 Center drills consist of a pilot drill on one side and a countersink on the other.

These center drills are used to cut holes in the center of a piece of stock on a metalworking lathe.

They all have the most common live center angle at 60°.

The double ended H5930 HSS Center Drills are precision ground and includes sizes 1-4. There are two #2 and #3 center drills in this set.

HSS (high-speed steel) has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

SPECIFICATIONS:

• Material: High-speed steel
• Angle: 60°
• Size 1: Body Dia. 1/8", Drill Dia. 3/64", O.A. Length 1-1/4" (one bit)
• Size 2: Body Dia. 3/16", Drill Dia. 5/64", O.A. Length 1-7/8" (two bits)
• Size 3: Body Dia. 1/4", Drill Dia. 7/64", O.A. Length 2" (two bits)
• Size 4: Body Dia. 5/16", Drill Dia. 1/8", O.A. Length 2-1/8" (one bit)
