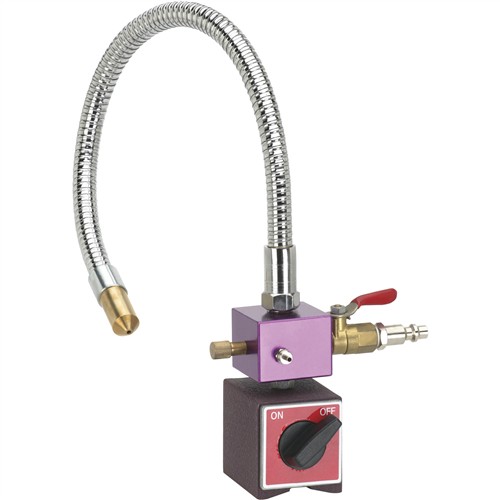

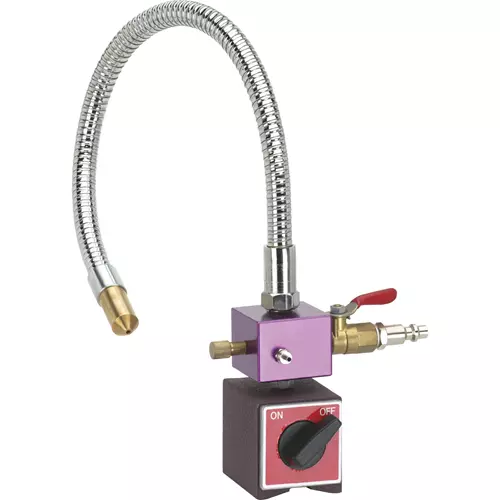

T10121 Magnetic Misting Unit

Add coolant misting to your machining operations.

17-1/2" of flexible nozzle lets you aim an effective mist of coolant right at the cutting operation.

A powerful magnetic base holds the unit in place or it can be easily repositioned with just the turn of the switch.

This unit includes a quick connect air hose connection, coolant hose connection, and adjustable needle valve mist control.

The T10121 instruction sheet was written by our U.S.-based Technical Documentation Department and is packed with useful information.

SPECIFICATIONS:

• Distribution tube overall length: 19-3/4"
• Atomizing tip orifice ID: 2mm
• Construction: Steel, brass, aluminum
• Suction tube: 3/32" x 80"
• Suction tube filter type: Brass wafer
• Air valve type: Lever and ball
• Misting valve type: Knob and needle
• Fitting type: Push-on 1/4" NPT
• Recommended air supply: 90–120 PSI
• Approximate shipping weight: 4 lbs.
• 1-year limited warranty

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

Note: Item colors may vary
