Item: G1005 | Model: G1005

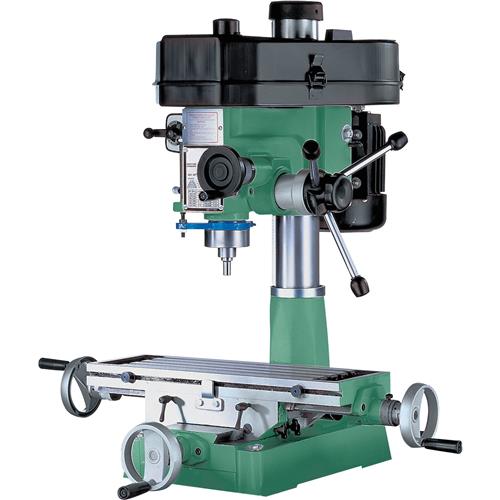

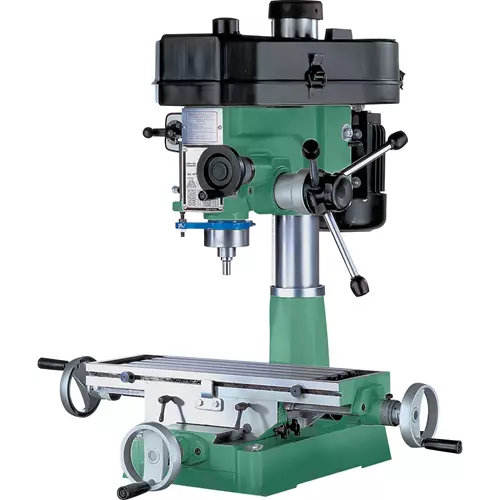

Image for G1005
The Model G1005Z Mill/Drill comes complete with 1/2" drill chuck, small angle drilling vise, and carbide-tipped fly cutter.

Features:

  • Head swivels 360º
  • Front-mounted ON-OFF switch with thermal overload protection
  • Heavy-duty 1 HP motor
  • Excellent speed range
  • Extremely quiet machine
  • Easy clutch-type mechanism for engaging fine down-feed
  • Positive quill lock
  • Adjustable gibs on table
  • Adjustable stops on table
  • Spindle supported by heavy-duty, tapered roller bearings
  • Graduations in inches

Specifications:

  • Spindle taper: R-8
  • Spindle travel: 3-5/8"
  • Swing: 16"
  • Max. distance spindle to table: 15-3/4"
  • Column size: 3-5/8"
  • Collars calibrated: .001"
  • T-Slots: Use 3/8" Studs
  • Table size: 6-1/4" x 20-1/4"
  • Longitudinal table travel: 12-1/2"
  • Cross-slide travel: 6"
  • Drilling capacity: 1"
  • Number of speeds: 12
  • Range of speeds: 110-2580 RPM
  • Motor size: 1 HP
  • Approximate shipping weight: 420 lbs.
View More Details

Accessories

Image for G9512 T-Slot Nuts, pk. of 4, 1/2" Slot, 3/8" - 16 Item# G9512 $10.50 Add Image for G1075 58 Pc. Clamping Kit for 1/2" T-Slots Item# G1075 $93.95 Add
Overview Specification Sheet Buy Parts
Overview
The Model G1005Z Mill/Drill comes complete with 1/2" drill chuck, small angle drilling vise, and carbide-tipped fly cutter.

Features:

  • Head swivels 360º
  • Front-mounted ON-OFF switch with thermal overload protection
  • Heavy-duty 1 HP motor
  • Excellent speed range
  • Extremely quiet machine
  • Easy clutch-type mechanism for engaging fine down-feed
  • Positive quill lock
  • Adjustable gibs on table
  • Adjustable stops on table
  • Spindle supported by heavy-duty, tapered roller bearings
  • Graduations in inches

Specifications:

  • Spindle taper: R-8
  • Spindle travel: 3-5/8"
  • Swing: 16"
  • Max. distance spindle to table: 15-3/4"
  • Column size: 3-5/8"
  • Collars calibrated: .001"
  • T-Slots: Use 3/8" Studs
  • Table size: 6-1/4" x 20-1/4"
  • Longitudinal table travel: 12-1/2"
  • Cross-slide travel: 6"
  • Drilling capacity: 1"
  • Number of speeds: 12
  • Range of speeds: 110-2580 RPM
  • Motor size: 1 HP
  • Approximate shipping weight: 420 lbs.
