H8370 Power Feed for Mill / Drills

If you want to get the most out of your mill drill, you really need a power feed.

The H8370 power feed is designed to install on the left side of a mill/drill table to provide powered longitudinal movement of the table.

The direction lever starts, reverses, and stops longitudinal table movement.

The rapid movement button moves the table at the maximum speed in the direction selected.

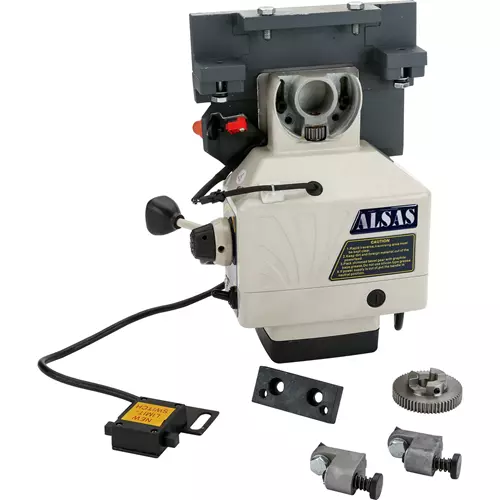

It comes with everything required to start milling with exact control including: a mounting bracket, gear, auto-stop limit switch with movable stop pins, gear guard, and motor.

The H8370 ALSGS models are manufactured before 2024. The H8370 ALSAS models are manufactured during and after 2024.

The H8370 manual was written by our U.S.-based Documentation Department is packed with useful information.

SPECIFICATIONS:

• Motor: 110V, 60 Hz, 1A
• Speed: Variable, 0-270 RPM
• Maximum torque: 560 in/lbs.
• Bevel drive gear: 2.8:1
• ALSGS: Model year prior to 2024
• ALSAS: Model year 2024 or newer

FITS:

• Grizzly G0705 8" x 29" 2 HP Mill/Drill
• Grizzly G1005Z 1 HP Mill/Drill
• Grizzly G1006 2 HP Mill/Drill
• Grizzly G1007 2 HP Mill/Drill
