Grizzly Precision T34071 - 110-Pc. SAE/Metric Combination M2 HSS Tap & Die Set
T34071 110-Piece Inch/Metric Combo M2 HSS Tap & Die Set
The Grizzly Precision line of professional-grade metalworking tools is proud to offer comprehensive tap & die sets.
Metalworking tooling is normally more expensive than woodworking due to being manufactured to tighter tolerances to achieve higher precision tool life.
Cut new or repaired damaged threads with the exceptional quality of the T34071 Inch/Metric Combo set.
This 110-piece tap and die set includes popular UNC, UNF, metric, machine, and NPT sizes to achieve precision threading requirements for both internal and external threads. It includes both bottoming and plug taps, as well as the corresponding dies of the same size.
HSS plug taps feature a notable taper at the end, designed for a gradual entry into thread cutting, typically encompassing 3 to 5 tapered threads.
HSS bottoming taps have a slight taper at the end, to thread all the way to the bottom of a non-through or blind hole.
The HSS dies come in two diameter sizes and have a 2 to 3 thread chamfer for threading on one side, and no chamfer on the other.
These professional-grade tap & dies are made from M2 HSS steel that is tough, wear-resistant, and has high hardness properties. HSS (high-speed steel) has been heat treated to keep a sharp edge longer than other carbon steels.

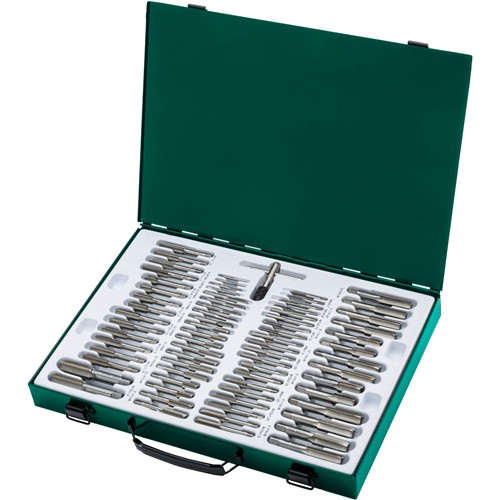

For safekeeping and organization, this combination HSS tap & die set comes in a convenient carrying case.
Made in an ISO 9001 factory
INCLUDES:
- (35) Bottoming taps
- (35) Plug taps
- (22) 1" OD dies
- (13) 1-1/2" OD dies
- (1) 1/8"–1/2" (M3-M12) adjustable tap wrench
- (1) 3/16"–3/4" (M5-M20) adjustable tap wrench
- (1) 1" OD die stock
- (1) 1-1/2" OD die stock
- (1) T-handle tap wrench
- Metal carrying case
SIZES:
- Standard UNC and UNF: 4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 1/4-24, 1/4-32, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16
- Metric: 6 x 1.0, 8 x 1.25, 10 x 1.0, 10 x 1.5, 11 x 1.5, 12 x 1.25, 12 x 1.75, 14 x 1.25, 18 x 1.5
- Pipe: NPT 1/8-27, NPT 1/4-18
