T34074 45-Piece TiN-Coated Steel Alloy SAE Tap & Die Set

A tap & die set with extended tool life for cutting threads up to one inch.

Restore or make threads economically using the T34074 SAE Tap & Die set, made from durable steel alloy and then coated with titanium nitride (TiN). TiN coating contributes to a cleaner and more precise cut, enhancing the surface finish of threaded holes and bolts.

Crafted with durability in mind, this TiN-coated steel alloy tap & die set offers improved wear resistance, reduced friction, longer tool life, enhanced surface finish, corrosion resistance, and increased versatility.

This 45-piece tap and die set includes popular SAE sizes from 1/4" to 1" to achieve precision threading requirements for both internal and external threads. It includes both plug taps, as well as the corresponding dies of the same size.

Plug taps feature a notable taper at the end, designed for a gradual entry into thread cutting, typically encompassing 3 to 5 tapered threads.

The dies come in 1-1/2" and 2" diameter sizes and have a 2 to 3 thread chamfer for easy threading on one side, and no chamfer on the other.

A die adapter allows the 1-1/2" dies to fit in the 2" die stock.

For safekeeping and organization, this SAE steel alloy tap & die set comes in a convenient carrying case.

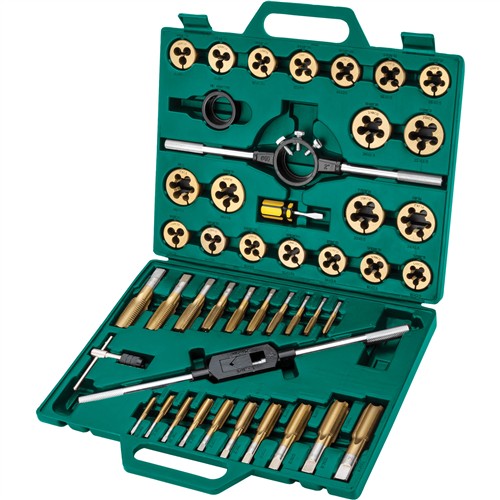

INCLUDES:

• (20) Plug taps
• (14) 1-1/2" OD dies
• (6) 2" OD dies
• (1) 1/4"–1" (M6-M25) adjustable tap wrench
• (1) 2" OD die stock
• (1) 1-1/2" OD die adapter
• (1) T-handle tap wrench
• (1) Screwdriver
• Blow molded plastic carrying case

SIZES:

• Standard: 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13,1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16, 7/8-9, 7/8-14, 1-8, 1-14
