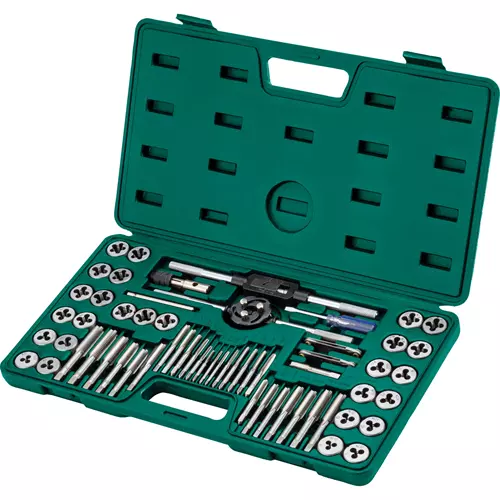

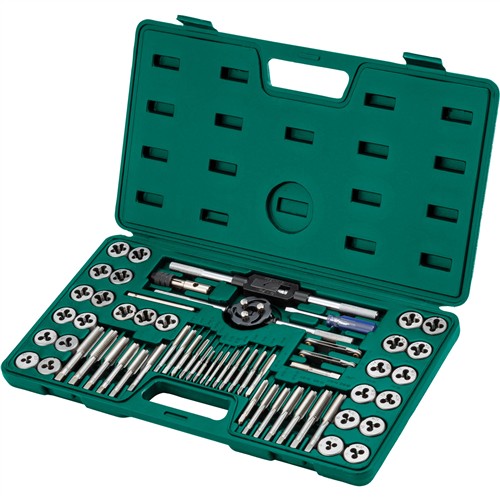

T34079 60-Piece Combination Steel Alloy Tap & Die Set

A steel alloy tap & die set for a wide range of thread sizes up to one inch.

Restore or make threads economically using the T34079 Combination Tap & Die set, made from durable steel alloy. Enjoy dependable performance without straining your budget.

The set has been crafted with precision and versatility in mind when trustworthy tool performance and value are of utmost importance.

Its precision and versatility make it an economical choice for a wide range of standard, metric, machine, and NPT threading applications from 1/4" to 1/2", 3mm to 12mm, #4 to #12, and NPT 1/8-27 respectively.

This 60-piece tap and die set allows for precision threading requirements for both internal and external threads. It includes both plug taps, as well as the corresponding dies of the same size.

Plug taps feature a notable taper at the end, designed for a gradual entry into thread cutting, typically encompassing 3 to 5 tapered threads.

The Dies come in 1" diameter sizes and have a 2 to 3 thread chamfer for easy threading on one side, and no chamfer on the other.

For safekeeping and organization, this combination steel alloy tap & die set comes in a convenient carrying case.

INCLUDES:

• (27) Plug taps
• (27) 1" OD dies
• (1) 3/16"–1/2" (M4-M12) adjustable tap wrench
• (1) 1" OD die stock
• (1) T-handle tap wrench
• (1) Metric screw pitch gauge
• (1) SAE screw pitch gauge
• (1) Screwdriver
• Blow molded plastic carrying case

SIZES:

• Standard: #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
• Metric: 3 x 0.5, 4 x 0.7, 5 x 0.8, 6 x 1.0, 7 x 1.0, 8 x 1.25, 9 x 1.25, 10 x 1.0, 10 x 1.5, 12 x 1.75
• Pipe thread: NPT 1/8-27
