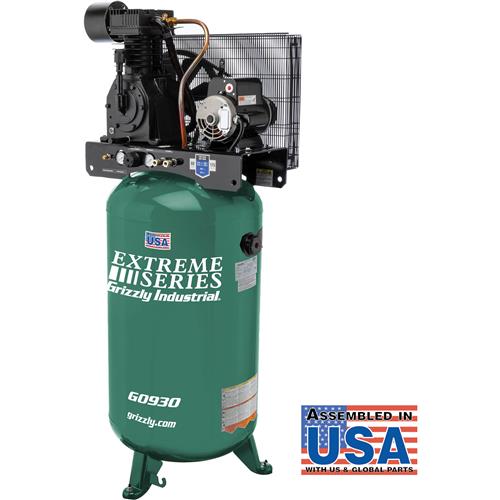

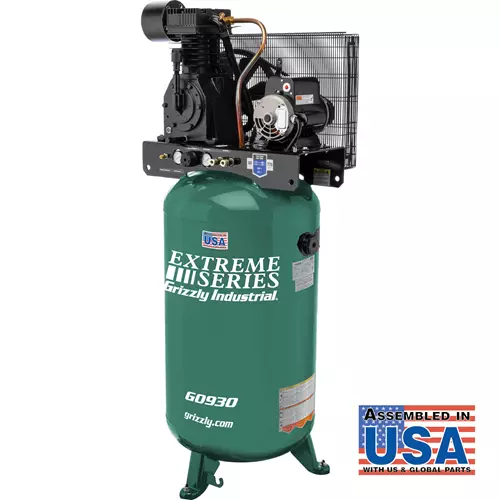

Grizzly PRO G0930 - 80-Gallon 5 HP Extreme Series Air Compressor
G0930 80-Gallon 5.0 HP Extreme Series Air Compressor
An 80-gallon compressor offering high-output performance for maximum air requirements.
The Grizzly PRO® G0930 80-Gallon 5.0 HP Extreme Series Air Compressor is for commercial and industrial use and operates with a maximum pressure of 175 PSI. This compressor delivers 17.5 CFM at 175 PSI and 17.5 CFM at 100 PSI.
Providing more complete motor overload protection than a magnetic starter which senses current, the motor senses both temperature and current. A wired-formed belt guard provides more efficient cooling to keep the unit from overheating.
The 80-gallon vertical air tank has been ASME certified to meet safety and quality standards. The two-stage cast-iron oil-lubricated pump operates at high pressure providing increased volume when you need it. A petcock on the bottom of the tank allows moisture to drain when opened.
All controls are housed within the compressor mounting deck preventing unnecessary repairs. These controls include a pressure switch, two quick connect fittings, a tank pressure gauge, a regulated pressure gauge and an air pressure regulator. You can check the level of oil in the pump with the sight glass.
Like all Grizzly air compressors, the G0930 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The Technical Documentation manual is packed with useful information on how to assemble and maintain your air compressor pump.
The Grizzly Technical Support Teams are U.S. based. Parts for the air compressor are available by calling Mat Industries at (888) 895-4549.
- Motor: 5.0 HP, 230V, single-phase, 24A
- Airflow capacity: 17.5 CFM at 175 PSI and 17.5 CFM at 100 PSI
- Maximum air pressure: 175 PSI
- Approximate shipping weight: 424 lbs.
- Large oil level sight glass
- Two-stage cast-iron high-flow pump is oil-lubricated
- Wired-formed belt guard for more efficient cooling
- Made and assembled in the USA with global parts
- ASME certified 80-gallon tank
