G9710 Quick-Change Tool Post Set - 14" to 20" Swing

Speed up your lathe operations with a quick-change tool post set.

The G9710 Quick-Change Tool Post Set allows you to enjoy the convenience of easy tool set-up on lathes with swing between 14" and 20".

The set has been case-hardened and coated with a black oxide finish for long life and repeatable accuracy.

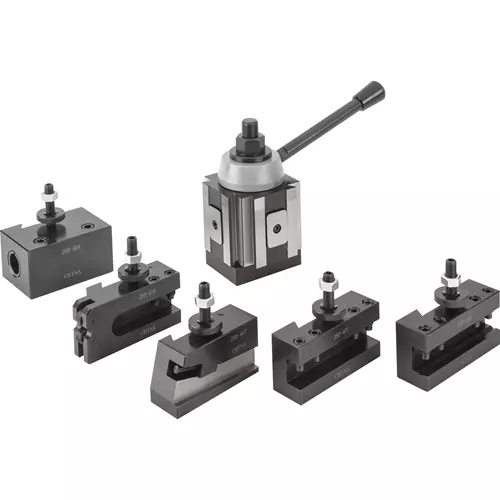

This tool post features a piston type mechanism and comes with five tool holders. These holders include:

• Turning holder
• Knurling/turning holder
• Parting tool holder
• Boring bar holder
• Turning/boring holder

All milled surfaces are hardened and precision ground for repeatable accuracy.

The turning holders accept 3/4"–1" tool bits.

The parting tool holders accepts 7/8" bevel or T-cut parting tools.

The boring bar holder accepts 1" boring bars.

The turning/boring holder accepts 3/4" shank and 3/4"–1" tool bits.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the tool post set may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Series: 400
• Lathe size: 14" to 20" Swing

Note: Each set comes with a blank T-nut which requires machining to fit your lathe.
