Grizzly T10167 - Quick Change Tool Post Set - Mini
T10167 Mini Quick-Change Tool Post Set
This is a Quick-Change Tool Post Set for Mini Lathes with a maximum tool bit size of 1/2".
The T10166 17-Piece Quick Change Tool Post Set is case-hardened and coated with a black oxide finish for long life and repeatable accuracy.
Having this set mounted to your mini lathe minimizes downtime looking for the accessories you need and keeps you turning out production work.
Before mounting the tool post body into the T-slot of your compound rest, you will need to machine the plate underneath the tool post body to match the dimensions of the T-slot.
Like all Grizzly tool post sets, the T10167 comes with a 1-year warranty which covers parts and assures the set is free from factory defects.
The T10167 instruction sheet was written by our U.S. based Technical Documentation Department and is packed with useful information on how to assemble and maintain your set.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the tool post set may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- For lathe swing: 7"–11"
- Maximum tool bit size: 1/2"
- Maximum tool post size: 10mm

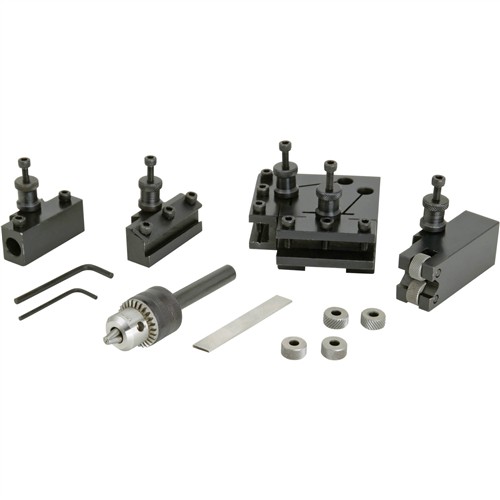

- Number of holders: 5
- 3/8" drill chuck with 1/2" shank
- Turning holder
- Turning/boring holder
- Parting tool holder
- 1/2" boring bar/drill chuck holder
- Knurling tool
- Parting tool
- Two fine, two medium, and two coarse knurling wheels
Note: Each set requires the hole to be machined or drilled to fit your specific lathe.
