T33989 Taper/Straight Line Jig for Table Saws
Cut perfect tapers with this user-friendly table saw accessory.
Cutting accurate and consistent tapers for high quality furniture requires a precision-made jig. This Taper/Straight Line Jig provides the support every furnituremaker needs to achieve top results with less effort!

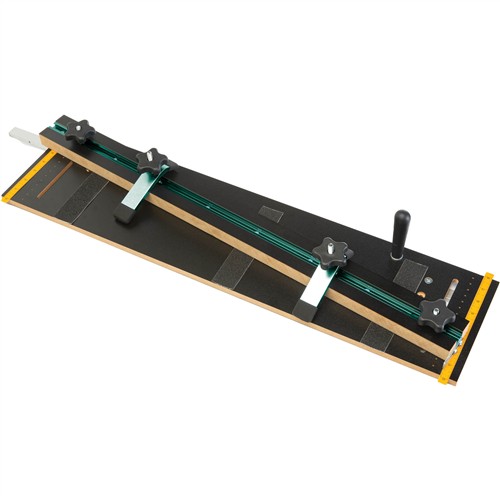

This jig features a sled that slides in your saw’s miter slot, with an adjustable 36" taper guide and two workpiece hold-down clamps that secure your stock while making your cut. You can also use this jig for zeroing out the guide to cut parallel straight lines. This is helpful if you want to rip live-edge pieces which can be difficult, if not impossible, to do without a jig.
With additional convenient features such as indexing marks to assist with workpiece alignment and an ergonomic handle for comfortable operation, this woodworking jig is the perfect companion to your powerful and efficient Grizzly table saw.
SPECIFICATIONS:
- Overall dimensions: 10-1/4" W x 36" D x 4-3/4" H
- Required table saw dimensions: 3/4" W x 3/8" D
- Blade to right miter slot minimum distance: 3-3/4"
- Maximum stock thickness: 2"
- Maximum stock width: 4-1/2"
- Fence dimensions: 32" x 2-1/2" x 1"
- Product weight: 6 lbs.
FEATURES:
- HOLD-DOWN CLAMPS: Two hold-down clamps with non-marring rubber caps secure your material to the sled while making your cut.
- 36" TAPER GUIDE: This adjustable guide provides plenty of length to support long tapers for just about any project.
- INDEXING SCALES: Scales at each end of the jig allow you to set up your taper cuts quickly and accurately.
- ERGONOMIC HANDLE: Allows for smooth push-through movement and ongoing jig use in high-production environments.
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
Parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
