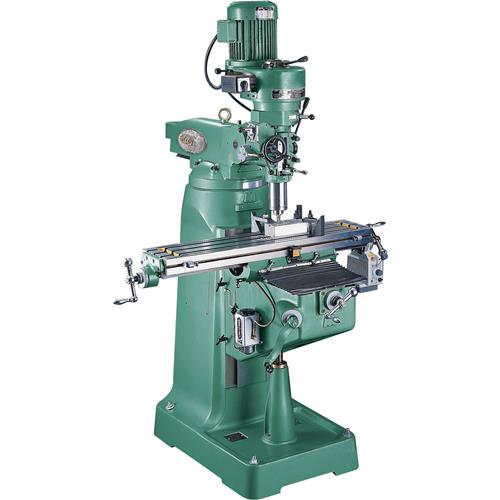

Grizzly G4027 - Vertical Mill (2 HP, 1 PH., 9" x 42" Table)

Our most affordable production milling machine has many of the same features that are included with more expensive machines. This top-selling machine features a three speed power down feed, 3.35" quill with 5" throw, turret head, power feed x-axis and massive castings for optimum stability and accuracy.

Features:

• R-8 spindle
• Auto down feed
• Meehanite cast iron
• Centralized lubrication system
• Power down feed
• Auto stop with micro-adjustable setting
• Chrome plated precision ground quill
• Adjustable micrometer quill depth stop
• Multiple saddle, knee, table and ram locks for high rigidity
• Table & cross feed lead screw has double nuts to minimize backlash
• Hardened & ground column and knee slideways
• Table surface hardened and ground
• Heavy-duty saddle supports full width of table
• 2 HP, single phase, TEFC 1725 RPM motor, 115/230V, 28/14 amps
• Comes with longitudinal power feed
• Includes: way chip protectors, drawbar and tool box

Specifications:

• Spindle taper: R-8
• Spindle Travel: 5"
• Table size: 9" x 42"
• Table travel (longitudinal): 26"
• Table travel (cross): 12-1/2"
• Max. dist. spindle to table: 17-1/2"
• Max. dist. spindle to column: 19-1/2"
• Knee travel: 16"
• Head tilt: 45° both ways
• Head swivel: 90° both ways
• Quill feeds/spindle rev.: .0015", .003", .006"
• T-slots: 3 on 2-1/2" centers, 1/2" studs
• Range of speeds (RPM): 80, 135, 210, 325, 660, 1100, 1750 and 2720
• Motor: 2 HP, Single Phase
• Shipping weight approx.: 2020 lbs.
