Parts for H0626 - Oscillating Drill Press

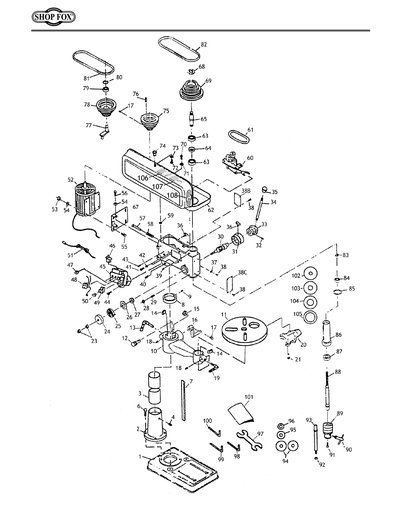

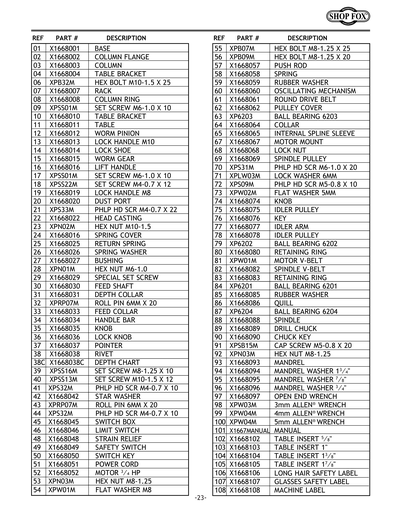

Part Diagram for H0626
Part Diagram for H0626
Part Diagram for H0626
Part Diagram for H0626

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
N/A
2
COLUMN W/FLANGE
Price
N/A
3
COLUMN W/FLANGE
Price
N/A
4
TABLE BRACKET
Price
N/A
5
COLUMN & COLUMN FLANGE ASSEMBLY
Price
N/A
6
HEX BOLT M10-1.5 X 25
Price
N/A
7
RACK V1.08.00
Price
N/A
8
COLUMN RING
Price
N/A
9
SET SCREW M6-1 X 10
Price
N/A
10
*DISCD*TABLE BRACKET V1.08.00
Price
N/A
10A
GEARED TABLE BRACKET V2.02.04
Price
N/A
10A-1
COLUMN SUPPORT ARM V1.09.02
Price
N/A
10A-2
COLUMN/TABLE BRACKET ASSY V2.02.04
Price
N/A
11
*DISCD*TABLE V1.08.00
Price
N/A
11A
TABLE V2.05.03
Price
N/A
12
WORM PINION
Price
N/A
13
CLAMP BOLT M12-1.75 X 50
Price
N/A
14
LOCK SHOE
Price
N/A
15
WORM GEAR
Price
N/A
16
LIFT HANDLE
Price
N/A
17
SET SCREW M6-1 X 10
Price
N/A
18
SET SCREW M4-.7 X 12
Price
N/A
19
LOCK HANDLE M10-1.5
Price
N/A
20
DUST PORT
Price
N/A
21
PHLP HD SCR M4-.7 X 22
Price
N/A
22
HEAD CASTING
Price
N/A
22A
*DISCD*ENTIRE HEAD ASSEMBLY
Price
N/A
23
HEX NUT M10-1.5
Price
N/A
24
SPRING COVER
Price
N/A
25
RETURN SPRING
Price
N/A
26
SPRING WASHER
Price
N/A
27
BUSHING
Price
N/A
28
HEX NUT M6-1
Price
N/A
29
SET SCREW M8-1.25 X 25 CONE-PT
Price
N/A
30
FEED SHAFT
Price
N/A
31
DEPTH COLLAR V1.08.00
Price
N/A
31A
DEPTH STOP ROD V2.04.02
Price
N/A
31A-1
UPPER DEPTH STOP ROD BRACKET
Price
N/A
31A-2
JAM NUT
Price
N/A
31A-3
LOWER DEPTH STOP ROD BRACKET
Price
N/A
31A-4
SCALE FOR DEPTH STOP ROD V2.04.02
Price
N/A
31A-5
BOTTOM OUT FOR DEPTH STOP ROD
Price
N/A
31A-6
DEPTH STOP MOUNT
Price
N/A
32
ROLL PIN 6 X 20
Price
N/A
33
FEED COLLAR
Price
N/A
34
HANDLE BAR M10-1.5
Price
N/A
35
KNOB M10-1.5
Price
N/A
36
LOCK KNOB M8-1.25
Price
N/A
37
POINTER
Price
N/A
38
RIVET
Price
N/A
39
SET SCREW M8-1.25 X 10
Price
N/A
40
SET SCREW M10-1.5 X 12
Price
N/A
41
PHLP HD SCR M8-1.25 X 25
Price
N/A
42
EXT TOOTH WASHER 4MM
Price
N/A
43
ROLL PIN 6 X 20
Price
N/A
44
PHLP HD SCR M4-.7 X 10
Price
N/A
45
SWITCH BOX
Price
N/A
45V2
SWITCH BOX
Price
N/A
46
LIMIT SWITCH
Price
N/A
47
STRAIN RELIEF SNAP-ON V1.02.01
Price
N/A
47V2
STRAIN RELIEF THREADED V2.08.09
Price
N/A
48
*DISCD*OUTLET
Price
N/A
49
Paddle Switch 125V/250V
Price
N/A
50
PADDLE SWITCH KEY
Price
N/A
51
POWER CORD 18G 3W 108" 5-15P
Price
N/A
52
MOTOR 3/4HP 110V 1-PH
Price
N/A
52-1
MOTOR FAN
Price
N/A
52-2
S CAPACITOR 200M 125V 1-1/2 X 2-1/4
Price
N/A
52-3
S CAPACITOR 200M 125V 1-1/2 X 2-1/4
Price
N/A
52-4
MOTOR FAN COVER
Price
N/A
52-5
WIRING HARNESS
Price
N/A
52-6
WIRE BOX COVER
Price
N/A
52-7
CAPACITOR COVER
Price
N/A
52-8
CENTRIFUGAL SWITCH
Price
N/A
53
HEX NUT M8-1.25
Price
N/A
54
FLAT WASHER 8MM
Price
N/A
55
HEX BOLT M8-1.25 X 25
Price
N/A
56
HEX BOLT M8-1.25 X 20
Price
N/A
57
PUSH ROD
Price
N/A
58
SPRING
Price
N/A
59
THRUST WASHER 8MM RUBBER
Price
N/A
60
OSCILLATING MECHANISM
Price
N/A
60-1
PLASTIC GEAR
Price
N/A
60-2
OSCILLATING MECH. ARM
Price
N/A
60-3
PULLEY
Price
N/A
60-4
WORM GEAR
Price
N/A
60-5
DRIVE ARM
Price
N/A
60-6
BODY
Price
N/A
60-7
OSC. MECH ARM BOLT M6-1 X 20
Price
N/A
60-8
LOWER SHOULDER CAP SCREW
Price
N/A
60-9
CAP SCREW M5-.8 X 15
Price
N/A
61
OSCILLATOR BELT
Price
N/A
62
PULLEY COVER
Price
N/A
63
BALL BEARING 6203-2RS
Price
N/A
64
COLLAR
Price
N/A
65
INTERNAL SPLINE SLEEVE
Price
N/A
66
SPLINE SLEEVE ASSEMBLY
Price
N/A
67
MOTOR MOUNT
Price
N/A
68
LOCK NUT M17-1.25 LH
Price
N/A
69
SPINDLE PULLEY
Price
N/A
70
PHLP HD SCR M6-1 X 35
Price
N/A
71
LOCK WASHER 6MM
Price
N/A
72
PHLP HD SCR M5-.8 X 10
Price
N/A
73
FLAT WASHER 5MM
Price
N/A
74
KNOB
Price
N/A
75
MOTOR PULLEY
Price
N/A
76
KEY 5 X 5 X 12
Price
N/A
77
IDLER ARM
Price
N/A
78
IDLER PULLEY
Price
N/A
79
BALL BEARING 6202-2RS
Price
N/A
80
INT RETAINING RING 36MM
Price
N/A
81
V-BELT M20 3L200
Price
N/A
82
V-BELT M26 3L260
Price
N/A
83
EXT RETAINING RING 11MM
Price
N/A
84
BALL BEARING 6201-2RS
Price
N/A
85
THRUST WASHER 38MM RUBBER
Price
N/A
86
QUILL V1.08.00
Price
N/A
86A
QUILL ASSEMBLY V3.06.01
Price
N/A
86B
CHUCK QUILL ASSY JT33 V2.01.05
Price
N/A
87
BALL BEARING 6202ZZ
Price
N/A
88
SPINDLE V1.08.00
Price
N/A
88A
CHUCK SPINDLE JT33 V2.01.05
Price
N/A
89
DRILL CHUCK V1.08.00
Price
N/A
89A
CHUCK W/KEY
Price
N/A
90
CHUCK KEY
Price
N/A
91
CAP SCREW M5-.8 X 20
Price
N/A
92
HEX NUT M8-1.25
Price
N/A
93
MANDREL
Price
N/A
94
MANDREL WASHER 5/8" X 1-3/4"
Price
N/A
95
FLAT WASHER 3/8
Price
N/A
96
MANDREL WASHER 3/8" X 5/8"
Price
N/A
96-1
*DISCD*MANDREL SPACER 3/8" ALUMINUM
Price
N/A
97
WRENCH 13 X 14MM OPEN-ENDS
Price
N/A
98
HEX WRENCH 3MM
Price
N/A
99
HEX WRENCH 4MM
Price
N/A
100
HEX WRENCH 5MM
Price
N/A
101
MANUAL FOR H0626 2000
Price
N/A
102
TABLE INSERT 5/8" I.D.
Price
N/A
103
TABLE INSERT 1" I.D.
Price
N/A
104
TABLE INSERT 1-3/8" I.D.
Price
N/A
105
TABLE INSERT 1-7/8" I.D.
Price
N/A
106
LONG HAIR SAFETY LABEL
Price
N/A
107
GLASSES SAFETY LABEL
Price
N/A
108
SHOP FOX LABEL
Price
N/A
109
CARDBOARD BOX FOR W1668 BOX 1 OF 2
Price
N/A
111A
FLAT WASHER
Price
N/A
111B
TABLE BRACKET PIN
Price
N/A
115
FLAT WASHER 5MM
Price
N/A
116
CAP SCREW M5-.8 X 12
Price
N/A
118
CAP SCREW M8-1.25 X 20
Price
N/A
138
SET SCREW M6-1 X 10
Price
N/A
139
FLAT WASHER 8MM
Price
N/A
140
EXT RETAINING RING 8MM
Price
N/A
141
*DISCD*DRUM 2" X 4 1/4"
Price
N/A
142
*DISCD*DRUM 1 1/2" X 4 1/4"
Price
N/A
143
*DISCD*DRUM 1" X 4 1/4"
Price
N/A
144
TRAVEL INDICATOR PLATE
Price
N/A
145
DATA LABEL
Price
N/A
148
HEX BOLT M8-1.25 X 40
Price
N/A
151
HEX NUT M6-1
Price
N/A
152
WRENCH 7 X 24MM COMBO
Price
N/A
157
EXT RETAINING RING 15MM
Price
N/A
MANUAL
MANUAL FOR H0626 2000
Price
$14.65
