Parts for H0771 - Folding Side Garden Wagon

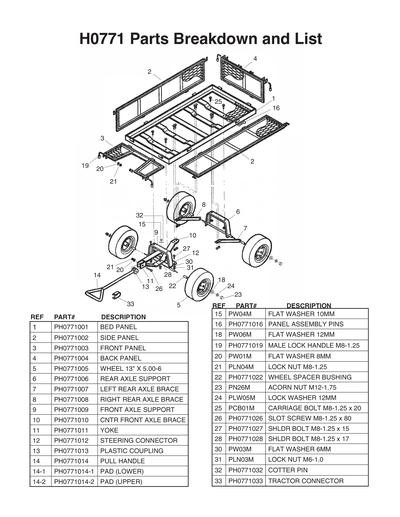

Part Diagram for H0771
Part Diagram for H0771

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BED PANEL
Price
$29.90
2
*DISCD*SIDE PANEL
Price
$11.25
3
*DISCD*FRONT PANEL
Item is no longer available
Price
N/A
4
*DISCD*BACK PANEL
Item is no longer available
Price
N/A
5
*DISCD*WHEEL 13" X 5.00-6 HUB 1-3/4"L V1
Item is no longer available
Price
N/A
5A
*DISCD*WHEEL 13" X 5.00-6 HUB 2-1/4"L V2
Item is no longer available
Price
N/A
5V3
*DISCD*WHEEL 13" X 5.00-6 HUB 2-1/4"L
Item is no longer available
Price
N/A
6
REAR AXLE SUPPORT
Item is no longer available
Price
N/A
7
AXLE BRACE LEFT REAR
Price
$1.49
8
AXLE BRACE RIGHT REAR
Price
$1.49
9
*DISCD*FRONT AXLE SUPPORT
Item is no longer available
Price
N/A
9-1
*DISCD*AXLE WHEEL SHAFT 2-7/8"L RIGHT
Item is no longer available
Price
N/A
9-1V2
AXLE WHEEL SHAFT 3-15/16" RIGHT V2.02.09
Item is no longer available
Price
N/A
9-2
*DISCD*AXLE WHEEL SHAFT LEFT 2-7/8"L
Price
$2.30
9-2V2
AXLE WHEEL SHAFT LEFT 3-15/16"L V2.02.09
Price
$2.30
10
*DISCD*CENTER FRONT AXLE BRACE
Price
$1.49
11
*DISCD*YOKE
Item is no longer available
Price
N/A
12
*DISCD*STEERING CONNECTOR
Item is no longer available
Price
N/A
13
*DISCD*PLASTIC COUPLING
Item is no longer available
Price
N/A
14
*DISCD*PULL HANDLE
Price
$6.45
14-1
PAD FOR HANDLE LOWER
Price
$2.60
14-2
*DISCD*PAD FOR HANDLE UPPER
Price
$1.49
15
FLAT WASHER 10MM
Price
N/A
16
*DISCD*PANEL ASSEMBLY PINS
Price
$1.49
17
*DISCD*NUT W/LOCK INSERT
Price
$1.49
18
FLAT WASHER 12MM
Price
N/A
19
*DISCD*MALE LOCK HANDLE M8-1.25
Item is no longer available
Price
N/A
20
FLAT WASHER 8MM
Price
N/A
21
LOCK NUT M8-1.25
Price
N/A
22
WHEEL SPACER BUSHING
Item is no longer available
Price
N/A
23
ACORN NUT M12-1.75
Price
N/A
24
LOCK WASHER 12MM
Price
N/A
25
HEX BOLT M6-1 X 8
Price
N/A
26
*DISCD*SLOT SCREW M8-1.25 X 80
Item is no longer available
Price
N/A
27
HEX BOLT M8-1.25 X 18
Price
N/A
28
HEX BOLT M8-1.25 X 18
Price
N/A
30
FLAT WASHER 6MM
Price
N/A
31
LOCK NUT M6-1
Price
N/A
32
COTTER PIN
Price
$1.49
33
*DISCD*TRACTOR CONNECTOR
Price
$1.49
34
HARDWARE BAG
Price
$7.80
