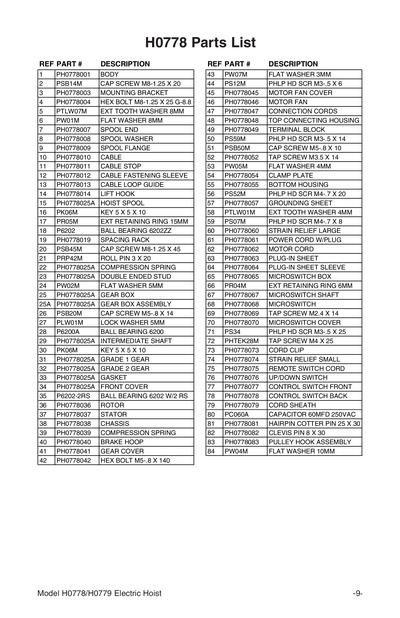

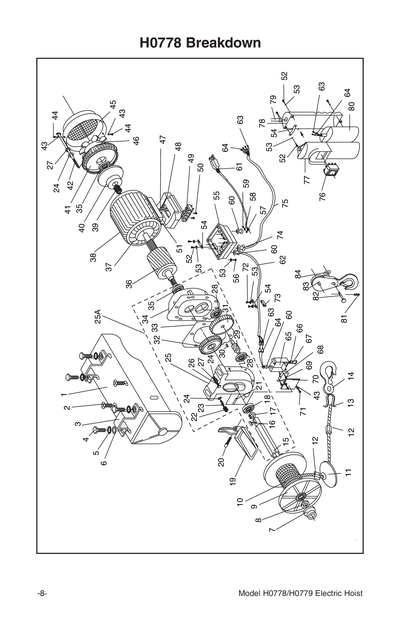

Parts for H0778 Electric Hoist - 3/4 HP 110V

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BODY
Item is no longer available
Price
N/A
2
CAP SCREW M8-1.25 X 20
Price
N/A
3
*DISCD*MOUNTING BRACKET
Price
N/A
4
*DISCD*HEX BOLT M8-1.25 X 25 G-8.8
5
EXT TOOTH WASHER 8MM
Price
N/A
6
Now: PW01M
FLAT WASHER 8MM
Price
N/A
7
*DISCD*SPOOL END
Item is no longer available
Price
N/A
8
*DISCD*SPOOL WASHER
Item is no longer available
Price
N/A
9
*DISCD*SPOOL FLANGE
Item is no longer available
Price
N/A
10
*DISCD*CABLE
Item is no longer available
Price
N/A
11
*DISCD*CABLE STOP
12
*DISCD*CABLE FASTENING SLEEVE
13
*DISCD*CABLE LOOP GUIDE
14
*DISCD*LIFT HOOK
15
*DISCD*GEAR BOX ASSY
Price
N/A
16
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
17
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
18
BALL BEARING 6202ZZ
Price
N/A
19
*DISCD*SPACING RACK
20
CAP SCREW M8-1.25 X 45
Price
N/A
21
ROLL PIN 3 X 20
Price
N/A
22
*DISCD*GEAR BOX ASSY
Price
N/A
23
*DISCD*GEAR BOX ASSY
Price
N/A
24
Now: PW02M
FLAT WASHER 5MM
Price
N/A
25
*DISCD*GEAR BOX
Item is no longer available
Price
N/A
25A
*DISCD*GEAR BOX ASSY
26
CAP SCREW M5-.8 X 14
Price
N/A
27
LOCK WASHER 5MM
Price
N/A
28
BALL BEARING 6200-OPEN
Price
N/A
29
*DISCD*GEAR BOX ASSY
Price
N/A
30
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
31
*DISCD*GEAR BOX ASSY
Price
N/A
32
*DISCD*GEAR BOX ASSY
Price
N/A
33
*DISCD*GEAR BOX ASSY
Price
N/A
34
*DISCD*GEAR BOX ASSY
Price
N/A
35
BALL BEARING 6202-2RS
Price
N/A
36
*DISCD*ROTOR
Item is no longer available
Price
N/A
37
*DISCD*STATOR
Item is no longer available
Price
N/A
38
*DISCD*CHASSIS
Item is no longer available
Price
N/A
39
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
40
*DISCD*BRAKE HOOP
Item is no longer available
Price
N/A
41
*DISCD*GEAR COVER
Item is no longer available
Price
N/A
42
*DISCD*HEX BOLT M5-.8 X 140
Item is no longer available
Price
N/A
43
Now: PW07M
FLAT WASHER 3MM
Price
N/A
44
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
45
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
46
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
47
*DISCD*CONNECTION CORDS
Item is no longer available
Price
N/A
48
*DISCD*TOP CONNECTING HOUSING
Item is no longer available
Price
N/A
49
*DISCD*TERMINAL BLOCK
Item is no longer available
Price
N/A
50
Now: PS59M
PHLP HD SCR M3-.5 X 14
Price
N/A
51
CAP SCREW M5-.8 X 10
Price
N/A
52
*DISCD*TAP SCREW M3.5 X 14
Item is no longer available
Price
N/A
53
Now: PW05M
FLAT WASHER 4MM
Price
N/A
54
*DISCD*CLAMP PLATE
55
*DISCD*BOTTOM HOUSING
Item is no longer available
Price
N/A
56
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
57
*DISCD*GROUNDING SHEET
Item is no longer available
Price
N/A
58
EXT TOOTH WASHER 4MM
Price
N/A
59
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
60
*DISCD*STRAIN RELIEF LARGE
Item is no longer available
Price
N/A
61
*DISCD*POWER CORD W/PLUG
Item is no longer available
Price
N/A
62
*DISCD*MOTOR CORD
63
*DISCD*PLUG-IN SHEET
64
*DISCD*PLUG-IN SHEET SLEEVE
65
*DISCD*MICROSWITCH BOX
Item is no longer available
Price
N/A
66
Now: PR04M
EXT RETAINING RING 6MM
Price
N/A
67
*DISCD*MICROSWITCH SHAFT
68
*DISCD*MICROSWITCH
69
TAP SCREW M4 X 25
Price
N/A
70
*DISCD*MICRO SWITCH COVER
71
Now: PS34
PHLP HD SCR M3-.5 X 25
Price
N/A
72
*DISCD*CYLINDER PIN
Item is no longer available
Price
N/A
73
*DISCD*CORD CLIP
74
*DISCD*STRAIN RELIEF SMALL
75
*DISCD*REMOTE SWITCH CORD
Item is no longer available
Price
N/A
76
*DISCD*UP/DOWN SWITCH
77
*DISCD*CONTROL SWITCH FRONT
Item is no longer available
Price
N/A
78
*DISCD*CONTROL SWITCH BACK
Item is no longer available
Price
N/A
79
*DISCD*CORD SHEATH
Item is no longer available
Price
N/A
80
*DISCD*S CAPACITOR 60M 250V 1-3/4" X 3"
81
*DISCD*HAIRPIN COTTER PIN 25 X 30
82
*DISCD*CLEVIS PIN 8 X 30
83
*DISCD*PULLEY HOOK ASSEMBLY
83-1
*DISCD*PULLEY
83-2
*DISCD*CYLINDER PIN
84
Now: PW04M
FLAT WASHER 10MM
Price
N/A
MAN
MANUAL FOR H0778 06/08
Item is no longer available
Price
N/A
