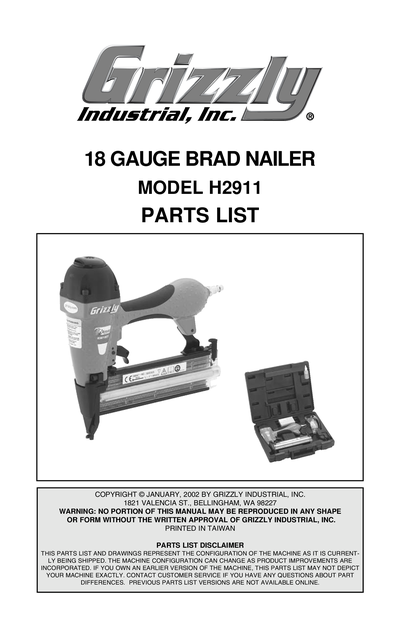

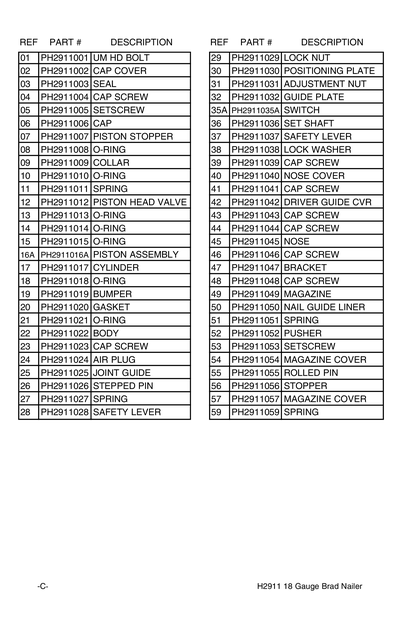

Parts for H2911 Pro Nailer Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*UM HD BOLT M5 X 12
Price
N/A
2
*DISCD*CAP COVER
Price
N/A
3
*DISCD*SEAL
Price
N/A
4
CAP SCREW M5-.8 X 20
Price
N/A
5
SET SCREW M4-.7 X 8
Price
N/A
6
*DISCD*CAP
Price
N/A
7
*DISCD*PISTON STOPPER
Price
N/A
8
*DISCD*O-RING
Price
N/A
9
*DISCD*COLLAR
Price
N/A
10
O-RING 39.7 X 3.5 P40
Price
N/A
11
*DISCD*SPRING 2.6 X 14
Price
N/A
12
*DISCD*PISTON HEAD VALVE
Price
N/A
13
*DISCD*STOPPER
14
O-RING 31.7 X 3.5 P32
Price
N/A
15
*DISCD*O-RING 28 X 3.5
Price
N/A
16A
*DISCD*PISTON ASSEMBLY
17
*DISCD*CYLINDER
Price
N/A
18
O-RING 38 X 2.5
Price
N/A
19
*DISCD*BUMPER
Price
N/A
20
*DISCD*GASKET
Price
N/A
21
*DISCD*E-CLIP
Price
N/A
22
*DISCD*GUN BODY
Price
N/A
23
CAP SCREW M5-.8 X 16
Price
N/A
24
*DISCD*AIR PLUG
Price
N/A
25
*DISCD*JOINT GUIDE
Price
N/A
26
*DISCD*STEPPED PIN
Price
N/A
27
*DISCD*SPRING .5 X 22
Price
N/A
28
*DISCD*SAFETY LEVER
Price
N/A
29
LOCK NUT M4-.7
Price
N/A
30
*DISCD*POSITIONING PLATE
Price
N/A
31
*DISCD*ADJUSTMENT NUT
Price
N/A
32
*DISCD*GUIDE PLATE
Price
N/A
35A
*DISCD*BUMP FIRE SWITCH
36
*DISCD*SET SHAFT
Price
N/A
37
*DISCD*SAFETY LEVER
Price
N/A
38
LOCK WASHER 3MM
Price
N/A
39
CAP SCREW M3-.5 X 6
Price
N/A
40
*DISCD*RUBBER PAD
Price
N/A
41
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
42
*DISCD*DRIVER GUIDE COVER
Price
N/A
43
CAP SCREW M5-.8 X 17
Price
N/A
44
CAP SCREW M4-.7 X 12
Price
N/A
45
*DISCD*NOSE
Item is no longer available
Price
N/A
46
CAP SCREW M4-.7 X 8
Price
N/A
47
*DISCD*BRACKET
Price
N/A
48
CAP SCREW M5-.8 X 6
Price
N/A
49
*DISCD*MAGAZINE
Item is no longer available
Price
N/A
50
*DISCD*NAIL GUIDE LINER
Price
N/A
51
*DISCD*SPRING .45 X 265
Price
N/A
52
*DISCD*PUSHER
Price
N/A
53
SET SCREW M4-.7 X 16
Price
N/A
54
*DISCD*MAGAZINE COVER
Price
N/A
55
*DISCD*ROLLED PIN
Price
N/A
56
*DISCD*STOPPER
Price
N/A
57
*DISCD*MAGAZINE COVER
Price
N/A
59
*DISCD*SPRING
MANUAL
*DISCD*MANUAL FOR H2911
Item is no longer available
Price
N/A
