Parts for H2933 24" 15 HP 3-Phase Double Head Wide-Belt Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

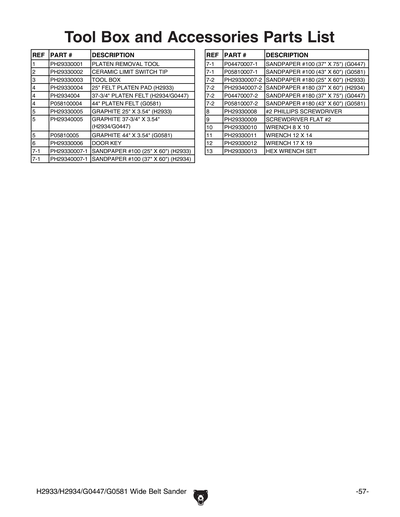

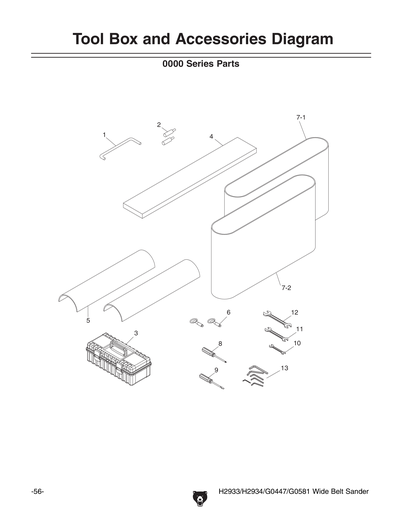

1
*DISCD*FELT PLATEN REMOVAL TOOL
Item is no longer available
Price
N/A
2
LIMIT SWITCH CERAMIC TIP
Price
N/A
3
TOOL BOX
4
FELT PLATEN PAD 25"
Price
N/A
5
GRAPHITE 25" X 3.54"
Price
N/A
6
DOOR HANDLE
7
SANDING BELT #100 25 X 60"
Item is no longer available
Price
N/A
7-1
SANDING BELT #180 25 X 60"
Item is no longer available
Price
N/A
7-2
SANDING BELT #180
Item is no longer available
Price
N/A
8
PHLP HD SCREWDRIVER
Item is no longer available
Price
N/A
9
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
10
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
13
HEX WRENCH SET

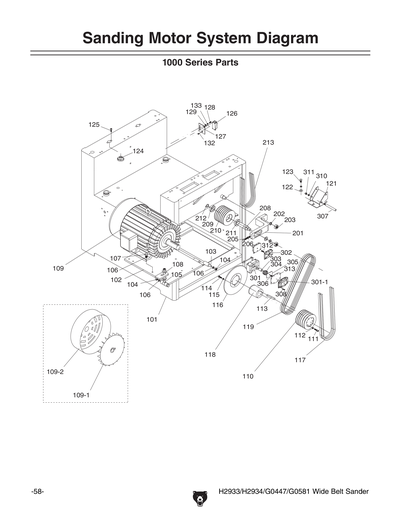

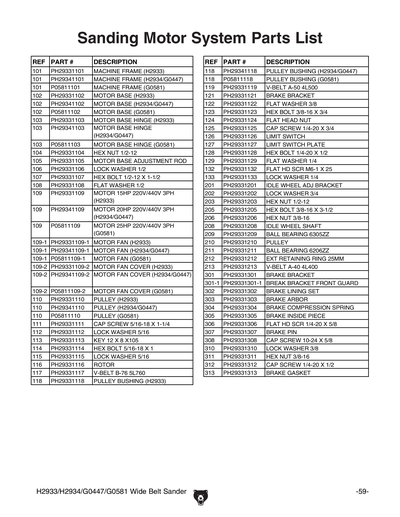

1101
MACHINE FRAME
Item is no longer available
Price
N/A
1102
MOTOR BASE
Item is no longer available
Price
N/A
1103
MOTOR BASE HINGE
1104
Now: PN06
HEX NUT 1/2-12
Price
N/A
1105
MOTOR BASE ADJUSTMENT ROD
1106
Now: PLW07
LOCK WASHER 1/2
Price
N/A
1107
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
1108
Now: PW01
FLAT WASHER 1/2
Price
N/A
1109
MOTOR 15HP 220V/440V 3HP
1109-1
MOTOR FAN
Item is no longer available
Price
N/A
1109-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
1110
PULLEY
Item is no longer available
Price
N/A
1111
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1112
Now: PLW01
LOCK WASHER 5/16
Price
N/A
1113
KEY 8 X 12 X 105
1114
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
1115
Now: PLW01
LOCK WASHER 5/16
Price
N/A
1116
DISC BRAKE
Price
N/A
1117
Now: PVB76
V-BELT B76
Price
N/A
1118
PULLEY BUSHING
Item is no longer available
Price
N/A
1119
Now: PVA50
V-BELT A50
Price
N/A
1121
BRAKE BRACKET
1122
Now: PW02
FLAT WASHER 3/8
Price
N/A
1123
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
1124
FLAT HEAD NUT 5/8 X 11
1125
CAP SCREW 1/4-20 X 3/4
Price
N/A
1126
LIMIT SWITCH
1127
LIMIT SWITCH PLATE
1128
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
1129
Now: PW06
FLAT WASHER 1/4
Price
N/A
1132
FLAT HD SCR M6-1 X 25
Price
N/A
1133
Now: PLW02
LOCK WASHER 1/4
Price
N/A
1201
IDLE WHEEL ADJ BRACKET
1202
Now: PLW10
LOCK WASHER 3/4
Price
N/A
1203
Now: PN06
HEX NUT 1/2-12
Price
N/A
1204
Now: PW13
FLAT WASHER 3/4
Price
N/A
1205
Now: PB84
HEX BOLT 3/8-16 X 3-1/2
Price
N/A
1206
Now: PN08
HEX NUT 3/8-16
Price
N/A
1208
IDLE WHEEL SHAFT
1209
BALL BEARING 6305ZZ
Price
N/A
1210
PULLEY
1211
BALL BEARING 6206ZZ
Price
N/A
1212
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
1213
Now: PVA40
V-BELT A40
Price
N/A
1301
BRAKE BRACKET
1301-1
BREAK BRACKET FRONT GUARD
1302
BRAKE LINING SET
1302-1
BRAKE LINING
Item is no longer available
Price
N/A
1302-2
BRAKE LINING
Item is no longer available
Price
N/A
1303
BRAKE ARBOR
1304
BRAKE COMPRESSION SPRING
1305
BRAKE INSIDE PIECE
1306
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
1307
BRAKE PIN
Price
N/A
1308
CAP SCREW 10-24 X 5/8
Price
N/A
1310
Now: PLW04
LOCK WASHER 3/8
Price
N/A
1311
Now: PN08
HEX NUT 3/8-16
Price
N/A
1312
CAP SCREW 1/4-20 X 1/2
Price
N/A
1313
BRAKE GASKET

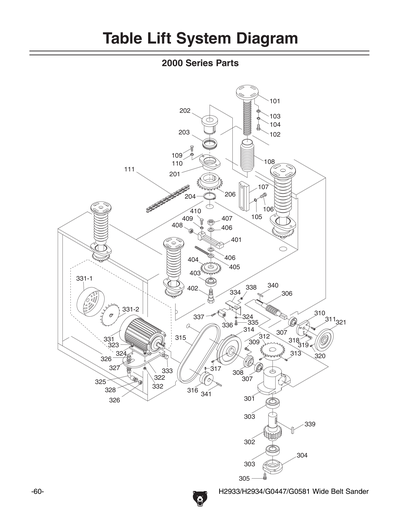

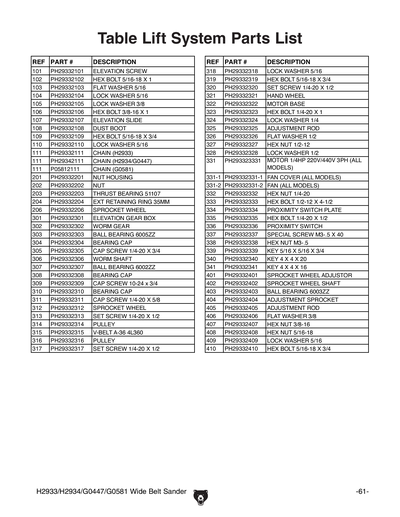

2101
ELEVATION SCREW 1 X 5 X 280
2102
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
2103
Now: PW07
FLAT WASHER 5/16
Price
N/A
2104
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2105
Now: PLW04
LOCK WASHER 3/8
Price
N/A
2106
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
2107
ELEVATION SLIDE
2108
DUST BOOT
2109
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
2110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2111
CHAIN
2201
NUT HOUSING
2202
SPROCKET SHAFT
Price
N/A
2203
THRUST BEARING 51107
Price
N/A
2204
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
2206
SPROCKET WHEEL
2301
ELEVATION GEAR BOX
2302
WORM GEAR
2303
BALL BEARING 6005ZZ
Price
N/A
2304
BEARING CAP
2305
CAP SCREW 1/4-20 X 3/4
Price
N/A
2306
WORM SHAFT
2307
BALL BEARING 6002ZZ
Price
N/A
2308
BEARING CAP
2309
CAP SCREW 10-24 X 3/4
Price
N/A
2310
BEARING CAP
2311
CAP SCREW 1/4-20 X 5/8
Price
N/A
2312
SPROCKET WHEEL
2313
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2314
PULLEY
2315
Now: PVA36
V-BELT A36
Price
N/A
2316
PULLEY
2317
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2318
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2319
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
2320
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2321
HAND WHEEL
2322
MOTOR BASE
2323
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
2324
Now: PLW02
LOCK WASHER 1/4
Price
N/A
2325
MOTOR BASE ADJUSTMENT ROD
2326
Now: PW01
FLAT WASHER 1/2
Price
N/A
2327
Now: PN06
HEX NUT 1/2-12
Price
N/A
2328
Now: PLW07
LOCK WASHER 1/2
Price
N/A
2331
MOTOR 1/4HP 220V/440V 3-PH
2331-1
MOTOR FAN COVER
2331-2
MOTOR FAN
2332
Now: PN05
HEX NUT 1/4-20
Price
N/A
2333
Now: PB89
HEX BOLT 1/2-12 X 4-1/2
Price
N/A
2334
PROXIMITY SWITCH FIXING PLATE
2335
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
2336
PROXIMITY SWITCH
2337
Now: PS97M
PHLP HD SCR M3-.5 X 34
Price
N/A
2338
Now: PN07M
HEX NUT M3-.5
Price
N/A
2339
Now: PK14
KEY 5/16 X 5/16 X 3/4
Price
N/A
2340
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
2341
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
2401
SPROCKET WHEEL ADJUSTOR
2402
SPROCKET SHAFT
Price
N/A
2403
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
2404
ADJUSTMENT SPROCKET WHEEL
2405
SPROCKET WHEEL ADJUSTMENT ROD
2406
Now: PW02
FLAT WASHER 3/8
Price
N/A
2407
Now: PN08
HEX NUT 3/8-16
Price
N/A
2408
Now: PN02
HEX NUT 5/16-18
Price
N/A
2409
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2410
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A

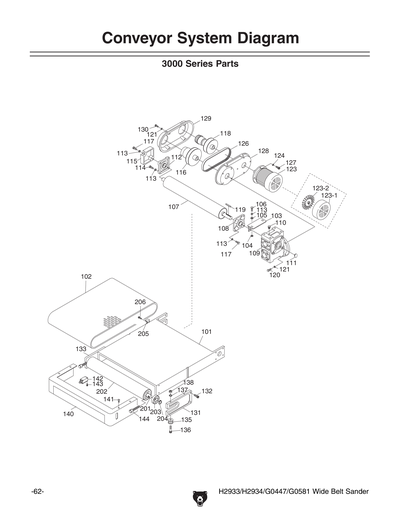

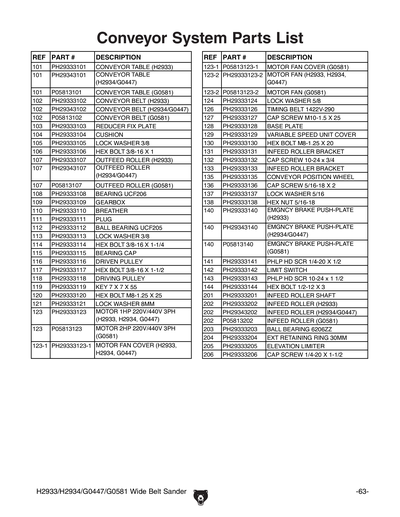

3101
CONVEYOR TABLE
3102
CONVEYOR BELT 2600 X 620
3103
REDUCER FIX PLATE
3104
CUSHION
3105
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3106
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
3107
OUTFEED ROLLER
Item is no longer available
Price
N/A
3108
BEARING UCF206
Price
N/A
3109
GEARBOX
3110
BREATHER
3111
PLUG
3112
MOUNTED BEARING UCF205
Price
N/A
3113
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3114
Now: PB95
HEX BOLT 1/2-12 X 3
Price
N/A
3115
BEARING CAP
3116
DRIVEN PULLEY
3117
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
3118
DRIVING PULLEY
Price
N/A
3119
Now: PK66M
KEY 7 X 7 X 55
Price
N/A
3120
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
3121
LOCK WASHER 8MM
Price
N/A
3123
FEED MOTOR 1HP 220V/440V 3-PH
Price
N/A
3123-1
MOTOR FAN COVER
Price
N/A
3123-2
MOTOR FAN
Price
N/A
3124
Now: PLW06
LOCK WASHER 5/8
Price
N/A
3126
TIMING BELT
Price
N/A
3127
CAP SCREW M10-1.5 X 25
Price
N/A
3128
BASE PLATE
3129
VARIABLE SPEED UNIT COVER
3130
SET SCREW M8-1.25 X 20
Price
N/A
3131
INFEED ROLLER BRACKET
3132
CAP SCREW 10-24 X 3/4
Price
N/A
3133
INFEED ROLLER BRACKET
3135
CONVEYOR BELT POSITIONING WHEEL
3136
CAP SCREW 5/16-18 X 2
Price
N/A
3137
Now: PLW01
LOCK WASHER 5/16
Price
N/A
3138
Now: PN02
HEX NUT 5/16-18
Price
N/A
3140
EMGNCY BRAKE PUSH-PLATE
3141
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
3142
LIMIT SWITCH
Price
N/A
3143
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
3144
Now: PB95
HEX BOLT 1/2-12 X 3
Price
N/A
3201
INFEED ROLLER SHAFT
3202
INFEED ROLLER
3203
BALL BEARING 6206-2RS
Price
N/A
3204
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
3205
ELEVATION ALUMINUM LIMITER
3206
CAP SCREW 1/4-20 X 1-1/2
Price
N/A

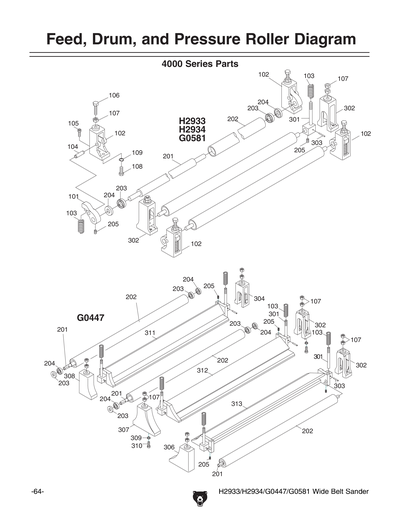

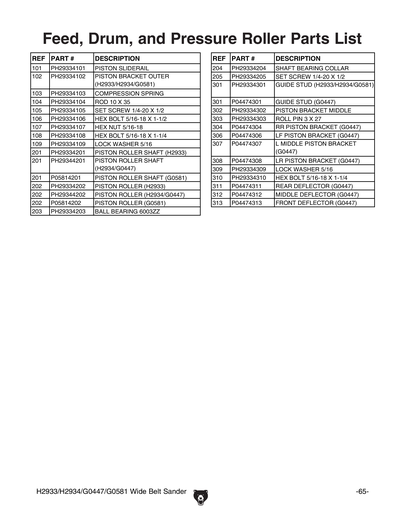

4101
PISTON SLIDE RAIL
4102
PISTON BRACKET OUTER
4103
SPRING 2 X 16 X 60
4104
PIN 10 X 35MM
4105
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
4106
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
4107
Now: PN02
HEX NUT 5/16-18
Price
N/A
4108
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
4109
Now: PLW01
LOCK WASHER 5/16
Price
N/A
4201
PISTON ROLLER SHAFT ASSY LONG
4201-1
PISTON ROLLER SHAFT LONG
4201A
PISTON ROLLER SHAFT ASSY SHORT MIDDLE
Item is no longer available
Price
N/A
4201A-1
PISTON ROLLER SHAFT SHORT
Item is no longer available
Price
N/A
4202
*DISCD*PISTON ROLLER
Item is no longer available
Price
N/A
4203
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
4204
SHAFT BEARING COLLAR
4205
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
4301
GUIDE STUD-SE 3/8-16 X 4-5/16 1-3/8
4302
PISTON BRACKET MIDDLE
4303
ROLL PIN 3 X 27
Price
N/A
4309
Now: PLW01
LOCK WASHER 5/16
Price
N/A
4310
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A

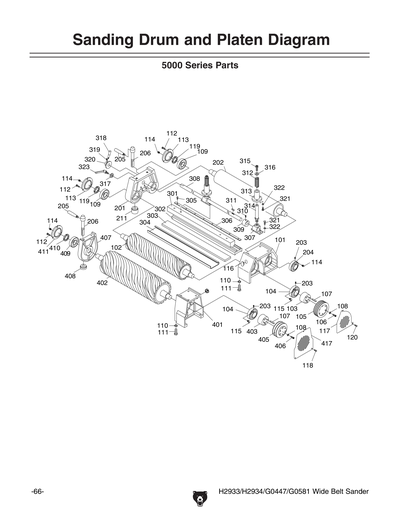

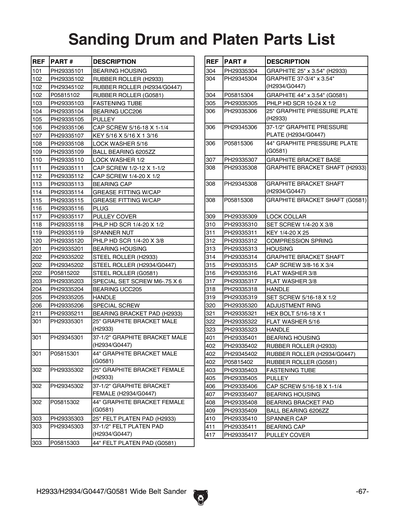

5101
BEARING HOUSING
5102
RUBBER ROLLER
5103
FASTENING TUBE
5104
CARTRIDGE BEARING UCC206
Price
N/A
5105
PULLEY
5106
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
5107
Now: PK11
KEY 5/16 X 5/16 X 1-3/16
Price
N/A
5108
Now: PLW01
LOCK WASHER 5/16
Price
N/A
5109
BALL BEARING 6205ZZ
Price
N/A
5110
Now: PLW07
LOCK WASHER 1/2
Price
N/A
5111
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
5112
CAP SCREW 1/4-20 X 1/2
Price
N/A
5113
BEARING CAP
5114
STRAIGHT GREASE FITTING W/CAP
5115
GREASE FITTING 90 DEG W/CAP
5116
PLUG
5117
PULLEY COVER
5118
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
5119
SPANNER NUT
5120
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
5201
BEARING HOUSING
5202
STEEL ROLLER
5203
SET SCREW M6-.75 X 6
5204
CARTRIDGE BEARING UCC205
Price
N/A
5205
HANDLE
5206
FLAT HD SCR 5/8 X 11
Price
N/A
5211
BEARING BRACKET PAD
5301
GRAPHITE BRACKET 25" MALE
5302
GRAPHITE BRACKET 25" FEMALE
Item is no longer available
Price
N/A
5303
FELT PLATEN PAD 25"
5304
GRAPHITE 25" X 3.54"
5305
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
5306
GRAPHITE PRESSURE PLATE 25"
Item is no longer available
Price
N/A
5307
GRAPHITE BRACKET BASE
5308
GRAPHITE BRACKET SHAFT
5309
FASTENING TUBE
5310
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
5311
KEY 1/4 X 1/4 X 25MM
Price
N/A
5312
COMPRESSION SPRING 3.5 X 21 X 65
5313
HOUSING
5314
GRAPHITE BRACKET SHAFT
5315
CAP SCREW 3/8-16 X 3/4
Price
N/A
5316
Now: PW02
FLAT WASHER 3/8
Price
N/A
5317
Now: PW02
FLAT WASHER 3/8
Price
N/A
5318
HANDLE
5319
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
5320
ADJUSTMENT RING
5321
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
5322
Now: PW07
FLAT WASHER 5/16
Price
N/A
5323
HANDLE
5401
BEARING HOUSING
5402
RUBBER ROLLER
5403
FASTENING TUBE
5404
CARTRIDGE BEARING UCC206
Price
N/A
5405
PULLEY
5406
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
5407
BEARING HOUSING
5408
BEARING BRACKET PAD
5409
BALL BEARING 6206ZZ
Price
N/A
5410
SPANNER CAP
5411
BEARING CAP
5417
*DISCD*COVER OF PULLEY
Item is no longer available
Price
N/A

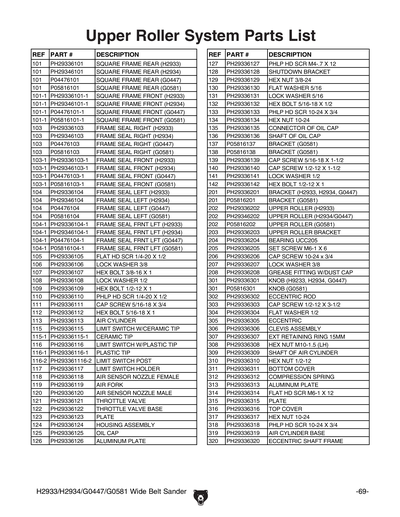

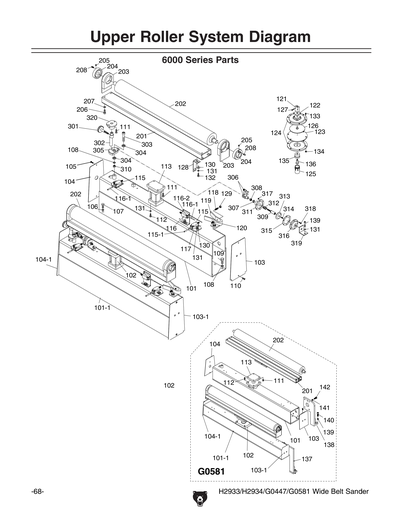

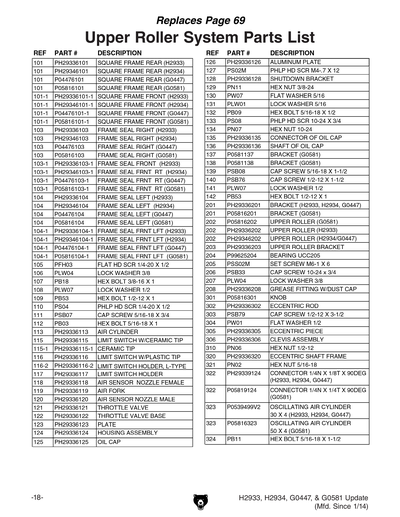

6101
SQUARE FRAME
Item is no longer available
Price
N/A
6102
SQUARE FRAME SEAL RIGHT
Price
N/A
6103
SQUARE FRAME SEAL RIGHT
6103-1
SQUARE FRAME SEAL FRONT RIGHT
Item is no longer available
Price
N/A
6104
SQUARE FRAME SEAL LEFT
Item is no longer available
Price
N/A
6104-1
SQUARE FRAME SEAL FRONT LEFT
Item is no longer available
Price
N/A
6105
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
6106
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6107
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
6108
Now: PLW07
LOCK WASHER 1/2
Price
N/A
6109
Now: PB53
HEX BOLT 1/2-12 X 1
Price
N/A
6110
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
6111
CAP SCREW 5/16-18 X 3/4
Price
N/A
6112
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
6113
AIR CYLINDER
6114
LIMIT SWITCH HOLDER L-TYPE
6115
LIMIT SWITCH CERAMIC ASSY
Price
N/A
6115-1
LIMIT SWITCH CERAMIC TIP
Price
N/A
6115-2
PLASTIC TUBE
Item is no longer available
Price
N/A
6116
LIMIT SWITCH W/PLASTIC TIP
Price
N/A
6116-2
LIMIT SWITCH HOLDER L-TYPE
Price
N/A
6117
LIMIT SWITCH HOLDER
6118
AIR NOZZLE FEMALE
Price
N/A
6119
AIR FORK
6120
AIR SENSOR NOZZLE MALE
6121
THROTTLE VALVE
6122
THROTTLE VALVE BASE
6123
PLATE
6124
ALUMINUM DISC
6125
OIL CAP
6126
ALUMINUM PLATE
6127
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
6128
SANDING BELT POWER OFF PLATE
Price
N/A
6129
Now: PN11
HEX NUT 3/8-24
Price
N/A
6130
Now: PW07
FLAT WASHER 5/16
Price
N/A
6131
Now: PLW01
LOCK WASHER 5/16
Price
N/A
6132
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
6133
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
6134
Now: PN07
HEX NUT 10-24
Price
N/A
6135
CONNECTOR OF OIL CAP
6136
SHAFT OF OIL CAP

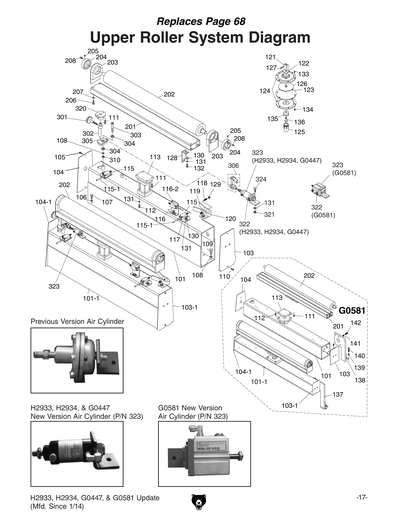

6201
UPPER ROLLER BRACKET
6202
UPPER ROLLER
6203
ROLLER BRACKET UPPER
Price
N/A
6204
CARTRIDGE BEARING UCC205
Price
N/A
6205
SET SCREW M6-1 X 6
Price
N/A
6206
CAP SCREW 10-24 X 3/4
Price
N/A
6207
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6208
GREASE FITTING W/CAP 1/16" STRAIGHT
Price
N/A
6301
TRIMMING KNOB
6302
ECCENTRIC ROD
Price
N/A
6303
CAP SCREW 1/2-12 X 3-1/2
Price
N/A
6304
Now: PW01
FLAT WASHER 1/2
Price
N/A
6305
ECCENTRIC
6306
CLEVIS ASSEMBLY
6307
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
6308
Now: PN27M
HEX NUT M10-1.5 LH
Price
N/A
6309
SHAFT OF AIR CYLINDER
6310
Now: PN06
HEX NUT 1/2-12
Price
N/A
6311
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6312
SPRING 3.3 X 24.5 X 24
6313
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6314
FLAT HD SCR M6-1 X 12
Price
N/A
6315
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6316
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6317
Now: PN07
HEX NUT 10-24
Price
N/A
6318
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
6319
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6320
ECCENTRIC SHAFT FRAME
6321
Now: PN02
HEX NUT 5/16-18
Price
N/A
6322
***USE P0539518***
Price
N/A
6323
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6324
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A

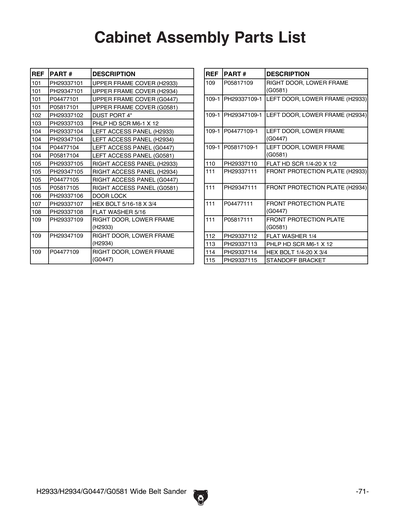

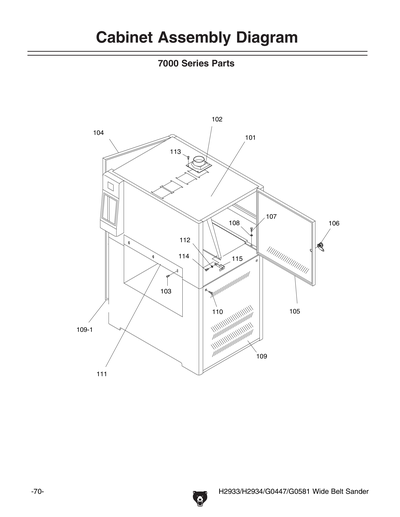

7101
UPPER FRAME COVER
Item is no longer available
Price
N/A
7102
DUST PORT 4"
7102-1
DUST PORT EXTENSION
7103
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
7104
ACCESS PANEL LEFT
7105
ACCESS PANEL RIGHT
7106
DOOR LOCK
7107
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
7108
Now: PW07
FLAT WASHER 5/16
Price
N/A
7109
DOOR RIGHT LOWER FRAME
Item is no longer available
Price
N/A
7109-1
DOOR LEFT LOWER FRAME
7110
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
7111
FRONT PROTECTION PLATE
7112
Now: PW06
FLAT WASHER 1/4
Price
N/A
7113
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
7114
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
7115
STANDOFF BRACKET

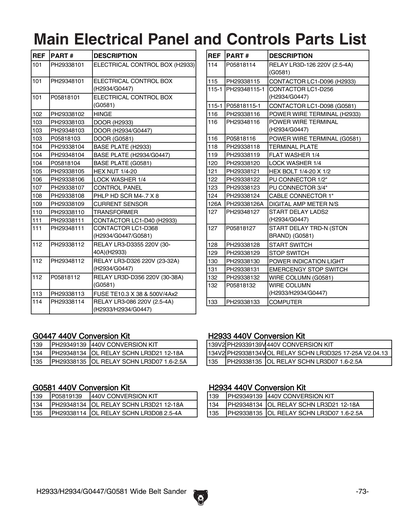

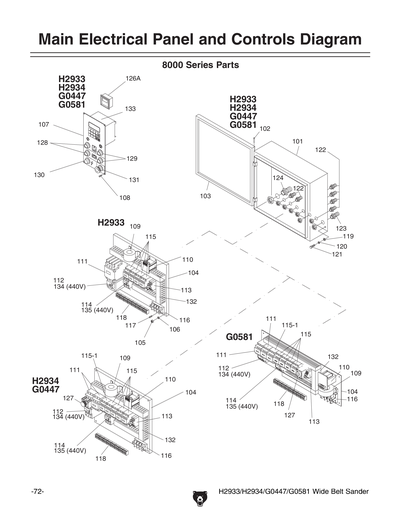

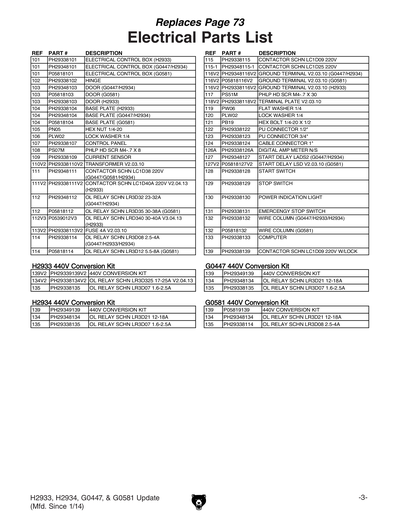

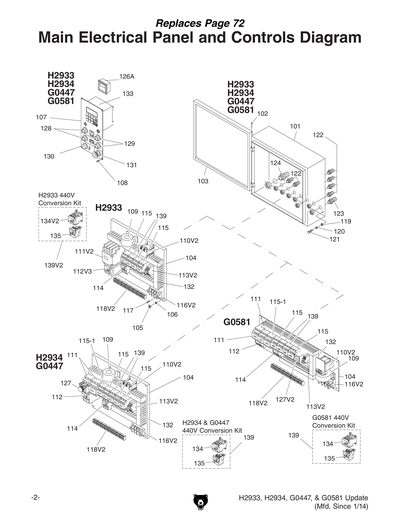

8101
*DISCD*ELECTRICAL CONTROL BOX
Item is no longer available
Price
N/A
8102
HINGE
8103
DOOR
8104
BASE PLATE
8105
Now: PN05
HEX NUT 1/4-20
Price
N/A
8106
Now: PLW02
LOCK WASHER 1/4
Price
N/A
8107
CONTROL PANEL
8108
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
8109
PROPORTIONAL CURRENT DEVICE
8110
TRANSFORMER V1.04.05
8110V2
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8111
*DISCD*CONTACTOR TELE LC1-D40 V1
Item is no longer available
Price
N/A
8111V2
CONTACTOR SCHN LC1D40A V2.09.10
Price
N/A
8112
*DISCD*OL RELAY TELE LR3-D3355 30-40A V1
8112V2
OL RELAY TELE LR3-D340 30-40A V2.11.10
8112V3
OL RELAY SCHN LRD340 30-40A V3.04.13
Price
N/A
8113
***USE P0539013***
8113V2
FUSE 4A V2.03.10
8114
OL RELAY SCHN LR3D08 2.5-4A
8115
CONTACTOR SCHN LC1D09 220V
8115-1
CONTACTOR SCHN LC1D09 220V W/LOCK
Price
N/A
8115L
CONTACTOR SCHN LC1D09 220V
Price
N/A
8116
*DISCD*GROUND TERMINAL V1.04.05
Item is no longer available
Price
N/A
8116V2
GROUND TERMINAL V2.03.10
8117
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
8118
TERMINAL PLATE V1.05.02
8118V2
TERMINAL PLATE V2.03.10
8119
Now: PW06
FLAT WASHER 1/4
Price
N/A
8120
Now: PLW02
LOCK WASHER 1/4
Price
N/A
8121
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
8122
PU CONNECTOR 1/2"
8123
PU CONNECTOR 3/4"
8124
CABLE CONNECTOR 1"
8126
AMP METER V1.03.03
8126A
DIGITAL AMP METER V2.02.06
8128-1
START SWITCH
Price
N/A
8128-2
START SWITCH
8129-1
E-STOP BUTTON 250V 10A
Price
N/A
8129-2
BUTTON SWITCH, YK 10A 250V RED
Price
N/A
8130
POWER INDICATOR LIGHT 220V 22MM WHT
Price
N/A
8131
E-STOP BUTTON 250V 10A
Price
N/A
8132
WIRE COLUMN
8133
COMPUTER W/CONTROL PANEL
8134
RELAY TELE LR3D-3322 440V 17-25A V1
Price
N/A
8134V2
OL RELAY SCHN LR3D325 17-25A V2.04.13
8135
OL RELAY SCHN LR3D07 1.6-2.5A
Price
N/A
8139
CONTACTOR SCHN LC1D09 220V W/LOCK

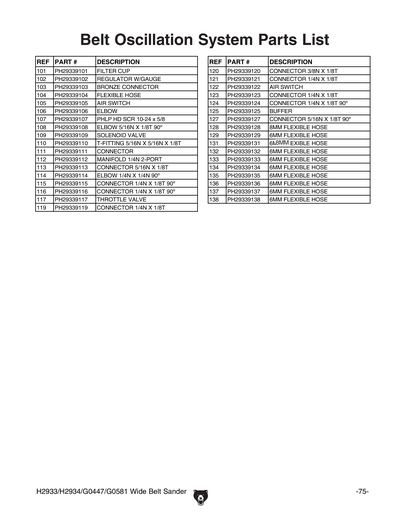

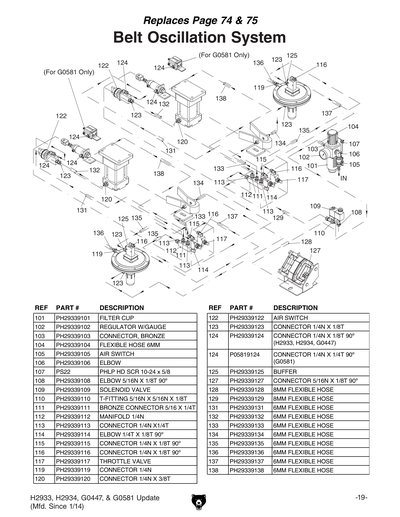

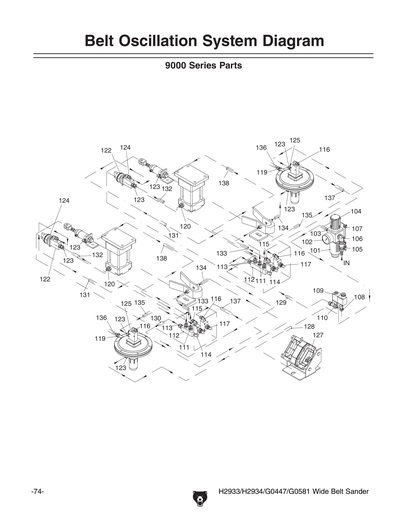

9101
FILTER CUP AND REGULATOR W/ GAUGE
9102
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9102-1
PRESSURE GAUGE
9103
CONNECTOR, BRONZE
9104
FLEXIBLE HOSE 8MM
Price
N/A
9105
AIR SWITCH
9106
ELBOW
9107
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
9108
ELBOW 5/16N X 1/8T 90DEG
9109
SOLENOID VALVE
9110
T-FITTING 5/16N X 5/16N X 1/8T
9111
CONNECTOR 5/16 X 1/4T BRONZE
9112
MANIFOLD 1/4N 2-PORT
9113
CONNECTOR 1/4N X1/4T
9114
ELBOW 1/4T X 1/8T 90º
9115
CONNECTOR 1/4N X 1/8T 90DEG
9116
CONNECTOR 1/4N X 1/8T 90DEG
9117
THROTTLE VALVE
9118
PLASTIC CONNECTOR
Item is no longer available
Price
N/A
9119
CONNECTOR 1/4N
9120
CONNECTOR 1/4N X 3/8T
9121
CONNECTOR 1/4N X1/8T
9122
AIR SWITCH
Price
N/A
9123
CONNECTOR, BRONZE
Price
N/A
9124
CONNECTOR 1/4N X 1/8T 90DEG
9125
BUFFER
9126
MANIFOLD 1/4N 2-PORT
Price
N/A
9127
CONNECTOR 5/16N X 1/8T 90DEG
9128
FLEXIBLE HOSE 8MM
9129
FLEXIBLE HOSE 8MM
9131
FLEXIBLE HOSE 6MM
9132
FLEXIBLE HOSE 6MM
9133
FLEXIBLE HOSE 6MM
9134
FLEXIBLE HOSE 6MM
9135
FLEXIBLE HOSE 6MM
9136
FLEXIBLE HOSE 6MM
9137
FLEXIBLE HOSE 6MM
9138
FLEXIBLE HOSE 6MM
9139
CONVERSION KIT 440V LR3D-3322/LR3D-076
9139-1
RELAY LR3D-3322
9139-2
***USE P0539014-1***
Price
N/A
9139V2
440V CONVERSION KIT
Item is no longer available
Price
N/A
9140
MANIFOLD 1/4N 3-PORT

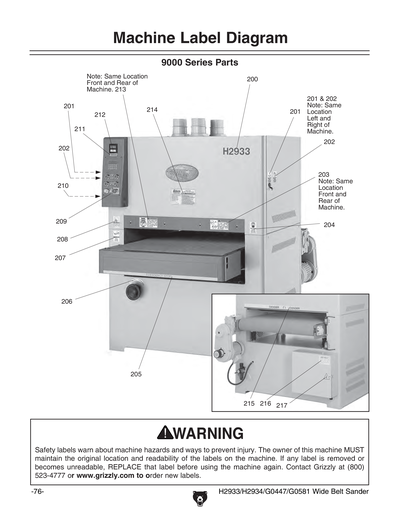

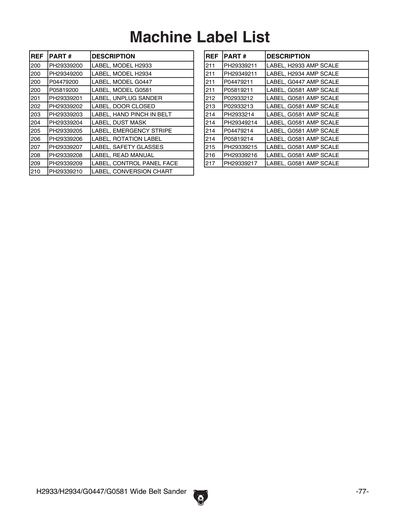

9200
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
9201
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
9202
DONT OPEN 2W X 3.3H
Price
N/A
9203
SANDER BELT PINCH 4W X 2.1H
Price
N/A
9204
DUST MASK 2W X 3.3H V1
Price
N/A
9205
EMERGENCY STRIPE LABEL
Price
N/A
9207
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
9208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
9209
CONTROL PANEL FACE LABEL
9210
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
9211
AMP SCALE LABEL
9212
LOAD METER FACE LABEL
Item is no longer available
Price
N/A
9213
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
9214
MACHINE DATA LABEL
Item is no longer available
Price
N/A
9215
DANGER STRIPE LABEL
Price
N/A
9216
PREWIRED FOR 220V LABEL
Item is no longer available
Price
N/A
9217
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
MANUAL FOR H2933 11/05
P
CAP SCREW 1/2-12 X 3-1/2
