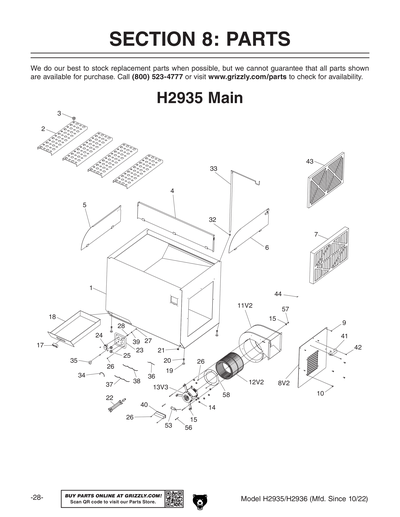

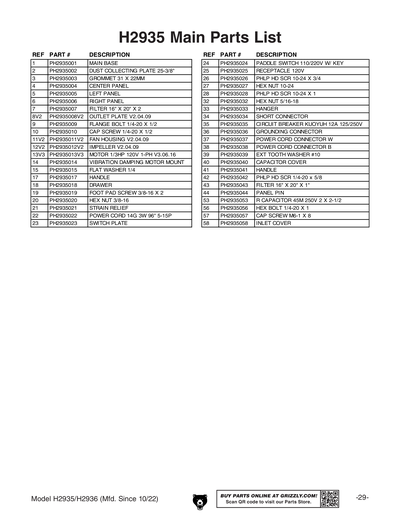

Parts for H2935 - 23" x 31" Downdraft Table

1/5

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MAIN BASE
Price
$920.60
2
DUST COLLECTING PLATE 21 IN
Price
$76.50
3
GROMMET 31 X 22MM
Price
N/A
4
CENTER PANEL
Price
$24.45
5
LEFT PANEL
Price
$17.00
6
RIGHT PANEL
Price
$17.00
7
10-Micron Second-Stage Filter
Price
N/A
8
OUTLET PLATE V1.02.03
Price
$66.70
8V2
OUTLET PLATE V2.04.09
Price
N/A
9
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
10
CAP SCREW 1/4-20 X 1/2
Price
N/A
11
FAN HOUSING V1.02.03
Price
$143.50
11V2
FAN HOUSING V2.04.09
Price
N/A
12
*DISCD*METAL IMPELLER V1.02.03
Item is no longer available
Price
N/A
12V2
PLASTIC IMPELLER 7"T X 9.5"W V2.12.07
Price
N/A
13
MOTOR 1/3HP 110V 1-PH V1.02.03
Price
$149.80
13V2
MOTOR 1/3HP 120V 1-PH V3.06.16
Price
N/A
13V3
MOTOR 1/3HP 120V 1-PH V3.06.16
Price
$176.85
14
VIBRATION DAMPING MOTOR MOUNT
Price
N/A
15
FLAT WASHER 1/4
Price
N/A
16
HEX NUT 1/4-20
Price
N/A
17
HANDLE
Price
N/A
18
DRAWER
Price
N/A
19
FOOT PAD SCREW 3/8-16 X 2
Price
N/A
20
HEX NUT 3/8-16
Price
N/A
21
STRAIN RELIEF
Price
N/A
22
POWER CORD 14G 3W 96" 5-15P
Price
N/A
23
SWITCH PLATE
Price
N/A
24
Safety Paddle Switch
Price
N/A
25
RECEPTACLE 110V
Price
N/A
26
PHLP HD SCR 10-24 X 3/4
Price
N/A
27
HEX NUT 10-24
Price
N/A
28
PHLP HD SCR 10-24 X 1
Price
N/A
29
POWER CORD CONNECTOR W
Price
N/A
32
HEX NUT 5/16-18
Price
N/A
33
HANGER
Price
N/A
34
SHORT CONNECTOR
Price
N/A
35
CIRCUIT BREAKER KUOYUH 12A 125/250V
Price
N/A
36
GROUNDING CONNECTOR
Price
N/A
37
POWER CORD CONNECTOR W
Price
N/A
38
POWER CORD CONNECTOR B
Price
N/A
39
EXT TOOTH WASHER #10
Price
N/A
40
CAPACITOR COVER
Price
N/A
41
HANDLE
Price
N/A
42
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
43
5-Micron Disposable Primary Filter (G9956/H2935)
Price
N/A
44
PANEL PIN
Price
N/A
45

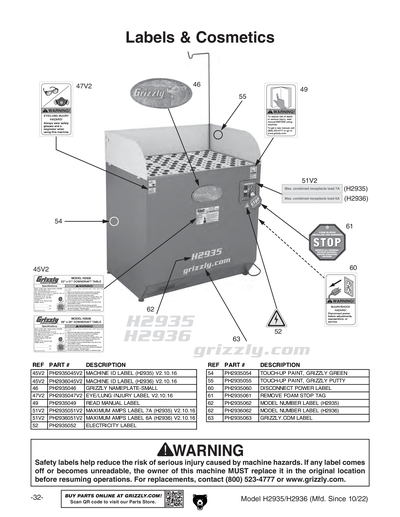

MACHINE ID LABEL V1
Price
$9.50
45V2
MACHINE ID LABEL CSA V2.02.12
Price
$9.50
46
Name Plates - Small
Price
N/A
47
SAFETY GLASSES 2W X 3.3H V1
Price
N/A
47V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
48
DUST MASK 2W X 3.3H V2.05.06
Price
N/A
49
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
50
NO HANDS IN OUTLET
Price
N/A
51
MAXIMUM AMPS LABEL 3.5A V1
Price
$22.00
51V2
MAXIMUM AMPS LABEL 7A V2.10.16
Price
$1.00
52
ELECTRICITY 1.4W X 1.2H
Price
N/A
53
R CAPACITOR 45M 250V 2 X 2-1/2
Price
$22.15
54
N/S GRIZZLY GREEN G1023S
Price
N/A
55
GREY PUTTY REF G0504
Price
N/A
56
HEX BOLT 1/4-20 X 1
Price
N/A
57
CAP SCREW M6-1 X 8
Price
N/A
58
INLET COVER
Price
N/A
60
DISCONNECT 110V 2W X 3.3H
Price
N/A
61
REMOVE FOAM STOP TAG
Price
$0.00
62
MODEL NUMBER LABEL
Price
$0.00
63
GRIZZLY.COM LABEL
Price
$0.00
MAN
MANUAL H2935/36 MFD-02.03-03.09 V1.05.06
Price
$11.75
MANV2
MANUAL H2935/36 MFD-04.09-01.12 V2.08.09
Price
$12.50
MANV3
MANUAL H2935/36 MFD-02.12-05.16 V3.01.12
Price
$0.00
MANV4
MAN H2935/2936 MFD-06.16-09.22+ V4.05.22
Price
$0.00
MANV5
MANUAL H2935/H2936 MFD-10.22+ V5.01.23
Price
$0.00
