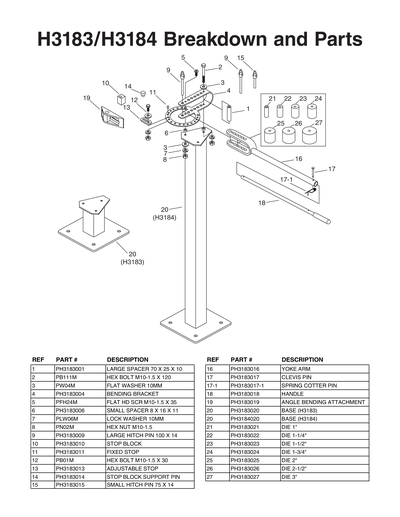

Parts for H3183 Compact Bender System - Bench Model

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SPACER 70 X 25 X 10
2
HEX BOLT M10-1.5 X 120
Price
N/A
3
Now: PW04M
FLAT WASHER 10MM
Price
N/A
4
BENDING BRACKET
5
FLAT HD SCR M10-1.5 X 35
Price
N/A
6
SMALL SPACER 8 X 16 X 11
7
LOCK WASHER 10MM
Price
N/A
8
Now: PN02M
HEX NUT M10-1.5
Price
N/A
9
HITCH PIN 14 X 100
10
STOP BLOCK
11
FIXED STOP
12
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
13
ADJUSTABLE STOP
14
STOP BLOCK SUPPORT PIN
15
SMALL HITCH PIN 75 X 14
16
HANDLE EXTENSION ARM
17
CLEVIS PIN
17-1
HAIRPIN COTTER PIN
18
HANDLE
19
SHARP ANGLE BENDING ATTACHMENT
20
BASE
21
DIE 1"
22
DIE 1-1/4"
23
DIE 1-1/2"
24
DIE 1-3/4"
25
DIE 2"
26
DIE 2-1/2"
27
DIE 3"
MANUAL
MANUAL FOR H3183 04/06
