Parts for H3370 - Pancake Air Compressor

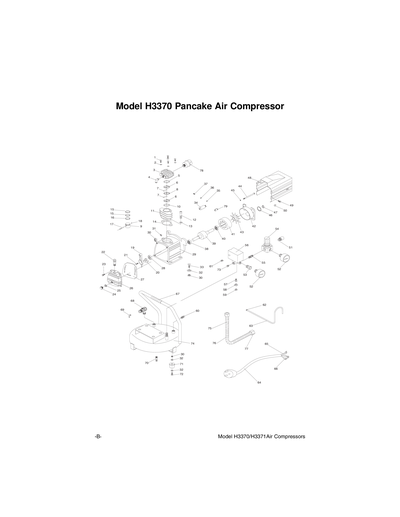

Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370
Part Diagram for H3370

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

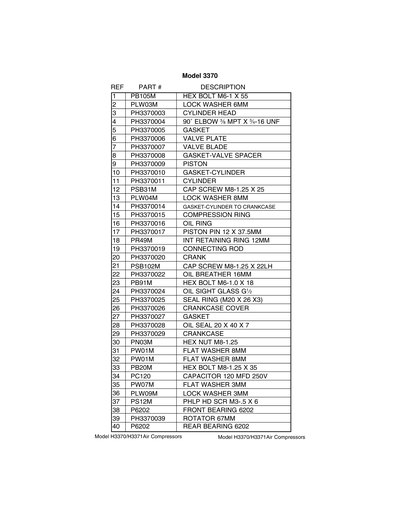

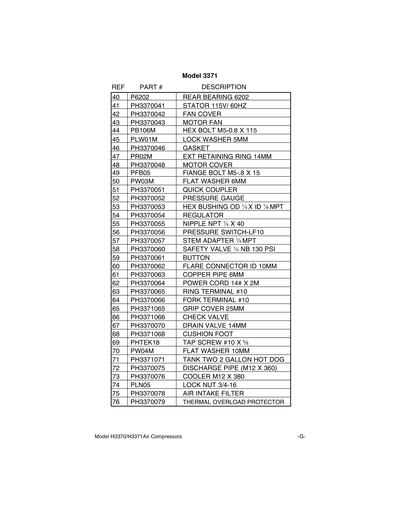

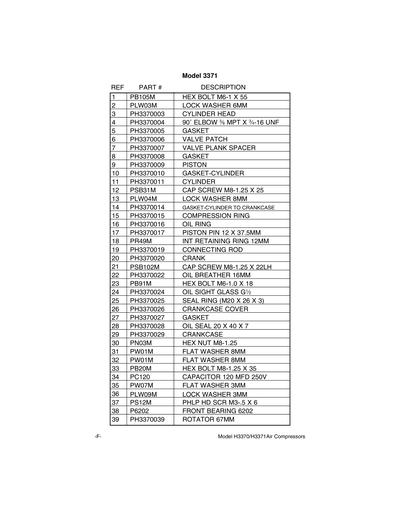

Ref #
Part #
Description
1
HEX BOLT M6-1 X 55
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
*DISCD*CYLINDER HEAD
Price
N/A
4
*DISCD*ELBOW 90 DEG 3/5 NPT X 3/4-16UNF
Price
N/A
5
*DISCD*GASKET SET 2PC
Price
N/A
6
*DISCD*VALVE ASSEMBLY
Price
N/A
7
*DISCD*VALVE ASSEMBLY
Price
N/A
8
*DISCD*VALVE ASSEMBLY
Price
N/A
9
*DISCD*PISTON
Price
N/A
10
*DISCD*GASKET SET 2PC
Price
N/A
11
*DISCD*CYLINDER & GASKET
Price
N/A
12
CAP SCREW M8-1.25 X 25
Price
N/A
13
LOCK WASHER 8MM
Price
N/A
14
*DISCD*CYLINDER & GASKET
Price
N/A
15
*DISCD*PISTON RING SET
Price
N/A
16
*DISCD*PISTON RING SET
Price
N/A
17
*DISCD*WRIST PIN
Price
N/A
18
INT RETAINING RING 12MM
Price
N/A
19
*DISCD*CONNECTING ROD
Price
N/A
20
*DISCD*CRANK SHAFT
Price
N/A
21
CAP SCREW M8-1.25 X 22 LH
Price
N/A
22
*DISCD*OIL BREATHER 16MM
Price
$1.49
23
HEX BOLT M6-1 X 18
Price
N/A
24
*DISCD*OIL SIGHT GLASS G1/2
Price
$2.60
25
*DISCD*SEAL RING M20 X 26 X 3
Price
$1.49
26
*DISCD*CRANKCASE COVER
Item is no longer available
Price
N/A
27
Price
$1.49
28
*DISCD*OIL SEAL 20 X 40 X 7
Item is no longer available
Price
N/A
29
*DISCD*CRANKCASE
Item is no longer available
Price
N/A
30
HEX NUT M8-1.25
Price
N/A
31
FLAT WASHER 8MM
Price
N/A
32
FLAT WASHER 8MM
Price
N/A
33
HEX BOLT M8-1.25 X 35
Price
N/A
34
*DISCD*CAPACITOR 120MFD 250V
Item is no longer available
Price
N/A
35
FLAT WASHER 5/16
Price
N/A
36
LOCK WASHER 3MM
Price
N/A
37
PHLP HD SCR M3-.5 X 6
Price
N/A
38
BALL BEARING 6202ZZ
Price
N/A
39
*DISCD*ROTATOR 67MM
Item is no longer available
Price
N/A
40
BALL BEARING 6202ZZ
Price
N/A
41
*DISCD*STATOR 115V/60HZ
Item is no longer available
Price
N/A
42
*DISCD*FAN COVER
Item is no longer available
Price
N/A
43
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
44
*DISCD*HEX BOLT M5-.8 X 115
Price
N/A
45
LOCK WASHER 5MM
Price
N/A
46
*DISCD*GASKET
Item is no longer available
Price
N/A
47
EXT RETAINING RING 14MM
Price
N/A
48
*DISCD*MOTOR COVER
Item is no longer available
Price
N/A
49
FLANGE BOLT M5-.8 X 15
Price
N/A
50
FLAT WASHER 6MM
Price
N/A
51
*DISCD*QUICK COUPLER
Item is no longer available
Price
N/A
52
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
53
*DISCD*HEX BUSHING OD 1/4 X ID 1/8 MPT
Price
$1.49
54
*DISCD*REGULATOR
Item is no longer available
Price
N/A
55
*DISCD*NIPPLE NPT 1/4 X 40
Price
$1.49
56
*DISCD*PRESSURE SWITCH-LF10
Item is no longer available
Price
N/A
57
*DISCD*STEM ADAPTER 1/4 MPT
Price
$1.49
58
*DISCD*FLARE CONNECTOR 3/8 FPT
Item is no longer available
Price
N/A
59
*DISCD*PLASTIC GASKET 6MM
Price
$1.49
60
*DISCD*SAFETY VALVE 1/4 NB 130 PSI
Price
$8.35
61
*DISCD*OVERLOAD PROTECTOR
Price
N/A
62
*DISCD*FLARE CONNECTOR 10MM
Price
$1.49
63
*DISCD*RELIEF COPPER PIPE 6 X 590
Item is no longer available
Price
N/A
64
*DISCD*POWER CORD 14# X 2M
Item is no longer available
Price
N/A
65
*DISCD*RING TERMINAL #10
Item is no longer available
Price
N/A
66
*DISCD*FORK TERMINAL #10
Item is no longer available
Price
N/A
67
*DISCD*GRIP COVER 25MM
Item is no longer available
Price
N/A
68
*DISCD*CHECK VALVE
Item is no longer available
Price
N/A
69
*DISCD*90 ELBOW 1/8 MPT X 1/8 MPT
Item is no longer available
Price
N/A
70
*DISCD*DRAN VALVE
Item is no longer available
Price
N/A
71
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
72
HEX BOLT M8-1.25 X 20
Price
N/A
73
*DISCD*PLUG 1/4 MPT
Item is no longer available
Price
N/A
74
*DISCD*TANK 4 GALLON PANCAKE
Item is no longer available
Price
N/A
75
*DISCD*DISCHARGE PIPE M12 X 360
Item is no longer available
Price
N/A
76
*DISCD*COOLER M12 X 380
Item is no longer available
Price
N/A
77
LOCK NUT 3/4-16
Price
N/A
78
*DISCD*AIR INTAKE FILTER
Price
$4.90
79
*DISCD*THERMAL OVERLOAD PROTECTOR
Item is no longer available
Price
N/A

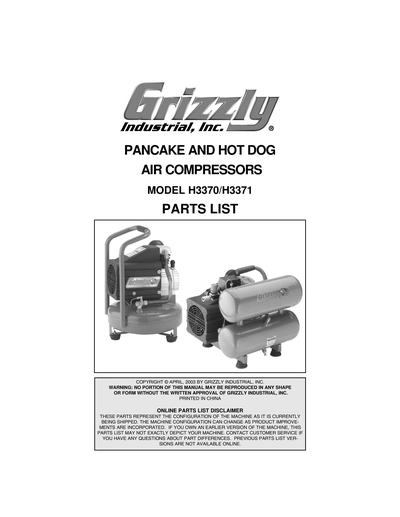

MANUAL
Price
$21.95
