Parts for H3372 - 3 HP Air Compressor

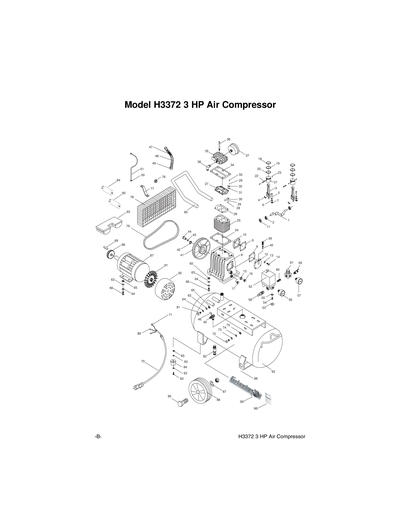

Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372
Part Diagram for H3372

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

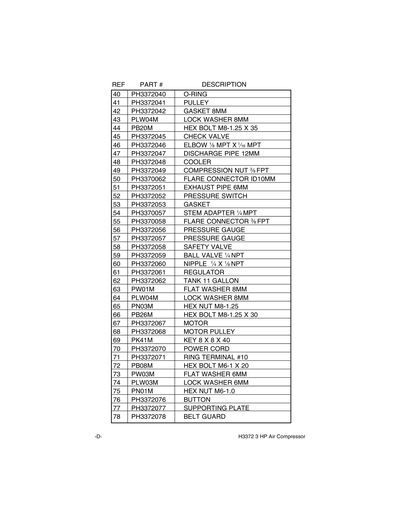

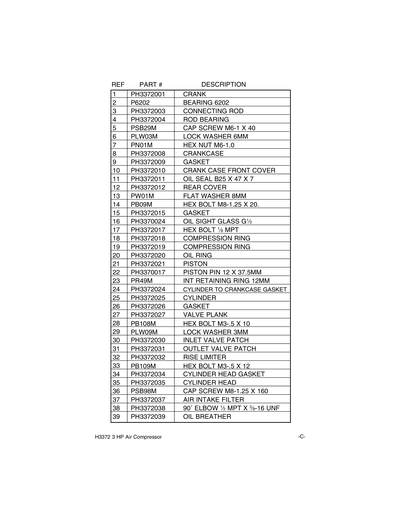

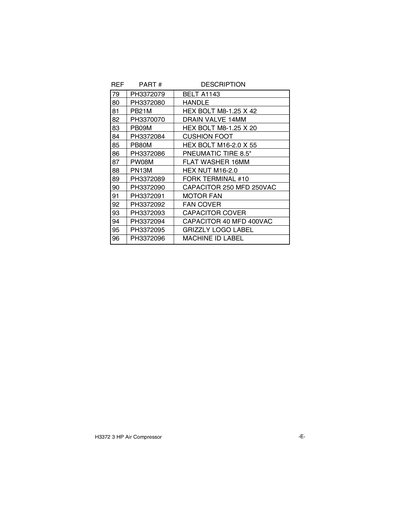

Ref #
Part #
Description
1
*DISCD*CRANKSHAFT
Price
N/A
2
BALL BEARING 6202ZZ
Price
N/A
3
*DISCD*CONNECTING ROD
Price
N/A
4
*DISCD*ROD BEARING
Item is no longer available
Price
N/A
5
CAP SCREW M6-1 X 40
Price
N/A
6
LOCK WASHER 6MM
Price
N/A
7
HEX NUT M6-1
Price
N/A
8
*DISCD*CRANK CASE
Price
N/A
9
*DISCD*GASKET
Item is no longer available
Price
N/A
10
*DISCD*CRANK CASE FRONT COVER
Item is no longer available
Price
N/A
11
*DISCD*OIL SEAL B25 X 47 X 7
Item is no longer available
Price
N/A
12
*DISCD*REAR COVER
Price
N/A
13
FLAT WASHER 8MM
Price
N/A
14
HEX BOLT M8-1.25 X 20
Price
N/A
15
*DISCD*GASKET
Item is no longer available
Price
N/A
16
*DISCD*OIL SIGHT GLASS
Price
N/A
17
*DISCD*HEX BOLT 1/8 MPT
Item is no longer available
Price
N/A
18
*DISCD*COMPRESSION RING
Price
N/A
19
*DISCD*OIL RING
Price
N/A
20
*DISCD*OIL RING
Price
N/A
21
*DISCD*PISTON
Price
N/A
22
*DISCD*WRIST PIN
Price
N/A
23
INT RETAINING RING 12MM
Price
N/A
24
*DISCD*CYLINDER GASKET
Price
N/A
25
*DISCD*CYLINDER
Price
N/A
26
*DISCD*PLATE GASKET
Price
N/A
27
*DISCD*VALVE PLANK
Price
N/A
28
HEX BOLT M3-.5 X 12
Price
N/A
29
LOCK WASHER 3MM
Price
N/A
30
*DISCD*INLET VALVE PATCH
Item is no longer available
Price
N/A
31
*DISCD*OUTLET VALVE PATCH
Item is no longer available
Price
N/A
32
*DISCD*RISE LIMITER
Item is no longer available
Price
N/A
33
HEX BOLT M3-.5 X 12
Price
N/A
34
*DISCD*CYLINDER HD GASKET
Item is no longer available
Price
N/A
35
Price
$41.40
36
CAP SCREW M8-1.25 X 160
Price
N/A
37
*DISCD*AIR INTAKE FILTER
Price
$4.90
38
*DISCD*90D ELBOW 1/2 MPT 3/8-16UNF
Price
N/A
39
*DISCD*OIL BREATHER
Item is no longer available
Price
N/A
40
*DISCD*O-RING
Item is no longer available
Price
N/A
41
*DISCD*PUMP PULLEY
Price
N/A
42
*DISCD*GASKET 8MM
Price
N/A
43
LOCK WASHER 8MM
Price
N/A
44
HEX BOLT M8-1.25 X 35
Price
N/A
45
*DISCD*CHECK VALVE
Price
N/A
46
*DISCD*CHECK VALVE
Price
N/A
47
*DISCD*EXHAUST PIPE
Price
N/A
48
*DISCD*EXHAUST PIPE
Price
N/A
49
*DISCD*EXHAUST PIPE
Price
N/A
50
*DISCD*PUMP PULLEY
Price
N/A
51
*DISCD*GASKET 8MM
Price
N/A
52
*DISCD*PRESSURE SWITCH
Price
N/A
53
*DISCD*CONNECT
Price
N/A
54
*DISCD*CONNECT
Price
N/A
55
*DISCD*CONNECT
Price
N/A
56
*DISCD*CONNECT
Price
N/A
57
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
58
*DISCD*SAFETY VALVE
Price
N/A
59
*DISCD*BALL VALVE 1/4 NPT
Item is no longer available
Price
N/A
60
*DISCD*NIPPLE 1/4 X 1/8 NPT
Price
N/A
61
*DISCD*REGULATOR
Price
N/A
62
*DISCD*TANK
Price
N/A
63
FLAT WASHER 8MM
Price
N/A
64
LOCK WASHER 8MM
Price
N/A
65
HEX NUT M8-1.25
Price
N/A
66
HEX BOLT M8-1.25 X 30
Price
N/A
67
*DISCD*MOTOR
Price
N/A
68
*DISCD*MOTOR PULLEY
Price
N/A
69
KEY 8 X 8 X 40
Price
N/A
70
*DISCD*POWER CORD IEC FEMALE
Price
N/A
71
*DISCD*RING TERMINAL #10
Item is no longer available
Price
N/A
72
HEX BOLT M6-1 X 20
Price
N/A
73
FLAT WASHER 6MM
Price
N/A
74
LOCK WASHER 6MM
Price
N/A
75
HEX NUT M6-1
Price
N/A
76
*DISCD*SAFETY GUARD
Price
N/A
77
*DISCD*SAFETY GUARD
Price
N/A
78
*DISCD*SAFETY GUARD
Price
N/A
79
V-BELT A47
Price
N/A
80
*DISCD*HANDLE GRIP
Price
N/A
81
HEX BOLT M8-1.25 X 42
Price
N/A
82
*DISCD*DRAIN VALVE 14MM
Price
N/A
83
HEX BOLT M8-1.25 X 20
Price
N/A
84
*DISCD*CUSHION FOOT
Item is no longer available
Price
N/A
85
HEX BOLT M16-2 X 55
Price
N/A
86
*DISCD*TANK WHEEL
Price
N/A
87
LOCK WASHER 16MM
Price
N/A
88
HEX NUT M16-2
Price
N/A
89
*DISCD*FORK TERMINAL #10
Item is no longer available
Price
N/A
90
*DISCD*R CAPACITOR 200MFD 220-265VAC OD1
Price
N/A
91
*DISCD*MOTOR FAN
Price
N/A
92
*DISCD*MOTOR FAN COVER
Price
N/A
93
*DISCD*CAPACITOR COVER
Price
N/A
94
*DISCD*CAPACITOR 350F 400V
Price
N/A
95
*DISCD*GRIZZLY LOGO
Price
N/A
96
*DISCD*MACHINE ID LABEL 5X6
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE H3372
Price
$13.25
