Parts for H3559 Buffing Assembly

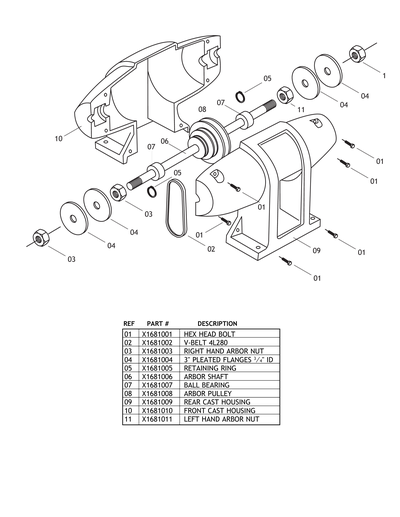

Parts Diagrams for H3559 - Buffing Assembly

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for H3559 Buffing Assembly

1
HEX NUT 3/4-16 LH
Price
N/A
1A
HEX NUT 3/4-16 LH
Price
N/A
2
Now: PVA28
V-BELT A28
Price
N/A
3
Now: PN03
HEX NUT 3/4-16
Price
N/A
4
PLEATED FLANGES 3" 3/4"ID
Price
N/A
5
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
6
*DISCD*ARBOR SHAFT
Price
N/A
7
BALL BEARING 6204-2RS
Price
N/A
8
ARBOR PULLEY
Price
N/A
9
REAR CAST HOUSING
Price
N/A
10
FRONT CAST HOUSING
Price
N/A
11
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
