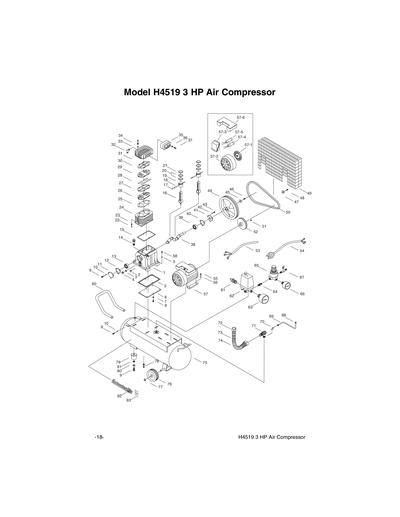

Parts for H4519 3 HP Air Compressor w/ 11 gal. Tank

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

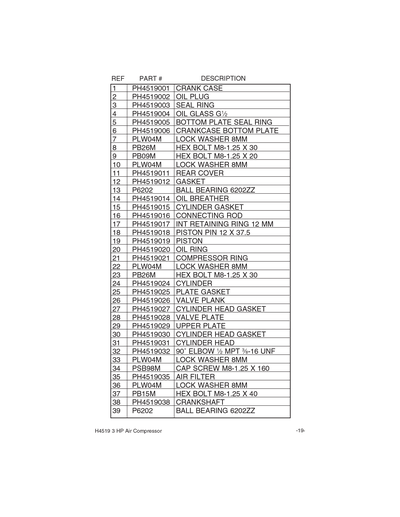

1
*DISCD*CRANK CASE
4
*DISCD*OIL GLASS G 1/2
5
*DISCD*BOTTOM PLATE SEAL RING
7
LOCK WASHER 8MM
Price
N/A
8
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
9
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
10
LOCK WASHER 8MM
Price
N/A
12
*DISCD*GASKET
13
BALL BEARING 6202ZZ
Price
N/A
14
*DISCD*OIL BREATHER V1.10.03
14A
*DISCD*OIL BREATHER V2.07.06
15
*DISCD*CYLINDER GASKET
16
*DISCD*CONNECTING ROD
Item is no longer available
Price
N/A
19
*DISCD*PISTON
20
*DISCD*OIL RING
Item is no longer available
Price
N/A
21
*DISCD*COMPRESSION RING
Item is no longer available
Price
N/A
22
LOCK WASHER 8MM
Price
N/A
23
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
24
*DISCD*CYLINDER
25
*DISCD*PLATE GASKET
26
*DISCD*VALVE PLANK
27
*DISCD*CYLINDER HEAD GASKET
Item is no longer available
Price
N/A
28
*DISCD*VALVE PLATE 4PC
Item is no longer available
Price
N/A
29
*DISCD*UPPER PLATE
30
*DISCD*CYLINDER HEAD GASKET
31
*DISCD*CYLINDER HEAD
33
LOCK WASHER 8MM
Price
N/A
34
CAP SCREW M8-1.25 X 160
Price
N/A
35
*DISCD*AIR FILTER
36
LOCK WASHER 8MM
Price
N/A
37
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
38
*DISCD*CRANKSHAFT
Item is no longer available
Price
N/A
39
BALL BEARING 6202ZZ
Price
N/A
40
*DISCD*FRONT COVER GASKET
Item is no longer available
Price
N/A

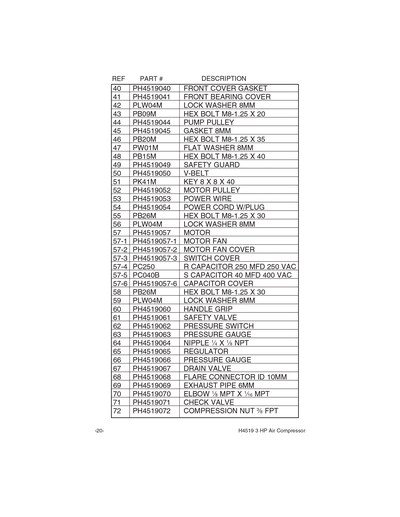

42
LOCK WASHER 8MM
Price
N/A
43
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
44
*DISCD*PUMP PULLEY
45
*DISCD*GASKET 8MM
Item is no longer available
Price
N/A
46
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
47
Now: PW01M
FLAT WASHER 8MM
Price
N/A
48
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
49
*DISCD*SAFETY GUARD
49-1
*DISCD*TOP CLIP FOR GUARD
Item is no longer available
Price
N/A
50
Now: PVA46
V-BELT A46
Price
N/A
51
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
52
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
53
*DISCD*POWER CORD IEC FEMALE
Price
N/A
54
*DISCD*POWER CORD IEC FEMALE
Price
N/A
55
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
56
LOCK WASHER 8MM
Price
N/A
57
*DISCD*MOTOR
Item is no longer available
Price
N/A
57-1
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
57-2
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
57-3
*DISCD*WIRE BOX
Item is no longer available
Price
N/A
57-4
*DISCD*R CAPACITOR 200MFD 220-265VAC OD1
Item is no longer available
Price
N/A
57-5
*DISCD*S CAPACITOR 50MFD 450VAC OD 2 L 4
57-6
*DISCD*CAPACITOR COVER
57-7
*DISCD*MOTOR STATOR
57-8
*DISCD*THERMAL OVERLOAD SWITCH 1M-001
58
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
59
LOCK WASHER 8MM
Price
N/A
60
*DISCD*HANDLE GRIP
61
*DISCD*SAFETY VALVE
62
*DISCD*PRESSURE SWITCH
Item is no longer available
Price
N/A
65
*DISCD*REGULATOR
Item is no longer available
Price
N/A
66
*DISCD*PRESSURE GAUGE
67
*DISCD*DRAIN VALVE
68
*DISCD*FLAIR CONNECTOR ID 10MM
69
*DISCD*EXHAUST PIPE 6MM
Item is no longer available
Price
N/A
70
*DISCD*ELBOW 1/8 MPT X 1/16 MPT
71
*DISCD*CHECK VALVE

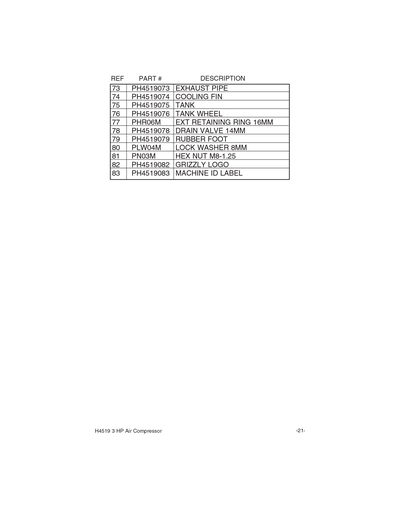

75
*DISCD*TANK
76
*DISCD*TANK WHEEL
77
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
78
*DISCD*DRAIN VALVE 14MM
Price
N/A
79
*DISCD*RUBBER FOOT
80
LOCK WASHER 8MM
Price
N/A
81
Now: PN03M
HEX NUT M8-1.25
Price
N/A
82
*DISCD*GRIZZLY LOGO
83
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
85
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
87
LOCK WASHER 16MM
Price
N/A
88
Now: PN13M
HEX NUT M16-2
Price
N/A
90
Now: PC250
S CAPACITOR 250M 125V 1-1/2 X 2-5/8
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE H4519
