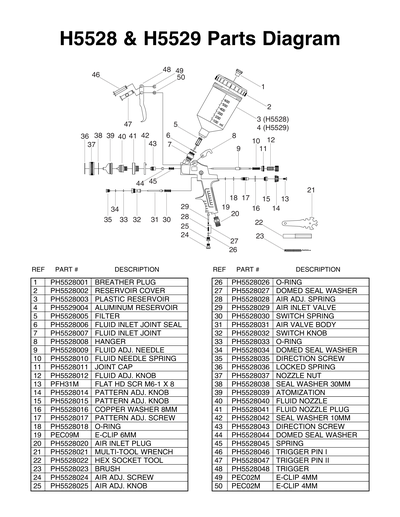

Parts for H5528 - Deluxe Spray Gun with Plastic Cup

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 PH5528001 BREATHER PLUG $2.50
2 PH5528002
Replaced By PH5528003A
SPRAY GUN CUP ASSEMBLY
N/A View Replacement
3 PH5528003
Replaced By PH5528003A
SPRAY GUN CUP ASSEMBLY
N/A View Replacement
3A PH5528003A SPRAY GUN CUP ASSEMBLY $5.25
4 PH5528004 ALUMINUM RESERVOIR $6.75
5 PH5528005 FILTER $1.00
6 PH5528006
*DISCD*FLUID INLET JOINT SEAL
Item is no longer available
N/A
7 PH5528007 FLUID INLET JOINT $1.00
8 PH5528008
HANGER
N/A
9 PH5528009 FLUID ADJUSTMENT NEEDLE $3.75
10 PH5528010 FLUID NEEDLE SPRING 6.3 X 14 $2.00
11 PH5528011 JOINT CAP $2.00
12 PH5528012 FLUID ADJUSTMENT KNOB $2.00
13 PH5528013
Replaced By PFH04M
FLAT HD SCR M6-1 X 8
N/A View Replacement
14 PH5528014 PATTERN ADJ KNOB $2.50
15 PH5528015 PATTERN ADJ KNOB $2.50
16 PH5528016 COPPER WASHER 8MM $2.50
17 PH5528017 PATTERN ADJ SCREW M13-1 X 30.3 $2.50
18 PH5528018
Replaced By POR0062
O-RING 6 X 2
N/A View Replacement
19 PH5528019
Replaced By PEC09M
E-CLIP 6MM
N/A View Replacement
20 PH5528020 AIR INLET PLUG $1.00
21 PH5528021
MULTITOOL WRENCH
N/A
22 PH5528022 HEX SOCKET TOOL $1.00
23 PH5528023 BRUSH $1.00
24 PH5528024 AIR ADJ SCREW 1/3 X 22, 19T $2.00
25 PH5528025 AIR ADJ KNOB $2.00
26 PH5528026
Replaced By POR0082
O-RING 2.5 X 2.1
N/A View Replacement
27 PH5528027 DOMED SEAL WASHER 4 $2.00
28 PH5528028
AIR ADJ SPRING 4 X 30
N/A
29 PH5528029 AIR INLET VALVE $2.00
30 PH5528030 SWITCH SPRING 5 X 35 $2.00
31 PH5528031 AIR VALVE BODY $2.00
32 PH5528032 SWITCH KNOB $2.00
33 PH5528033
Replaced By PORS003
O-RING 2.5 X 1.5 S3
N/A View Replacement
34 PH5528034 WAVY WASHER 2MM $2.00
35 PH5528035 DIRECTION SCREW M10-1 X 8 $2.00
36 PH5528036 LOCKED SPRING 6 X 37 $6.50
37 PH5528037 NOZZLE NUT M34-1 X 8 $6.50
38 PH5528038 EXT TOOTH WASHER 30MM PLASTIC $6.50
39 PH5528039 ATOMIZATION $6.50
40 PH5528040 FLUID NOZZLE 1.4MM $6.50
40-1 PH5528040-1 FLUID NOZZLE SET $17.00
41 PH5528041 FLUID NOZZLE PLUG $2.00
42 PH5528042 EXT TOOTH WASHER 30MM PLASTIC $1.00
43 PH5528043 DIRECTION SCREW M8-1 X 22 $1.00
44 PH5528044 *DISCD*DOMED SEAL WASHER 13 $1.00
45 PH5528045 SPRING 6 X 37 $1.00
46 PH5528046
TRIGGER PIN I
N/A
47 PH5528047 TRIGGER PIN II $1.00
48 PH5528048
TRIGGER
N/A
49 PH5528049
Replaced By PEC02M
E-CLIP 4MM
N/A View Replacement
50 PH5528050
Replaced By PEC02M
E-CLIP 4MM
N/A View Replacement
39 PH552839
*DISCD*ATOMIZATION
Item is no longer available
N/A
