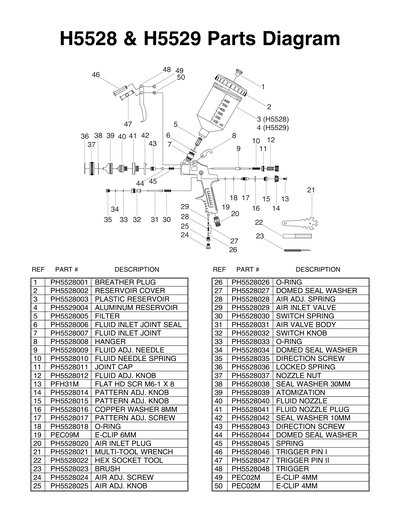

Parts for H5529 Deluxe Spray Gun with Metal Cup

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*ALUMINUM RESERVOIR ASSY
Price
N/A
2
*DISCD*RESERVOIR COVER
36
*DISCD* LOCKED SPRING 6 X 37
Price
N/A
4
*DISCD*ALUMINUM RESERVOIR ASSY
Item is no longer available
Price
N/A
4-1
PLASTIC COVER
5
*DISCD* FILTER
Price
N/A
6
*DISCD*FLUID INLET JOINT SEAL
Price
N/A
7
*DISCD* FLUID INLET JOINT
Price
N/A
8
HANGER
Price
N/A
9
*DISCD* FLUID ADJUSTMENT NEEDLE
Price
N/A
10
*DISCD* FLUID NEEDLE SPRING 6.3 X 14
Price
N/A
11
*DISCD* JOINT CAP
Price
N/A
12
FLUID ADJUSTMENT KNOB
Price
N/A
13
FLAT HD SCR M6-1 X 8
Price
N/A
14
PATTERN ADJ KNOB
Price
N/A
15
PATTERN ADJ KNOB
Price
N/A
16
COPPER WASHER 8MM
Price
N/A
17
PATTERN ADJ SCREW M13-1 X 30.3
Price
N/A
18
O-RING 6 X 2
Price
N/A
19
E-CLIP 6MM
Price
N/A
20
AIR INLET PLUG
Price
N/A
21
MULTITOOL WRENCH
Price
N/A
22
HEX SOCKET TOOL
Price
N/A
23
*DISCD* BRUSH
Price
N/A
24
*DISCD* AIR ADJ SCREW 1/3 X 22, 19T
Price
N/A
25
*DISCD* AIR ADJ KNOB
Price
N/A
26
O-RING 2.5 X 2.1
Price
N/A
27
DOMED SEAL WASHER 4
Price
N/A
28
AIR ADJ SPRING 4 X 30
Price
N/A
29
*DISCD* AIR INLET VALVE
Price
N/A
30
SWITCH SPRING 5 X 35
Price
N/A
31
AIR VALVE BODY
Price
N/A
32
*DISCD* SWITCH KNOB
Price
N/A
33
O-RING 2.5 X 1.5 S3
Price
N/A
34
*DISCD* WAVY WASHER 2MM
Price
N/A
35
*DISCD* DIRECTION SCREW M10-1 X 8
Price
N/A
36
*DISCD* LOCKED SPRING 6 X 37
Price
N/A
37
NOZZLE NUT M34-1 X 8
Price
N/A
38
*DISCD* EXT TOOTH WASHER 30MM PLASTIC
Price
N/A
39
*DISCD* ATOMIZATION
Price
N/A
40
*DISCD* FLUID NOZZLE 1.4MM
Price
N/A
41
*DISCD* FLUID NOZZLE PLUG
Price
N/A
42
*DISCD* EXT TOOTH WASHER 30MM PLASTIC
Price
N/A
43
*DISCD* DIRECTION SCREW M8-1 X 22
Price
N/A
44
*DISCD*DOMED SEAL WASHER 13
Price
N/A
45
*DISCD* SPRING 6 X 37
Price
N/A
46
TRIGGER PIN I
Price
N/A
47
TRIGGER PIN II
Price
N/A
48
TRIGGER
Price
N/A
49
E-CLIP 4MM
Price
N/A
50
E-CLIP 4MM
Price
N/A
