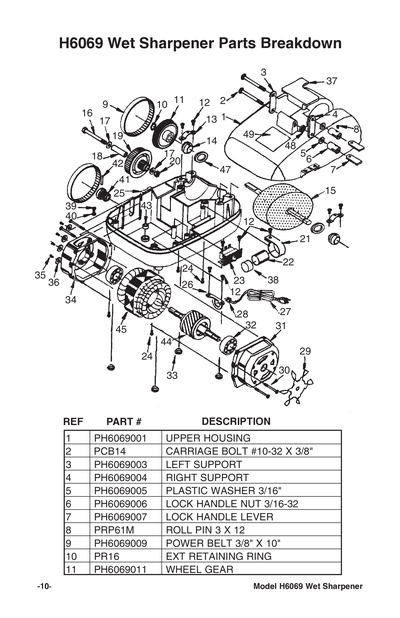

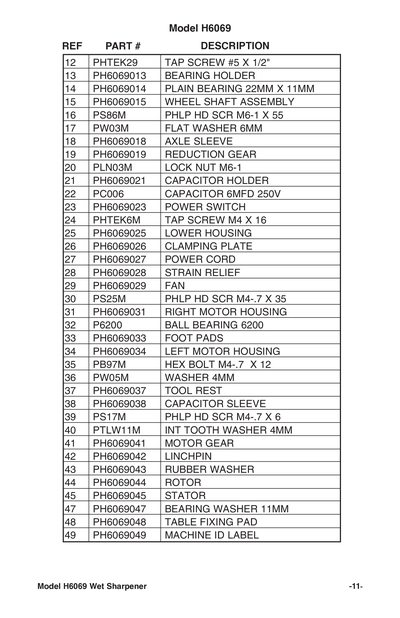

Parts for H6069 Wet Sharpener

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*UPPER HOUSING
2
Now: PCB14
CARRIAGE BOLT 3/16-32 X 3/8
Price
N/A
3
*DISCD*LEFT SUPPORT
Item is no longer available
Price
N/A
4
*DISCD*RIGHT SUPPORT
Item is no longer available
Price
N/A
5
*DISCD*PLASTIC WASHER 3/16"
Item is no longer available
Price
N/A
6
*DISCD*LOCK HANDLE NUT 3/16-32
7
*DISCD*LOCK HANDLE LEVER
8
*DISCD*ROLL PIN 3 X 12
Item is no longer available
Price
N/A
9
*DISCD*POWER BELT 3/8 X 10
Item is no longer available
Price
N/A
10
Now: PR16
EXT RETAINING RING 3/8
Price
N/A
11
*DISCD*WHEEL GEAR
12
*DISCD*TAP SCREW #5 X 1/2
Price
N/A
13
*DISCD*BEARING HOLDER
Item is no longer available
Price
N/A
14
*DISCD*PLAIN BEARING 22MM X 11MM
Item is no longer available
Price
N/A
15
*DISCD*WHEEL SHAFT ASSY
Item is no longer available
Price
N/A
16
Now: PS86M
PHLP HD SCR M5-1 X 55
Price
N/A
17
Now: PW03M
FLAT WASHER 6MM
Price
N/A
18
*DISCD*AXLE SLEEVE
Item is no longer available
Price
N/A
19
*DISCD*REDUCTION GEAR
20
LOCK NUT M6-1
Price
N/A
21
*DISCD*CAPACITOR HOLDER
Item is no longer available
Price
N/A
22
Now: PC006
*DISCD*R CAPACITOR 6M 250V
Price
N/A
23
*DISCD*POWER SWITCH
Item is no longer available
Price
N/A
24
TAP SCREW M4 X 16
Price
N/A
25
*DISCD*LOWER HOUSING
Item is no longer available
Price
N/A
26
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
27
*DISCD*POWER CORD
Item is no longer available
Price
N/A
28
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
29
*DISCD*FAN
Item is no longer available
Price
N/A
30
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
31
*DISCD*RIGHT MOTOR HOUSING
Item is no longer available
Price
N/A
32
BALL BEARING 6200ZZ
Price
N/A
33
*DISCD*FOOT PADS
Item is no longer available
Price
N/A
34
*DISCD*LEFT MOTOR HOUSING
Item is no longer available
Price
N/A
35
Now: PB97M
HEX BOLT M4-.7 X 12
Price
N/A
36
Now: PW05M
FLAT WASHER 4MM
Price
N/A
37
*DISCD*TOOL REST
Item is no longer available
Price
N/A
38
*DISCD*CAPACITOR SLEEVE
Item is no longer available
Price
N/A
39
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
40
INT TOOTH WASHER 4MM
Price
N/A
41
*DISCD*MOTOR GEAR
Item is no longer available
Price
N/A
42
*DISCD*LINCHPIN
Item is no longer available
Price
N/A
43
*DISCD*RUBBER WASHER
Item is no longer available
Price
N/A
44
*DISCD*ROTOR
Item is no longer available
Price
N/A
45
*DISCD*STATOR
Item is no longer available
Price
N/A
47
*DISCD*BEARING WASHER 11MM
Item is no longer available
Price
N/A
48
*DISCD*TABLE FIXING PAD
Item is no longer available
Price
N/A
49
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
