Parts for H6138 - 1/2" Impact Wrench

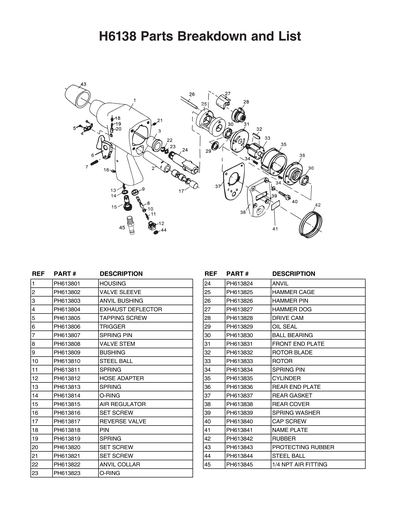

Part Diagram for H6138
Part Diagram for H6138

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*HOUSING
Item is no longer available
Price
N/A
2
*DISCD*VALVE SLEEVE
Item is no longer available
Price
N/A
3
*DISCD*ANVIL BUSHING
Item is no longer available
Price
N/A
4
*DISCD*EXHAUST DEFLECTOR
Item is no longer available
Price
N/A
5
*DISCD*TAPPING SCREW
Item is no longer available
Price
N/A
6
*DISCD*TRIGGER
Price
$2.60
7
*DISCD*SPRING PIN
Item is no longer available
Price
N/A
8
*DISCD*VALVE STEM
Item is no longer available
Price
N/A
9
*DISCD*BUSHING
Item is no longer available
Price
N/A
10
*DISCD*STEEL BALL
Item is no longer available
Price
N/A
11
*DISCD*SPRING
Item is no longer available
Price
N/A
12
*DISCD*HOSE ADAPTER
Item is no longer available
Price
N/A
13
*DISCD*SPRING
Item is no longer available
Price
N/A
14
O-RING 8.5 X 1.5 S9
Price
N/A
15
*DISCD*AIR REGULATOR
Item is no longer available
Price
N/A
16
*DISCD*SET SCREW
Item is no longer available
Price
N/A
17
*DISCD*REVERSE VALVE
Item is no longer available
Price
N/A
18
*DISCD*PIN
Item is no longer available
Price
N/A
19
*DISCD*SPRING
Item is no longer available
Price
N/A
20
*DISCD*SET SCREW
Item is no longer available
Price
N/A
21
*DISCD*SET SCREW
Item is no longer available
Price
N/A
22
*DISCD*ANVIL COLLAR
Item is no longer available
Price
N/A
23
O-RING 6.8 X 1.9 P7
Price
N/A
24
*DISCD*ANVIL
Item is no longer available
Price
N/A
25
*DISCD*HAMMER CAGE
Item is no longer available
Price
N/A
26
*DISCD*HAMMER PIN
Item is no longer available
Price
N/A
27
*DISCD*HAMMER DOG
Item is no longer available
Price
N/A
28
*DISCD*DRIVE CAM
Item is no longer available
Price
N/A
29
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
30
*DISCD*BALL BEARING 12 X 28 X 8
Item is no longer available
Price
N/A
31
*DISCD*FRONT END PLATE
Item is no longer available
Price
N/A
32
*DISCD*ROTOR BLADE
Item is no longer available
Price
N/A
33
*DISCD*ROTOR
Item is no longer available
Price
N/A
34
*DISCD*SPRING PIN
Item is no longer available
Price
N/A
35
*DISCD*CYLINDER
Item is no longer available
Price
N/A
36
*DISCD*REAR END PLATE
Item is no longer available
Price
N/A
37
*DISCD*REAR GASKET
Item is no longer available
Price
N/A
38
*DISCD*REAR COVER
Item is no longer available
Price
N/A
39
*DISCD*SPRING WASHER
Item is no longer available
Price
N/A
40
*DISCD*CAP SCREW
Item is no longer available
Price
N/A
41
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
42
*DISCD*RUBBER
Item is no longer available
Price
N/A
43
*DISCD*PROTECTING RUBBER
Item is no longer available
Price
N/A
44
*DISCD*STEEL BALL
Item is no longer available
Price
N/A
45
*DISCD*1/4 NPT AIR FITTING
Item is no longer available
Price
N/A
