Parts for H6144 - 34° Angle Finish Nailer 2-1/2"

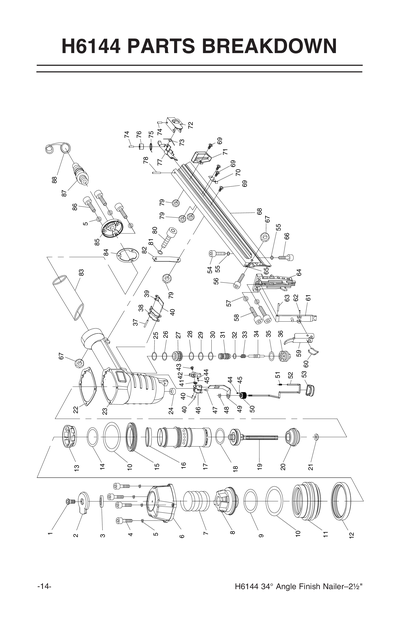

Part Diagram for H6144
Part Diagram for H6144
Part Diagram for H6144
Part Diagram for H6144

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

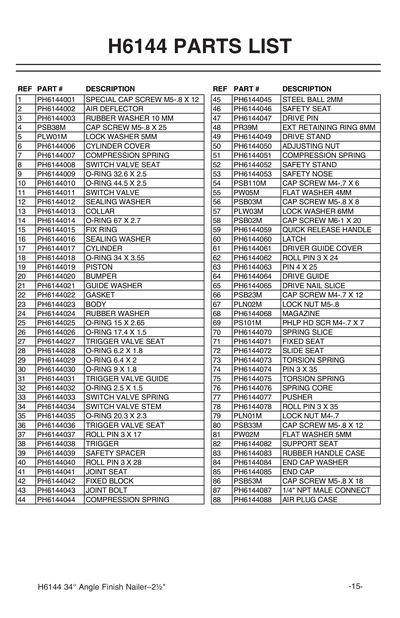

Ref #
Part #
Description
1
*DISCD*SPECIAL CAP SCREW M5-.8 X 12 V1.0
Item is no longer available
Price
N/A
2
*DISCD*AIR DEFLECTOR V1.02.05
Item is no longer available
Price
N/A
3
*DISCD*RUBBER WASHER 10MM V1.02.05
Item is no longer available
Price
N/A
4
CAP SCREW M5-.8 X 25
Price
N/A
5
LOCK WASHER 5MM
Price
N/A
6
*DISCD*CYLINDER COVER V1.02.05
Item is no longer available
Price
N/A
7
*DISCD*COMPRESSION SPRING V1.02.05
Item is no longer available
Price
N/A
8
*DISCD*SWITCH VALVE SEAT V1.02.05
Item is no longer available
Price
N/A
9
O-RING 31.7 X 3.5 P32
Price
N/A
10
*DISCD*O-RING 44.5 X 2.0 S45
Price
N/A
11
*DISCD*SWITCH VALVE V1.02.05
Item is no longer available
Price
N/A
12
*DISCD*SEALING WASHER V1.02.05
Item is no longer available
Price
N/A
13
*DISCD*COLLAR V1.02.05
Item is no longer available
Price
N/A
14
O-RING 66.5 X 2.0 S67
Price
N/A
15
*DISCD*FIX RING V1.02.05
Item is no longer available
Price
N/A
16
*DISCD*SEALING WASHER V1.02.05
Item is no longer available
Price
N/A
17
*DISCD*CYLINDER V1.02.05
Item is no longer available
Price
N/A
18
*DISCD*O-RING 34 X 3.55
Item is no longer available
Price
N/A
19
*DISCD*PISTON V1.02.05
Item is no longer available
Price
N/A
20
*DISCD*BUMPER V1.02.05
Item is no longer available
Price
N/A
21
*DISCD*GUIDE WASHER V1.02.05
Item is no longer available
Price
N/A
22
*DISCD*GASKET V1.02.05
Item is no longer available
Price
N/A
23
Price
$83.95
24
*DISCD*RUBBER WASHER V1.02.05
Item is no longer available
Price
N/A
25
O-RING 14.8 X 2.4 P15
Price
N/A
26
O-RING 17.5 X 1.5 S18
Price
N/A
27
*DISCD*TRIGGER VALVE SEAT V1.02.05
Item is no longer available
Price
N/A
28
O-RING 5.8 X 1.9 P6
Price
N/A
29
O-RING 5.8 X 1.9 P6
Price
N/A
30
O-RING 8.8 X 1.9 P9
Price
N/A
31
*DISCD*TRIGGER VALVE GUIDE V1.02.05
Item is no longer available
Price
N/A
32
O-RING 2.5 X 1.5 S3
Price
N/A
33
*DISCD*SWITCH VALVE SPRING V1.02.05
Item is no longer available
Price
N/A
34
*DISCD*SWITCH VALVE STEM V1.02.05
Item is no longer available
Price
N/A
35
O-RING 19.8 X 2.4 P20
Price
N/A
36
*DISCD*TRIGGER VALVE SEAT V1.02.05
Item is no longer available
Price
N/A
37
*DISCD*ROLL PIN 3 X 17 V1.02.05
Item is no longer available
Price
N/A
38
*DISCD*TRIGGER V1.02.05
Item is no longer available
Price
N/A
39
*DISCD*SAFETY SPACER V1.02.05
Item is no longer available
Price
N/A
40
*DISCD*ROLL PIN 3 X 28 V1.02.05
Item is no longer available
Price
N/A
41
*DISCD*JOINT SEAT V1.02.05
Price
$2.30
42
*DISCD*FIXED BLOCK V1.02.05
Item is no longer available
Price
N/A
43
*DISCD*JOINT BOLT V1.02.05
Item is no longer available
Price
N/A
44
*DISCD*COMPRESSION SPRING V1.02.05
Item is no longer available
Price
N/A
45
STEEL BALL 2MM
Price
N/A
46
*DISCD*SAFETY SEAT V1.02.05
Item is no longer available
Price
N/A
47
*DISCD*DRIVE PIN V1.02.05
Item is no longer available
Price
N/A
48
EXT RETAINING RING 8MM
Price
N/A
49
*DISCD*DRIVE STAND V1.02.05
Item is no longer available
Price
N/A
50
*DISCD*ADJUSTING NUT V1.02.05
Price
$4.35
51
*DISCD*COMPRESSION SPRING V1.02.05
Price
$3.45
52
*DISCD*SAFETY STAND V1.02.05
Price
$2.30
53
*DISCD*SAFETY NOSE V1.02.05
Price
$2.30
54
CAP SCREW M4-.7 X 6
Price
N/A
55
FLAT WASHER 4MM
Price
N/A
56
CAP SCREW M5-.8 X 8
Price
N/A
57
LOCK WASHER 6MM
Price
N/A
58
CAP SCREW M6-1 X 20
Price
N/A
59
*DISCD*QUICK RELEASE HANDLE V1.02.05
Item is no longer available
Price
N/A
60
*DISCD*LATCH V1.02.05
Item is no longer available
Price
N/A
61
*DISCD*DRIVER GUIDE COVER V1.02.05
Price
$6.65
62
*DISCD*ROLL PIN 3 X 24 V1.02.05
Item is no longer available
Price
N/A
63
*DISCD*PIN 4 X 25 V1.02.05
Item is no longer available
Price
N/A
64
*DISCD*DRIVE GUIDE V1.02.05
Price
$24.75
65
*DISCD*DRIVE NAIL SLICE V1.02.05
Item is no longer available
Price
N/A
66
CAP SCREW M4-.7 X 12
Price
N/A
67
LOCK NUT M5-.8
Price
N/A
68
*DISCD*MAGAZINE V1.02.05
Item is no longer available
Price
N/A
69
PHLP HD SCR M4-.7 X 8
Price
N/A
70
*DISCD*SPRING SLICE V1.02.05
Item is no longer available
Price
N/A
71
*DISCD*FIXED SEAT V1.02.05
Item is no longer available
Price
N/A
72
*DISCD*SLIDE SEAT V1.02.05
Item is no longer available
Price
N/A
73
*DISCD*TORSION SPRING V1.02.05
Item is no longer available
Price
N/A
74
*DISCD*PIN 3 X 35 V1.02.05
Item is no longer available
Price
N/A
75
TORSION SPRING V1.02.05
Price
$2.05
76
Price
$1.49
77
*DISCD*PUSHER V1.02.05
Item is no longer available
Price
N/A
78
*DISCD*ROLL PIN 3 X 35 V1.02.05
Item is no longer available
Price
N/A
79
LOCK NUT M4-.7
Price
N/A
80
CAP SCREW M5-.8 X 12
Price
N/A
81
FLAT WASHER 5MM
Price
N/A
82
*DISCD*SUPPORT SEAT V1.02.05
Item is no longer available
Price
N/A
83
*DISCD*RUBBER HANDLE CASE V1.02.05
Item is no longer available
Price
N/A
84
*DISCD*END CAP WASHER V1.02.05
Item is no longer available
Price
N/A
85
*DISCD*END CAP V1.02.05
Price
$7.50
86
CAP SCREW M5-.8 X 18
Price
N/A
87
*DISCD*MALE CONNECT 1/4" NPT V1.02.05
Item is no longer available
Price
N/A
88
*DISCD*AIR PLUG CASE V1.02.05
Price
$1.49
MANUAL
*DISCD*MANUAL FOR G6144 V1.02.05
Price
$13.25
