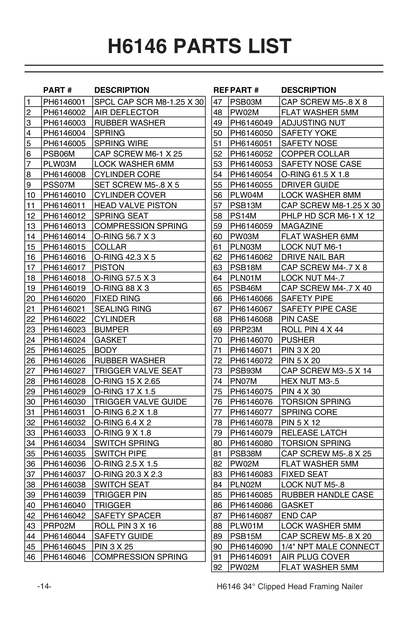

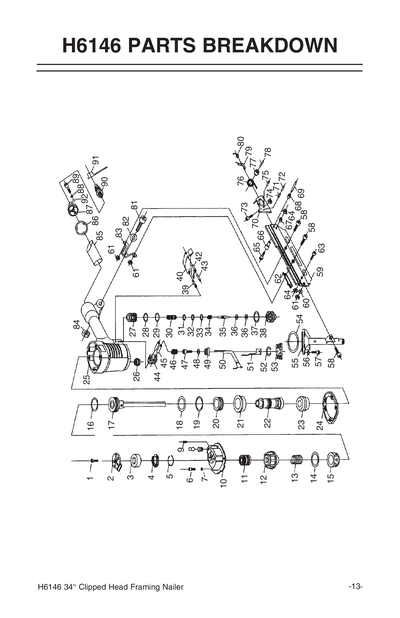

Parts for H6146 - 34 Degree Clipped Head Framing Nailer

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 PH6146001 SPCL CAP SCR M8-1.25 X 30 $1.00
2 PH6146002 AIR DEFLECTOR $1.25
3 PH6146003 RUBBER WASHER $1.00
4 PH6146004 SPRING $1.00
5 PH6146005 SPRING WIRE $1.00
6 PH6146006
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
7 PH6146007
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
8 PH6146008 CYLINDER CORE $1.00
9 PH6146009
Replaced By PSS07M
SET SCREW M5-.8 X 5
 N/A View Replacement
10 PH6146010 CYLINDER COVER $5.25
11 PH6146011 HEAD VALVE PISTON $1.75
12 PH6146012 SPRING SEAT $3.75
13 PH6146013 COMPRESSION SPRING $1.50
14 PH6146014
Replaced By PORP056
O-RING 55.6 X 5.7 P56
 N/A View Replacement
15 PH6146015 COLLAR $2.50
16 PH6146016 O-RING 42.3 X 5 $1.00
17 PH6146017 PISTON $10.50
18 PH6146018
Replaced By PORP058
O-RING 57.6 X 5.7 P58
 N/A View Replacement
19 PH6146019
Replaced By POR0080
O-RING 88 X 3
 N/A View Replacement
20 PH6146020 FIXED RING $1.25
21 PH6146021 SEALING RING $1.50
22 PH6146022 CYLINDER $11.75
23 PH6146023 BUMPER $2.25
24 PH6146024 GASKET $1.50
25 PH6146025 BODY $27.75
26 PH6146026 RUBBER WASHER $1.50
27 PH6146027 TRIGGER VALVE SEAT $1.75
28 PH6146028
Replaced By PORP015
O-RING 14.8 X 2.4 P15
 N/A View Replacement
29 PH6146029 O-RING 17 X 1.5 $1.00
30 PH6146030 TRIGGER VALVE GUIDE $1.25
31 PH6146031
Replaced By PORP006
O-RING 5.8 X 1.9 P6
 N/A View Replacement
32 PH6146032
Replaced By PORP006
O-RING 5.8 X 1.9 P6
 N/A View Replacement
33 PH6146033
Replaced By PORP009
O-RING 8.8 X 1.9 P9
 N/A View Replacement
34 PH6146034 SWITCH SPRING $1.00
35 PH6146035 SWITCH PIPE $1.25
36 PH6146036
Replaced By PORS003
O-RING 2.5 X 1.5 S3
 N/A View Replacement
37 PH6146037
Replaced By PORP020
O-RING 19.8 X 2.4 P20
 N/A View Replacement
38 PH6146038 SWITCH SEAT $2.25
39 PH6146039 TRIGGER PIN $1.00
40 PH6146040 TRIGGER $1.50
42 PH6146042 SAFETY SPACER $1.00
43 PH6146043
Replaced By PRP02M
ROLL PIN 3 X 16
 N/A View Replacement
44 PH6146044 SAFETY GUIDE $1.75
45 PH6146045
Replaced By PH6145045
PIN 3 X 25
 N/A View Replacement
46 PH6146046 COMPRESSION SPRING $1.00
47 PH6146047
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
 N/A View Replacement
48 PH6146048
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
49 PH6146049 ADJUSTING NUT $1.25
50 PH6146050 SAFETY YOKE $1.75
51 PH6146051 SAFETY NOSE $1.75
52 PH6146052 COPPER COLLAR $1.00
53 PH6146053 SAFETY NOSE CASE $1.00
54 PH6146054
Replaced By PORP062
O-RING 61.6 X 5.7 P62
 N/A View Replacement
55 PH6146055 DRIVER GUIDE $19.00
56 PH6146056
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
57 PH6146057
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
 N/A View Replacement
58 PH6146058
Replaced By PS14M
PHLP HD SCR M6-1 X 12
 N/A View Replacement
59 PH6146059 MAGAZINE $24.25
60 PH6146060
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
61 PH6146061
Replaced By PLN03M
LOCK NUT M6-1
 N/A View Replacement
62 PH6146062 DRIVE NAIL BAR $1.75
63 PH6146063
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
 N/A View Replacement
64 PH6146064
Replaced By PLN01M
LOCK NUT M4-.7
 N/A View Replacement
65 PH6146065
Replaced By PCAP46M
CAP SCREW M4-.7 X 40
 N/A View Replacement
66 PH6146066 SAFETY PIPE $1.00
67 PH6146067 SAFETY PIPE CASE $1.00
68 PH6146068 PIN CASE $1.00
69 PH6146069
Replaced By PRP23M
ROLL PIN 4 X 44
 N/A View Replacement
70 PH6146070 PUSHER $3.50
71 PH6146071
Replaced By PH6145072
PIN 3 X 20
 N/A View Replacement
72 PH6146072 PIN 5 X 20 $1.00
73 PH6146073
Replaced By PCAP93M
CAP SCREW M3-.5 X 14
 N/A View Replacement
74 PH6146074
Replaced By PN07M
HEX NUT M3-.5
 N/A View Replacement
75 PH6146075 PIN 4 X 30 $1.00
76 PH6146076 TORSION SPRING $4.25
77 PH6146077 SPRING CORE $1.50
78 PH6146078 PIN 5 X 12 $1.00
79 PH6146079 RELEASE LATCH $1.25
80 PH6146080 TORSION SPRING $1.00
81 PH6146081
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
 N/A View Replacement
82 PH6146082
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
83 PH6146083 FIXED SEAT $2.25
84 PH6146084
Replaced By PLN02M
LOCK NUT M5-.8
 N/A View Replacement
85 PH6146085 RUBBER HANDLE CASE $1.50
86 PH6146086 GASKET $1.00
87 PH6146087 END CAP $3.50
88 PH6146088
Replaced By PLW01M
LOCK WASHER 5MM
 N/A View Replacement
89 PH6146089
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
 N/A View Replacement
90 PH6146090 MALE CONNECT 1/4NPT $1.00
91 PH6146091 AIR PLUG COVER $1.00
92 PH6146092
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
93 PH6146093 O-RING REPAIR KIT $12.25
MANUAL PH6146MANUAL MANUAL FOR H6146 02/05 $11.50
