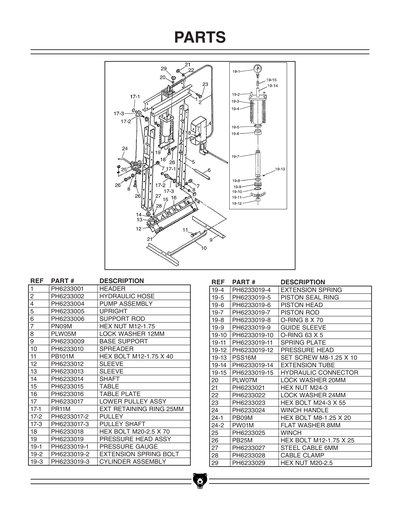

Parts for H6233 50 Ton Shop Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*HEADER
Item is no longer available
Price
N/A
2
*DISCD*HYDRAULIC HOSE
4
*DISCD*PUMP ASSY V1.02.05
Item is no longer available
Price
N/A
4A
*DISCD*SINGLE SPD PUMP ASSY V2.10.06
Item is no longer available
Price
N/A
4A-1
*DISCD*PUMP HANDLE
5
*DISCD*UPRIGHT
6
*DISCD*SUPPORT ROD
7
Now: PN09M
HEX NUT M12-1.75
Price
N/A
8
LOCK WASHER 12MM
Price
N/A
9
*DISCD*BASE SUPPORT
10
*DISCD*SPREADER
11
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
12
*DISCD*SLEEVE
Item is no longer available
Price
N/A
13
*DISCD*SLEEVE
Item is no longer available
Price
N/A
14
*DISCD*SHAFT
Item is no longer available
Price
N/A
15
*DISCD*TABLE
16
*DISCD*TABLE PLATE
17
*DISCD*PULLEY ASSY LOWER
Item is no longer available
Price
N/A
17-1
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
17-2
*DISCD*PULLEY
Item is no longer available
Price
N/A
17-3
*DISCD*PULLEY SHAFT
18
*DISCD*HEX BOLT M20-2.5 X 70
Item is no longer available
Price
N/A
19
*DISCD*PRESSURE HEAD ASSY
Item is no longer available
Price
N/A
19-1
*DISCD*HYDRAULIC PRESSURE GAUGE W/BLACK
Price
N/A
19-10
O-RING 61.6 X 5.7 P62
Price
N/A
19-11
*DISCD*SPRING PLATE
19-12
*DISCD*PRESSURE HEAD
19-13
SET SCREW M8-1.25 X 10
Price
N/A
19-14
*DISCD*EXTENSION TUBE
19-15
*DISCD*HYDRAULIC CONNECTOR
Item is no longer available
Price
N/A
19-2
*DISCD*EXTENSION SPRING BOLT
19-3
*DISCD*CYLINDER
19-4
*DISCD*EXTENSION SPRING
Item is no longer available
Price
N/A
19-5
*DISCD*PISTON SEAL RING
Item is no longer available
Price
N/A
19-6
*DISCD*PISTON HEAD
19-7
*DISCD*PISTON ROD
Item is no longer available
Price
N/A
19-8
*DISCD*O-RING 8 X 70
Item is no longer available
Price
N/A
19-9
*DISCD*GUIDE SLEEVE
Item is no longer available
Price
N/A
20
LOCK WASHER 20MM
Price
N/A
21
Now: PN44M
HEX NUT M24-3
Price
N/A
22
LOCK WASHER 24MM
Price
N/A
23
*DISCD*HEX BOLT M24-3 X 55
24
*DISCD*WINCH HANDLE
24-1
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
24-2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
25
*DISCD*WINCH
26
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
27
*DISCD*STEEL CABLE 6MM
28
*DISCD*CABLE CLAMP
29
Now: PN28M
HEX NUT M20-2.5
Price
N/A
30
PRESS GAUGE PARAMETERS LABEL
KIT
*DISCD*O-RING KIT
MANUAL
MANUAL FOR H6233 08/04
Item is no longer available
Price
N/A
