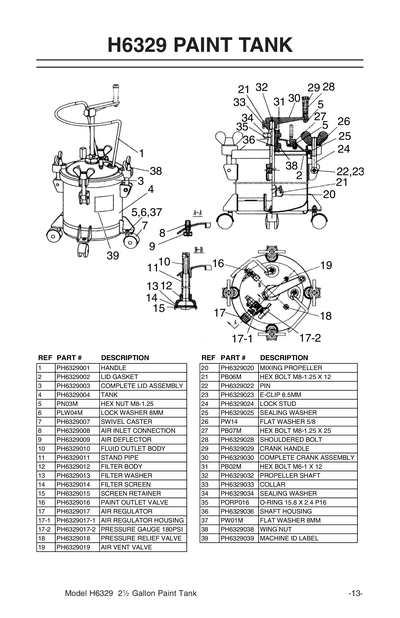

Parts for H6329 Paint Tank w/ Gauges, 2-1/2 Gal.

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD* HANDLE
2
*DISCD* LID GASKET
3
*DISCD* COMPLETE LID ASSEMBLY
3-1
*DISCD* 45PSI LABEL
Item is no longer available
Price
N/A
4
*DISCD* TANK
Item is no longer available
Price
N/A
5
Now: PN03M
HEX NUT M8-1.25
Price
N/A
6
LOCK WASHER 8MM
Price
N/A
7
*DISCD* SWIVEL CASTER
8
*DISCD* AIR INLET CONNECTION
9
*DISCD* AIR DEFLECTOR
10
*DISCD* FLUID OUTLET BODY
11
*DISCD* STAND PIPE
Item is no longer available
Price
N/A
12
*DISCD* FILTER BODY
13
*DISCD* FILTER WASHER
14
*DISCD* FILTER SCREEN
15
*DISCD* SCREEN RETAINER
16
*DISCD* PAINT OUTLET VALVE
17
*DISCD* AIR REGULATOR
Item is no longer available
Price
N/A
17-1
*DISCD* AIR REGULATOR
Price
N/A
17-2
*DISCD* PRESSURE GAUGE 180PSI
18
*DISCD* PRESSURE RELIEF VALVE
Item is no longer available
Price
N/A
19
*DISCD* AIR VENT VALVE
20
*DISCD* MIXING PROPELLER
21
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
22
*DISCD* PIN
Item is no longer available
Price
N/A
23
E-CLIP 8.5MM
Price
N/A
24
*DISCD* STUD-SE M16-1.5 X 125.5 64.5 IRO
25
*DISCD* SEALING WASHER
26
Now: PW14
FLAT WASHER 5/8
Price
N/A
27
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
28
*DISCD* SHOULDERED BOLT
Item is no longer available
Price
N/A
29
*DISCD* CRANK HANDLE
30
*DISCD* COMPLETE CRANK ASSEMBLY
Item is no longer available
Price
N/A
31
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
32
*DISCD* PROPELLER SHAFT
Item is no longer available
Price
N/A
33
*DISCD* COLLAR
Item is no longer available
Price
N/A
34
*DISCD* FENDER WASHER 34MM PLASTIC
36
*DISCD* SHAFT HOUSING
Item is no longer available
Price
N/A
37
Now: PW01M
FLAT WASHER 8MM
Price
N/A
38
BUTTERFLY NUT
Price
N/A
39
MACHINE ID LABEL
MANUAL
MANUAL FOR H6329 05/09
