Parts for H6332 - Air Nailer

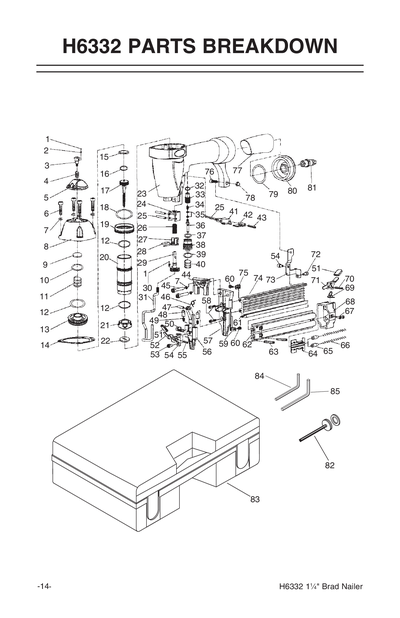

Part Diagram for H6332
Part Diagram for H6332
Part Diagram for H6332
Part Diagram for H6332

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

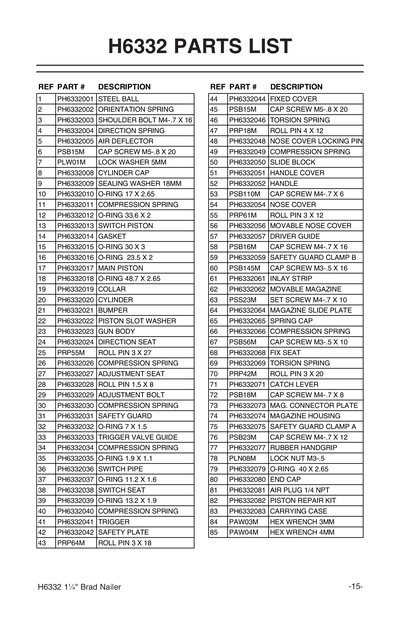

Ref #
Part #
Description
1
STEEL BALL 2.5MM
Price
N/A
2
*DISCD*ORIENTATION SPRING
Price
$1.49
3
*DISCD*SHOULDER BOLT M4-.7 X 16
Price
$1.49
4
*DISCD*DIRECTION SPRING
Item is no longer available
Price
N/A
5
*DISCD*AIR DEFLECTOR
Item is no longer available
Price
N/A
6
CAP SCREW M5-.8 X 20
Price
N/A
7
LOCK WASHER 5MM
Price
N/A
8
*DISCD*CYLINDER CAP
Item is no longer available
Price
N/A
9
*DISCD*SEALING WASHER 18MM
Price
$1.49
10
*DISCD* O-RING 17 X 2.65
Price
N/A
11
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
12
*DISCD*O-RING 33.6 X 2
Price
$1.49
13
*DISCD*SWITCH PISTON
Item is no longer available
Price
N/A
14
*DISCD*GASKET FOR CYLINDER CAP
Item is no longer available
Price
N/A
15
*DISCD*O-RING 30 X 3
Price
$1.49
16
*DISCD*O-RING 23.5 X 2
Price
$1.49
17
*DISCD*MAIN PISTON
Item is no longer available
Price
N/A
18
*DISCD*O-RING 48.7 X 2.65
Price
$1.49
19
*DISCD*COLLAR
Item is no longer available
Price
N/A
20
*DISCD*CYLINDER
Item is no longer available
Price
N/A
21
*DISCD*BUMPER
Price
$1.49
22
*DISCD*PISTON SLOT WASHER
Item is no longer available
Price
N/A
23
*DISCD*GUN BODY
Item is no longer available
Price
N/A
24
*DISCD*DIRECTION SEAT
Item is no longer available
Price
N/A
25
ROLL PIN 3 X 27
Price
N/A
26
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
27
*DISCD*ADJUSTMENT SEAT
Item is no longer available
Price
N/A
28
*DISCD*ROLL PIN 1.5 X 8
Item is no longer available
Price
N/A
29
*DISCD*ADJUSTMENT BOLT
Price
$1.49
30
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
31
*DISCD*SAFETY NOZZLE
Price
$1.49
32
*DISCD*O-RING 7 X 1.5
Price
$1.49
33
*DISCD*TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
34
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
35
*DISCD* O-RING 1.9 X 1.1
Price
N/A
36
*DISCD*SWITCH PIPE
Item is no longer available
Price
N/A
37
*DISCD*O-RING 11.2 X 1.6
Price
$1.49
38
*DISCD*SWITCH SEAT
Item is no longer available
Price
N/A
39
*DISCD* O-RING 13.2 X 1.9
Price
N/A
40
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
41
*DISCD*TRIGGER
Item is no longer available
Price
N/A
42
*DISCD*SAFETY PLATE
Item is no longer available
Price
N/A
43
ROLL PIN 3 X 18
Price
N/A
44
*DISCD*FIXED COVER
Price
$1.49
45
CAP SCREW M5-.8 X 20
Price
N/A
46
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
47
ROLL PIN 4 X 12
Price
N/A
48
*DISCD*NOSE COVER LOCKING PIN
Item is no longer available
Price
N/A
49
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
50
*DISCD*SLIDE BLOCK
Item is no longer available
Price
N/A
51
*DISCD*HANDLE COVER
Item is no longer available
Price
N/A
52
*DISCD*HANDLE
Item is no longer available
Price
N/A
53
CAP SCREW M4-.7 X 6
Price
N/A
54
*DISCD*NOSE COVER
Item is no longer available
Price
N/A
55
ROLL PIN 3 X 12
Price
N/A
56
*DISCD*MOVABLE NOSE COVER
Item is no longer available
Price
N/A
57
*DISCD*DRIVER GUIDE
Item is no longer available
Price
N/A
58
CAP SCREW M4-.7 X 16
Price
N/A
59
*DISCD*SAFETY GUARD CLAMP B
Item is no longer available
Price
N/A
60
CAP SCREW M3-.5 X 16
Price
N/A
61
*DISCD*INLAY STRIP
Item is no longer available
Price
N/A
62
*DISCD*MOVABLE MAGAZINE
Item is no longer available
Price
N/A
63
SET SCREW M4-.7 X 10
Price
N/A
64
*DISCD*MAGAZINE SLIDE PLATE
Item is no longer available
Price
N/A
65
*DISCD*SPRING CAP
Item is no longer available
Price
N/A
66
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
67
CAP SCREW M3-.5 X 10
Price
N/A
68
*DISCD*FIX SEAT
Item is no longer available
Price
N/A
69
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
70
ROLL PIN 3 X 20
Price
N/A
71
*DISCD*CATCH LEVER
Item is no longer available
Price
N/A
72
CAP SCREW M4-.7 X 8
Price
N/A
73
*DISCD*MAG CONNECTOR PLATE
Item is no longer available
Price
N/A
74
*DISCD*MAGAZINE HOUSING
Item is no longer available
Price
N/A
75
*DISCD*SAFETY GUARD CLAMP A
Item is no longer available
Price
N/A
76
CAP SCREW M4-.7 X 12
Price
N/A
77
*DISCD*RUBBER HANDGRIP
Item is no longer available
Price
N/A
78
LOCK NUT M3-.5
Price
N/A
79
*DISCD*O-RING 40 X 2.65
Price
$1.49
80
*DISCD*END CAP
Item is no longer available
Price
N/A
81
*DISCD*AIR PLUG 1/4 NPT
Item is no longer available
Price
N/A
82
*DISCD*PISTON REPAIR KIT
Item is no longer available
Price
N/A
83
*DISCD*CARRYING CASE
Item is no longer available
Price
N/A
84
HEX WRENCH 3MM
Price
N/A
85
HEX WRENCH 4MM
Price
N/A
