Parts for H6363 - 3/8" Straight Air Drill 2,600 RPM

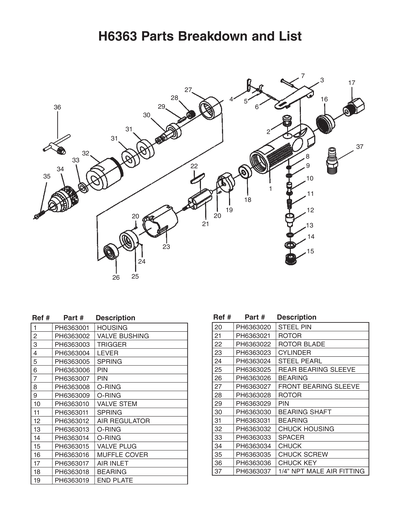

Part Diagram for H6363
Part Diagram for H6363

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*HOUSING
Item is no longer available
Price
N/A
2
*DISCD*VALVE BUSHING
Item is no longer available
Price
N/A
3
*DISCD*TRIGGER
Item is no longer available
Price
N/A
4
*DISCD*LEVER
Item is no longer available
Price
N/A
5
*DISCD*SPRING
Item is no longer available
Price
N/A
6
*DISCD*PIN
Item is no longer available
Price
N/A
7
*DISCD*PIN
Item is no longer available
Price
N/A
8
*DISCD*O-RING
Item is no longer available
Price
N/A
9
*DISCD*O-RING
Item is no longer available
Price
N/A
10
*DISCD*VALVE STEM
Item is no longer available
Price
N/A
11
*DISCD*SPRING
Item is no longer available
Price
N/A
12
*DISCD*AIR REGULATOR
Item is no longer available
Price
N/A
13
*DISCD*O-RING
Item is no longer available
Price
N/A
14
*DISCD*O-RING
Item is no longer available
Price
N/A
15
*DISCD*VALVE PLUG
Item is no longer available
Price
N/A
16
*DISCD*MUFFLE COVER
Item is no longer available
Price
N/A
17
*DISCD*AIR INLET
Item is no longer available
Price
N/A
18
*DISCD*BEARING
Item is no longer available
Price
N/A
19
*DISCD*END PLATE
Item is no longer available
Price
N/A
20
*DISCD*STEEL PIN
Item is no longer available
Price
N/A
21
*DISCD*ROTOR
Item is no longer available
Price
N/A
22
*DISCD*ROTOR BLADE
Item is no longer available
Price
N/A
23
*DISCD*CYLINDER
Item is no longer available
Price
N/A
24
*DISCD*STEEL PEARL
Item is no longer available
Price
N/A
25
*DISCD*REAR BEARING SLEEVE
Item is no longer available
Price
N/A
26
*DISCD*BEARING
Item is no longer available
Price
N/A
27
*DISCD*FRONT BEARING SLEEVE
Item is no longer available
Price
N/A
28
*DISCD*ROTOR
Item is no longer available
Price
N/A
29
*DISCD*PIN
Item is no longer available
Price
N/A
30
*DISCD*BEARING SHAFT
Item is no longer available
Price
N/A
31
*DISCD*BEARING
Item is no longer available
Price
N/A
32
*DISCD*CHUCK HOUSING
Item is no longer available
Price
N/A
33
*DISCD*SPACER
Item is no longer available
Price
N/A
34
*DISCD*CHUCK
Item is no longer available
Price
N/A
35
*DISCD*CHUCK SCREW
Item is no longer available
Price
N/A
36
*DISCD*CHUCK KEY
Item is no longer available
Price
N/A
37
*DISCD*1/4" NPT MALE AIR PLUG
Item is no longer available
Price
N/A
