Parts for H7507 - 18" x 27" Router Extension Table for Table Saw

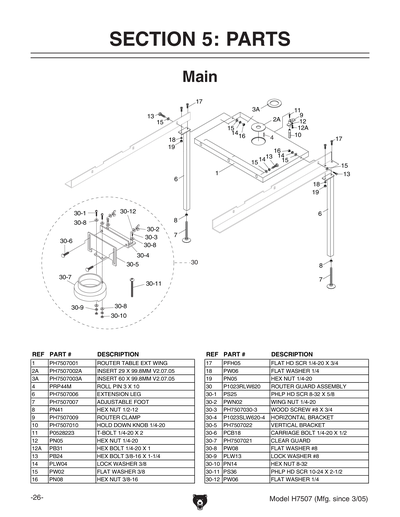

Part Diagram for H7507
Part Diagram for H7507

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$452.85
2
INSERT 29 X 99.8MM V2.07.05
Price
N/A
2A
INSERT 29 X 99.8MM V2.07.05
Price
$8.35
3
INSERT 60 X 99.8MM V2.07.05
Price
N/A
3A
INSERT 60 X 99.8MM V2.07.05
Price
$9.70
4
ROLL PIN 3 X 10
Price
N/A
6
Price
$47.10
7
Price
$7.90
8
HEX NUT 1/2-12
Price
N/A
9
Price
$7.00
10
Price
$4.60
11
HOLD DOWN HEX BOLT 1/4-20 X 2
Price
$1.85
12
HEX NUT 1/4-20
Price
N/A
12A
HEX BOLT 1/4-20 X 1
Price
N/A
13
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
13V2
Nameplate - Large
Price
N/A
14
LOCK WASHER 3/8
Price
N/A
15
FLAT WASHER 3/8
Price
N/A
16
HEX NUT 3/8-16
Price
N/A
17
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
18
FLAT WASHER 1/4
Price
N/A
19
HEX NUT 1/4-20
Price
N/A
20
Price
$37.20
21
Price
$3.95
22
Price
$10.30
30
ROUTER GUARD ASSEMBLY
Price
N/A
30-1
PHLP HD SCR 8-32 X 5/8
Price
N/A
30-10
HEX NUT 8-32
Price
N/A
30-11
PHLP HD SCR 10-24 X 2-1/2
Price
N/A
30-12
FLAT WASHER 1/4
Price
N/A
30-2
WING NUT 1/4-20
Price
N/A
30-3
Price
$1.60
30-4
HORIZONTAL BRACKET
Price
N/A
30-5
VERTICAL BRACKET
Price
N/A
30-6
CARRIAGE BOLT 1/4-20 X 1/2
Price
N/A
30-7
CLEAR GUARD
Price
N/A
30-8
FLAT WASHER #8
Price
N/A
30-9
LOCK WASHER #8
Price
N/A
MAN
MANUAL H7507 MFD-03.05-05.23 V1.09.10
Price
$10.25
MANV2
MANUAL H7507 MFD-06.23+ V2.05.24
Price
$22.80
