Parts for H7509Z - Stand for G0441 Dust Collector

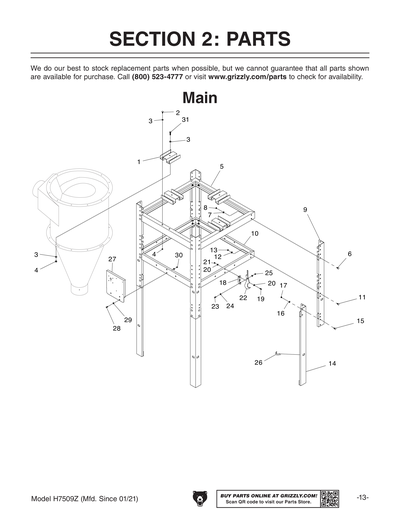

Part Diagram for H7509Z
Part Diagram for H7509Z
Part Diagram for H7509Z
Part Diagram for H7509Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

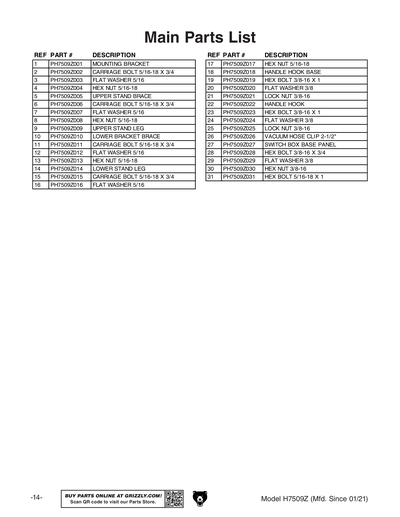

Ref #
Part #
Description
1
Price
$29.00
2
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
3
FLAT WASHER 5/16
Price
N/A
4
HEX NUT 5/16-18
Price
N/A
5
UPPER STAND BRACE V2.12.20
Price
N/A
6
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
7
FLAT WASHER 5/16
Price
N/A
8
HEX NUT 5/16-18
Price
N/A
9
UPPER STAND LEG V2.12.20
Price
N/A
10
LOWER BRACKET BRACE V2.12.20
Price
N/A
11
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
12
FLAT WASHER 5/16
Price
N/A
13
HEX NUT 5/16-18
Price
N/A
14
LOWER STAND LEG V2.12.20
Price
N/A
15
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
16
FLAT WASHER 5/16
Price
N/A
17
HEX NUT 5/16-18
Price
N/A
18
HANDLE HOOK BASE
Price
N/A
19
HEX BOLT 3/8-16 X 1
Price
N/A
20
FLAT WASHER 3/8
Price
N/A
21
LOCK NUT 3/8-16
Price
N/A
22
HANDLE HOOK
Price
N/A
23
HEX BOLT 3/8-16 X 1
Price
N/A
24
FLAT WASHER 3/8
Price
N/A
25
LOCK NUT 3/8-16
Price
N/A
26
VACUUM HOSE CLIP 2-1/2"
Price
N/A
27
Price
$40.95
28
HEX BOLT 3/8-16 X 3/4
Price
N/A
29
FLAT WASHER 3/8
Price
N/A
30
HEX NUT 3/8-16
Price
N/A
31
HEX BOLT 5/16-18 X 1
Price
N/A
MAN
MANUAL H7509Z MFD-01.21+ V1.10.22
Price
$21.95
