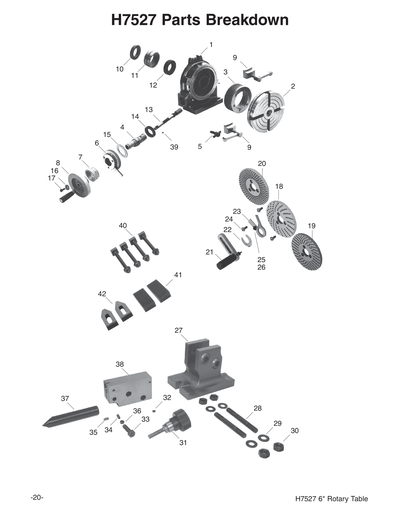

Parts for H7527 - 6" Rotary Table w/ Div. Plates
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

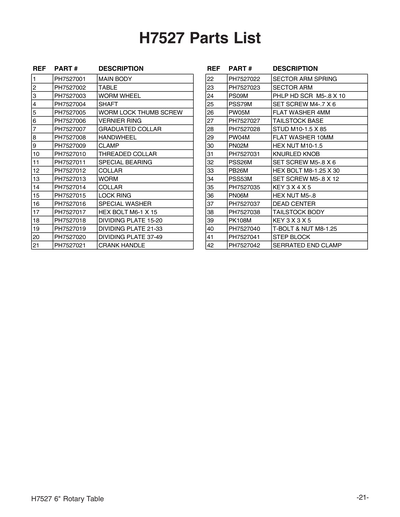

| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | PH7527001 | MAIN BODY | $151.00 | ||
| 2 | PH7527002 | TABLE | $120.75 | ||
| 3 | PH7527003 | WORM WHEEL | $53.75 | ||
| 4 | PH7527004 | SHAFT | $36.00 | ||
| 5 | PH7527005 | WORM LOCK THUMB SCREW | $9.00 | ||
| 6 | PH7527006 | VERNIER RING | $27.00 | ||
| 7 | PH7527007 | GRADUATE COLLAR | $36.00 | ||
| 8 | PH7527008 | HANDWHEEL W/HANDLE | $27.00 | ||
| 8-1 | PH7527008-1 | HANDWHEEL | $16.00 | ||
| 8-2 | PH7527008-2 | HANDLE | $12.00 | ||
| 9 | PH7527009 | CLAMP | $9.00 | ||
| 10 | PH7527010 | THREADED COLLAR | $27.00 | ||
| 11 | PH7527011 | MAIN BODY BEARING | $31.25 | ||
| 12 | PH7527012 | COLLAR | $22.50 | ||
| 13 | PH7527013 | WORM | $62.75 | ||
| 14 | PH7527014 | COLLAR | $22.50 | ||
| 15 | PH7527015 | LOCK RING | $22.50 | ||
| 16 | PH7527016 | HANDWHEEL WASHER | $4.50 | ||
| 17 |
PH7527017
Replaced By PB18M
|
HEX BOLT M6-1 X 15
|
N/A | View Replacement | |
| 18 | PH7527018 | DIVIDING PLATE 15-20 | $36.00 | ||
| 19 | PH7527019 | DIVIDING PLATE 21-33 | $36.00 | ||
| 20 | PH7527020 | DIVIDING PLATE 37-49 | $36.00 | ||
| 21 | PH7527021 | CRANK HANDLE | $15.75 | ||
| 22 | PH7527022 | SECTOR ARM SPRING | $4.50 | ||
| 23 | PH7527023 | SECTOR ARM | $36.00 | ||
| 24 |
PH7527024
Replaced By PS09
|
PHLP HD SCR 1/4-20 X 1/4
|
N/A | View Replacement | |
| 25 |
PH7527025
Replaced By PSS79M
|
SET SCREW M4-.7 X 6
|
N/A | View Replacement | |
| 26 |
PH7527026
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 27 | PH7527027 | TAILSTOCK BASE | $44.75 | ||
| 28 | PH7527028 | STUD-DE M10-1.5 X 85 25RH | $9.00 | ||
| 29 |
PH7527029
Replaced By PW04M
|
FLAT WASHER 10MM
|
N/A | View Replacement | |
| 30 |
PH7527030
Replaced By PN02M
|
HEX NUT M10-1.5
|
N/A | View Replacement | |
| 31 | PH7527031 | KNURLED KNOB | $4.50 | ||
| 32 |
PH7527032
Replaced By PSS26M
|
SET SCREW M5-.8 X 6
|
N/A | View Replacement | |
| 33 |
PH7527033
Replaced By PB26M
|
HEX BOLT M8-1.25 X 30
|
N/A | View Replacement | |
| 34 |
PH7527034
Replaced By PSS53M
|
SET SCREW M5-.8 X 12
|
N/A | View Replacement | |
| 35 | PH7527035 | KEY | $2.25 | ||
| 36 |
PH7527036
Replaced By PN06M
|
HEX NUT M5-.8
|
N/A | View Replacement | |
| 37 | PH7527037 | DEAD CENTER | $13.50 | ||
| 38 | PH7527038 | TAILSTOCK BODY | $44.75 | ||
| 39 |
PH7527039
Replaced By PK108M
|
KEY 3 X 3 X 5
|
N/A | View Replacement | |
| 40 | PH7527040 | T-BOLT & NUT M8-1.25 | $7.50 | ||
| 41 | PH7527041 | STEP BLOCK | $17.75 | ||
| 42 | PH7527042 | SERRATED END CLAMP | $15.75 |
