Parts for H7589 - Resaw Fence Complete For G0514

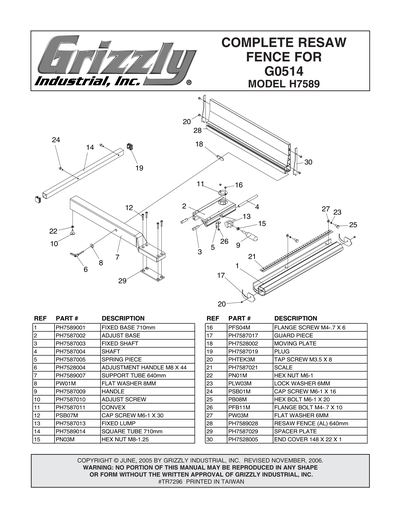

Part Diagram for H7589
Part Diagram for H7589

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$60.35
2
ADJUST BASE
Price
N/A
3
ALIGNMENT SHAFT
Price
N/A
4
SHAFT
Price
N/A
5
***USE P0555305***
Price
N/A
6
ADJUSTMENT HANDLE M8 X 44
Price
N/A
7
Price
$98.70
8
FLAT WASHER 8MM
Price
N/A
9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
11
CONVEX WINDOW
Price
N/A
12
CAP SCREW M6-1 X 25
Price
N/A
13
LOCK BLOCK
Price
N/A
14
Price
$24.15
15
HEX NUT M8-1.25
Price
N/A
16
FLANGE SCREW M4-.7 X 6
Price
N/A
17
GUARD PIECE
Price
N/A
18
MOVING PLATE
Price
N/A
19
***USE P0555319***
Price
N/A
20
TAP SCREW M3.5 X 8
Price
N/A
21
FENCE SCALE 18-1/2"
Price
N/A
22
HEX NUT M6-1
Price
N/A
23
LOCK WASHER 6MM
Price
N/A
24
CAP SCREW M6-1 X 16
Price
N/A
25
HEX BOLT M6-1 X 20
Price
N/A
26
FLANGE BOLT M4-.7 X 10
Price
N/A
27
FLAT WASHER 6MM
Price
N/A
28
Price
$86.85
29
SPACER PLATE
Price
N/A
30
FENCE END PLATE 148 X 22 X 1
Price
N/A
