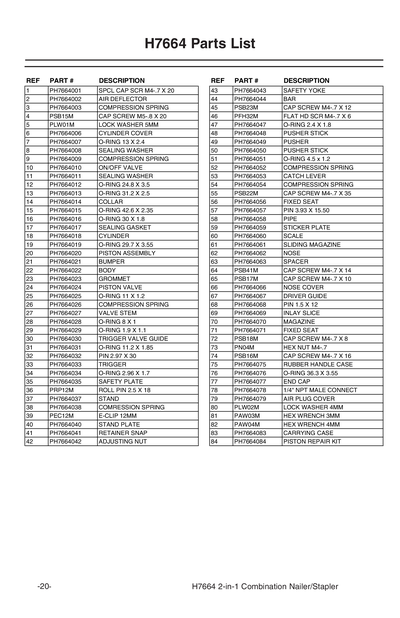

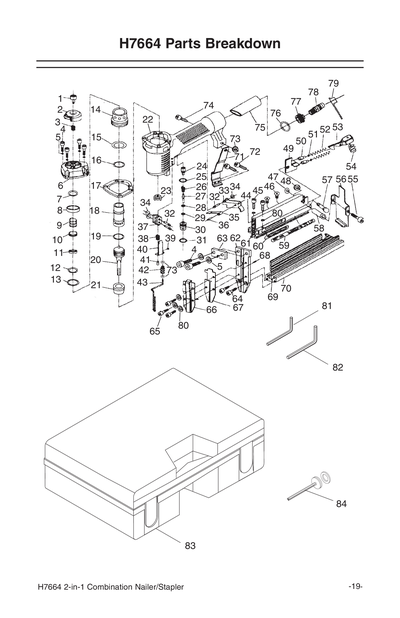

Parts for H7664 - Nailer/Stapler Kit
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | PH7664001 | SPCL CAP SCR M4-.7 X 20 | $1.00 | ||
| 2 | PH7664002 | AIR DEFLECTOR | $1.00 | ||
| 3 | PH7664003 | COMPRESSION SPRING | $1.00 | ||
| 4 |
PH7664004
Replaced By PCAP15M
|
CAP SCREW M5-.8 X 20
|
N/A | View Replacement | |
| 5 |
PH7664005
Replaced By PLW01M
|
LOCK WASHER 5MM
|
N/A | View Replacement | |
| 6 | PH7664006 | CYLINDER COVER | $2.25 | ||
| 7 | PH7664007 | O-RING 13 X 2.4 | $1.00 | ||
| 8 | PH7664008 |
*DISCD*SEALING WASHER
Item is no longer available
|
N/A | ||
| 9 | PH7664009 | COMPRESSION SPRING | $1.00 | ||
| 10 | PH7664010 | ON/OFF VALVE | $1.00 | ||
| 11 | PH7664011 | SEALING WASHER | $1.00 | ||
| 12 | PH7664012 | O-RING 24.8 X 3.5 | $1.00 | ||
| 13 | PH7664013 | O-RING 31.2 X 2.5 | $1.00 | ||
| 14 | PH7664014 | COLLAR | $1.00 | ||
| 15 | PH7664015 | O-RING 42.6 X 2.35 | $1.00 | ||
| 16 |
PH7664016
Replaced By PORS030
|
O-RING 29.5 X 2.0 S30
|
N/A | View Replacement | |
| 17 | PH7664017 | SEALING GASKET | $1.75 | ||
| 18 | PH7664018 | CYLINDER | $2.50 | ||
| 19 | PH7664019 | O-RING 29.7 X 3.55 | $1.00 | ||
| 20 | PH7664020 | PISTON ASSY | $10.00 | ||
| 21 | PH7664021 | BUMPER | $1.25 | ||
| 22 | PH7664022 | BODY | $8.50 | ||
| 23 | PH7664023 | GROMMET 20 X 8MM | $1.00 | ||
| 24 | PH7664024 | PISTON VALVE | $1.00 | ||
| 25 |
PH7664025
Replaced By PORP011-2
|
O-RING 11 X 2.4 P11.2
|
N/A | View Replacement | |
| 26 | PH7664026 | COMPRESSION SPRING | $1.00 | ||
| 27 | PH7664027 | VALVE STEM | $1.00 | ||
| 28 | PH7664028 | O-RING 8 X 1 | $1.00 | ||
| 29 |
PH7664029
Replaced By PH7679035
|
O-RING 1.9 X 1.1
|
N/A | View Replacement | |
| 30 | PH7664030 | TRIGGER VALVE GUIDE | $1.00 | ||
| 31 |
PH7664031
Replaced By PORP011-2
|
O-RING 11 X 2.4 P11.2
|
N/A | View Replacement | |
| 32 | PH7664032 | PIN 2.97 X 30 | $1.00 | ||
| 33 | PH7664033 | TRIGGER | $1.00 | ||
| 34 | PH7664034 | O-RING 2.96 X 1.7 | $1.00 | ||
| 35 | PH7664035 | SAFETY PLATE | $1.00 | ||
| 36 |
PH7664036
Replaced By PRP12M
|
ROLL PIN 2.5 X 18
|
N/A | View Replacement | |
| 37 | PH7664037 | STAND | $1.00 | ||
| 38 | PH7664038 | COMRESSION SPRING | $1.00 | ||
| 39 |
PH7664039
Replaced By PEC12M
|
E-CLIP 12MM
|
N/A | View Replacement | |
| 40 | PH7664040 | STAND PLATE | $1.00 | ||
| 41 | PH7664041 | RETAINER SNAP | $1.00 | ||
| 42 | PH7664042 | ADJUSTING NUT | $1.00 | ||
| 43 | PH7664043 | SAFETY YOKE | $1.00 | ||
| 44 | PH7664044 | BAR | $1.00 | ||
| 45 |
PH7664045
Replaced By PCAP23M
|
CAP SCREW M4-.7 X 12
|
N/A | View Replacement | |
| 46 |
PH7664046
Replaced By PFH27M
|
FLAT HD SCR M4-.7 X 6
|
N/A | View Replacement | |
| 47 | PH7664047 | O-RING 2.4 X 1.8 | $1.00 | ||
| 48 | PH7664048 | PUSHER STICK | $1.00 | ||
| 49 | PH7664049 | PUSHER | $1.00 | ||
| 50 | PH7664050 | PUSHER STICK | $1.00 | ||
| 51 | PH7664051 | O-RING 4.5 X 1.2 | $1.00 | ||
| 52 | PH7664052 | COMPRESSION SPRING | $1.25 | ||
| 53 | PH7664053 | PUSHER LATCH | $1.00 | ||
| 54 | PH7664054 | COMPRESSION SPRING | $1.00 | ||
| 55 |
PH7664055
Replaced By PCAP22M
|
CAP SCREW M4-.7 X 35
|
N/A | View Replacement | |
| 56 | PH7664056 | FIXED SEAT | $1.00 | ||
| 57 | PH7664057 | PIN 3.93 X 15.50 | $1.00 | ||
| 58 | PH7664058 | PIPE | $1.00 | ||
| 59 | PH7664059 | STICKER PLATE | $1.00 | ||
| 60 | PH7664060 | SCALE | $1.00 | ||
| 61 | PH7664061 | SLIDING MAGAZINE | $3.00 | ||
| 62 | PH7664062 | NOSE | $2.25 | ||
| 63 | PH7664063 | SPACER | $1.00 | ||
| 64 |
PH7664064
Replaced By PCAP41M
|
CAP SCREW M4-.7 X 14
|
N/A | View Replacement | |
| 65 |
PH7664065
Replaced By PCAP17M
|
CAP SCREW M4-.7 X 10
|
N/A | View Replacement | |
| 66 | PH7664066 | NOSE COVER | $12.50 | ||
| 67 | PH7664067 | DRIVER GUIDE | $1.00 | ||
| 68 | PH7664068 | PIN 1.5 X 12 | $1.00 | ||
| 69 | PH7664069 | INLAY SLICE | $1.00 | ||
| 70 | PH7664070 | MAGAZINE | $7.75 | ||
| 71 | PH7664071 | FIXED SEAT | $1.00 | ||
| 72 |
PH7664072
Replaced By PCAP18M
|
CAP SCREW M4-.7 X 8
|
N/A | View Replacement | |
| 73 |
PH7664073
Replaced By PN04M
|
HEX NUT M4-.7
|
N/A | View Replacement | |
| 74 |
PH7664074
Replaced By PCAP16M
|
CAP SCREW M4-.7 X 16
|
N/A | View Replacement | |
| 75 | PH7664075 | RUBBER HANDLE CASE | $1.00 | ||
| 76 | PH7664076 | O-RING 36.3 X 3.55 | $1.00 | ||
| 77 | PH7664077 | END CAP | $1.25 | ||
| 78 | PH7664078 | MALE CONNECT 1/4NPT | $1.00 | ||
| 79 | PH7664079 | AIR PLUG COVER | $1.00 | ||
| 80 |
PH7664080
Replaced By PLW02M
|
LOCK WASHER 4MM
|
N/A | View Replacement | |
| 81 |
PH7664081
Replaced By PAW03M
|
HEX WRENCH 3MM
|
N/A | View Replacement | |
| 82 |
PH7664082
Replaced By PAW04M
|
HEX WRENCH 4MM
|
N/A | View Replacement | |
| 83 | PH7664083 | CARRYING CASE | $7.75 | ||
| 84 | PH7664084 | PISTON REPAIR KIT | $10.00 | ||
| 85 | PH7664085 | COMPLETE O-RING KIT | $4.25 |
