Parts for H7665 - 21-Degree Framing Nailer

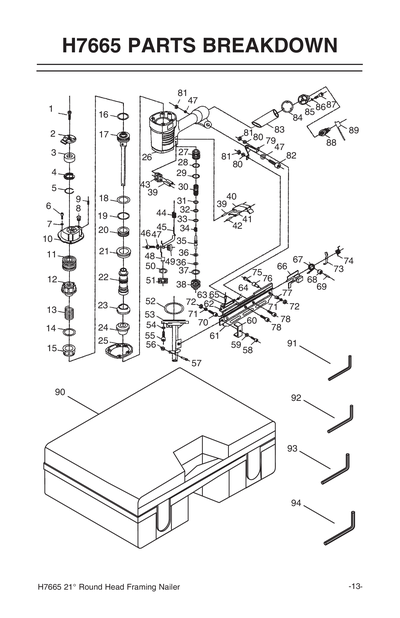

Part Diagram for H7665
Part Diagram for H7665
Part Diagram for H7665
Part Diagram for H7665

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CAP SCREW M8-1.25 X 16
Price
N/A
2
*DISCD* AIR DEFLECTOR
Item is no longer available
Price
N/A
3
*DISCD* DEFLECTOR RUBBER
Price
$1.49
4
*DISCD* COMPRESSION SPRING
Price
$1.49
5
*DISCD* SPRING WIRE
Price
$1.49
6
CAP SCREW M6-1 X 25
Price
N/A
7
LOCK WASHER 6MM
Price
N/A
8
*DISCD* CYLINDER CORE
Price
$1.49
9
CAP SCREW M5-.8 X 6
Price
N/A
10
*DISCD* CYLINDER COVER
Item is no longer available
Price
N/A
11
*DISCD* HEAD VALVE PISTON
Price
$8.95
12
*DISCD* SPRING SEAT
Price
$4.35
13
*DISCD* COMPRESSION SPRING
Item is no longer available
Price
N/A
14
*DISCD* SPRING WASHER
Price
$17.85
15
*DISCD* COLLAR
Price
$2.60
16
O-RING 42.3 X 5
Price
N/A
17
*DISCD* MAIN PISTON
Price
$23.00
18
*DISCD* O-RING 57.5 X 3
Item is no longer available
Price
N/A
19
O-RING 88 X 3
Price
N/A
20
*DISCD* FIXED RING
Price
$2.30
21
*DISCD* SEALING RING
Price
$2.60
22
*DISCD* CYLINDER
Item is no longer available
Price
N/A
23
*DISCD* BUMPER OUTER LANE
Price
$3.10
24
*DISCD* BUMPER
Item is no longer available
Price
N/A
25
*DISCD* CYLINDER WASHER
Price
$2.90
26
*DISCD* GUN BODY
Price
$40.85
27
*DISCD* TRIGGER VALVE SEAT
Item is no longer available
Price
N/A
28
O-RING 15 X 2.65
Price
N/A
29
*DISCD*O-RING 17 X 1.5
Price
N/A
30
*DISCD* TRIGGER VALVE GUIDE
Price
$1.49
31
*DISCD* O-RING 6.2 X 1.8
Price
$1.49
32
*DISCD* O-RING 6.4 X 2
Price
$1.49
33
*DISCD* O-RING 9 X 1.8
Price
$1.49
34
*DISCD* SWITCH SPRING
Price
$1.49
35
*DISCD* SWITCH PIPE
Price
$1.49
36
O-RING 2.5 X 1.5 S3
Price
N/A
37
*DISCD* O-RING 20.3 X 2.3
Price
$1.49
38
*DISCD* SWITCH SEAT
Price
$1.49
39
ROLL PIN 3 X 25
Price
N/A
40
*DISCD* TRIGGER
Item is no longer available
Price
N/A
41
*DISCD* SAFETY SPACER
Item is no longer available
Price
N/A
42
ROLL PIN 3 X 16
Price
N/A
43
*DISCD* SAFETY GUIDE
Item is no longer available
Price
N/A
44
*DISCD* COMPRESSION SPRING
Price
$1.49
45
*DISCD* SAFETY YOKE
Item is no longer available
Price
N/A
46
CAP SCREW M5-.8 X 8
Price
N/A
47
FLAT WASHER 5MM
Price
N/A
48
*DISCD* SAFETY NOSE
Item is no longer available
Price
N/A
49
*DISCD* DEPTH ADJUSTMENT NUT
Item is no longer available
Price
N/A
50
*DISCD* COLLAR
Price
$2.30
51
*DISCD* SAFETY NOSE CASE
Item is no longer available
Price
N/A
52
*DISCD* O-RING 61.5 X 1.8
Price
$1.49
53
*DISCD* DRIVE GUIDE
Item is no longer available
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
CAP SCREW M8-1.25 X 30
Price
N/A
56
E-CLIP 2.5MM
Price
N/A
57
*DISCD* PIN
Price
$1.49
58
CAP SCREW M6-1 X 12
Price
N/A
59
FLAT WASHER 6MM
Price
N/A
60
*DISCD* PLATE
Item is no longer available
Price
N/A
61
*DISCD* MAGAZINE
Item is no longer available
Price
N/A
62
*DISCD*WASHER CASE
Item is no longer available
Price
N/A
63
*DISCD* DRIVE NAIL BAR
Price
$1.49
64
*DISCD* SPACER
Price
$1.49
65
CAP SCREW M3-.5 X 5
Price
N/A
66
*DISCD* PUSHER
Price
$1.49
67
*DISCD* TORSION SPRING
Item is no longer available
Price
N/A
68
*DISCD* SPRING CORE
Item is no longer available
Price
N/A
69
*DISCD* PIN B4 X 25
Item is no longer available
Price
N/A
70
CAP SCREW M4-.7 X 10
Price
N/A
71
FLAT WASHER 4MM
Price
N/A
72
HEX NUT M4-.7
Price
N/A
73
*DISCD* RELEASE LATCH
Item is no longer available
Price
N/A
74
*DISCD* LATCH SPRING
Item is no longer available
Price
N/A
75
CAP SCREW M4-.7 X 40
Price
N/A
76
*DISCD* SAFETY PIPE
Item is no longer available
Price
N/A
77
*DISCD* SAFETY PIPE CASE
Item is no longer available
Price
N/A
78
CAP SCREW M5-.8 X 14
Price
N/A
79
*DISCD* FIXED SEAT
Item is no longer available
Price
N/A
80
FLAT WASHER 5MM
Price
N/A
81
HEX NUT M5-.8
Price
N/A
82
CAP SCREW M5-.8 X 25
Price
N/A
83
*DISCD* RUBBER HANDLE CASE
Item is no longer available
Price
N/A
84
*DISCD* END CAP WASHER
Item is no longer available
Price
N/A
85
*DISCD* END CAP
Item is no longer available
Price
N/A
86
FLAT WASHER 5MM
Price
N/A
87
CAP SCREW M5-.8 X 20
Price
N/A
88
*DISCD* AIR PLUG 1/4" NPT MALE
Item is no longer available
Price
N/A
89
*DISCD* AIR PLUG DUST CAP
Price
$1.49
90
*DISCD* CARRYING CASE
Price
$10.35
91
HEX WRENCH 3MM
Price
N/A
92
HEX WRENCH 4MM
Price
N/A
93
HEX WRENCH 5MM
Price
N/A
94
HEX WRENCH 6MM
Price
N/A
95
*DISCD* PISTON REPAIR KIT
Item is no longer available
Price
N/A
96
*DISCD*O-RING REPAIR KIT
Price
N/A
MANUAL
MANUAL FOR H7665 07/05
Price
$21.95
