Parts for H7668 - Professional Spray Set 2 qt.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

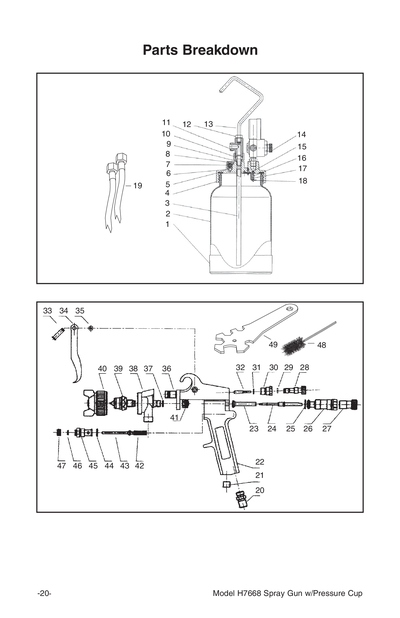

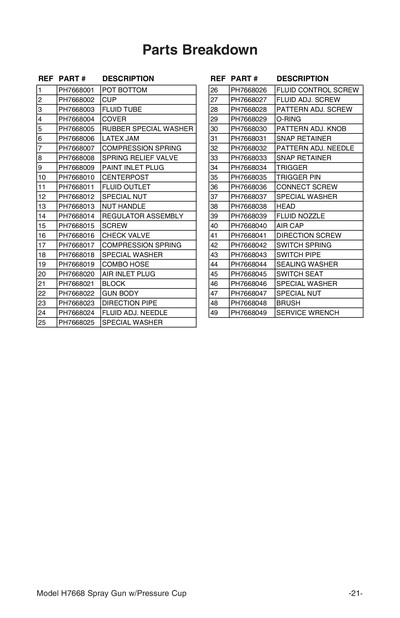

Ref # Part # Description Price Qty
1 PH7668001 POT BOTTOM $2.25
2 PH7668002 CUP $13.50
3 PH7668003 FLUID TUBE $1.00
4 PH7668004 COVER $2.25
5 PH7668005 CUP RUBBER WASHER $1.00
6 PH7668006 LATEX JAM $1.00
7 PH7668007 COMPRESSION SPRING $1.00
8 PH7668008 SPRING RELIEF VALVE $1.00
9 PH7668009
*DISCD*PAINT INLET PLUG
Item is no longer available
N/A
10 PH7668010 CENTERPOST $2.50
11 PH7668011 FLUID OUTLET $3.75
12 PH7668012 HANDLE NUT $1.00
13 PH7668013 HANDLE $1.00
14 PH7668014 REGULATOR ASSY $11.25
14-1 PH7668014-1 REGULATOR GAUGE 60PSI $11.25
15 PH7668015 SCREW $1.00
16 PH7668016 CHECK VALVE $1.00
17 PH7668017 COMPRESSION SPRING $1.00
18 PH7668018 CHECK VALVE WASHER $1.00
19 PH7668019 COMBO HOSE $26.50
20 PH7668020 AIR INLET PLUG $1.00
21 PH7668021 BLOCK $1.00
22 PH7668022 GUN BODY $9.00
23 PH7668023 DIRECTION PIPE $1.00
24 PH7668024 FLUID ADJUSTMENT NEEDLE $2.00
25 PH7668025 FLUID ADJ. NEEDLE WASHER $1.00
26 PH7668026 FLUID CONTROL SCREW $1.00
27 PH7668027 FLUID ADJUSTMENT SCREW $1.00
28 PH7668028 PATTERN ADJ SCREW $1.00
29 PH7668029 O-RING $1.00
30 PH7668030 PATTERN ADJ KNOB $1.00
31 PH7668031 SNAP RETAINER $1.00
32 PH7668032 PATTERN ADJ NEEDLE $1.00
33 PH7668033 SNAP RETAINER $1.00
34 PH7668034 TRIGGER $1.50
35 PH7668035 TRIGGER PIN $1.00
36 PH7668036 CONNECT SCREW $2.00
37 PH7668037 DIRECTION SCREW SEAL $1.00
38 PH7668038 HEAD $2.25
39 PH7668039 FLUID NOZZLE $3.25
40 PH7668040 AIR CAP $3.25
40-1 PH7668040-1 AIR CAP RING PLASTIC $1.00
41 PH7668041 DIRECTION SCREW $1.00
42 PH7668042 SWITCH SPRING $1.00
43 PH7668043 SWITCH PIPE $1.00
44 PH7668044 FLAT WASHER 2MM $1.00
45 PH7668045 SWITCH SEAT $1.00
46 PH7668046 SWITCH SEAT WASHER $1.00
47 PH7668047 SWITCH SEAT NUT $1.00
48 PH7668048 BRUSH $1.00
49 PH7668049 SERVICE WRENCH $1.50
