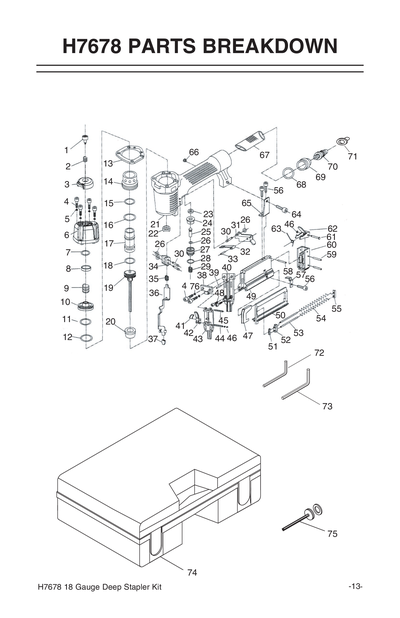

Parts for H7678 18 Gauge Deep Stapler Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

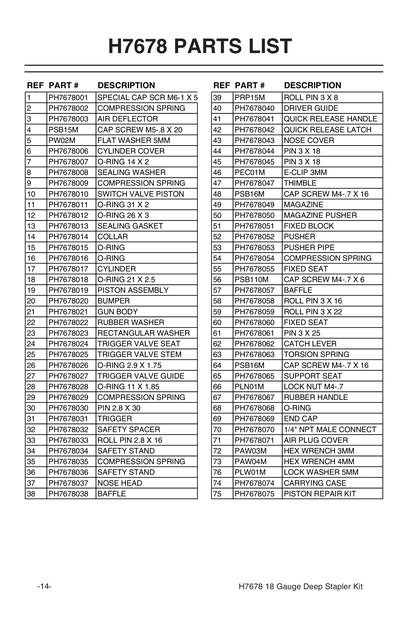

1
*DISCD* CYLINDER COVER CAP SCR M6-1 X 5
2
*DISCD* COMPRESSION SPRING
3
*DISCD* AIR DEFLECTOR
4
CAP SCREW M5-.8 X 20
Price
N/A
5
Now: PW02M
FLAT WASHER 5MM
Price
N/A
6
*DISCD* CYLINDER COVER
7
*DISCD* O-RING 14 X 2
8
*DISCD* SEALING WASHER
9
*DISCD* COMPRESSION SPRING
10
*DISCD* SWITCH VALVE PISTON
11
*DISCD* O-RING 31 X 2
12
*DISCD* O-RING 26 X 3
13
*DISCD* SEALING GASKET
14
*DISCD* COLLAR
Item is no longer available
Price
N/A
15
*DISCD* O-RING 30 X 1.8
16
*DISCD* O-RING 42.6 X 2.35
17
*DISCD* CYLINDER
Item is no longer available
Price
N/A
18
*DISCD* O-RING 21 X 3
19
*DISCD* PISTON ASSY
20
*DISCD* BUMPER
21
*DISCD* GUN BODY
Item is no longer available
Price
N/A
22
*DISCD* RUBBER WASHER
23
*DISCD* THRUST WASHER 10MM RUBBER
Item is no longer available
Price
N/A
24
*DISCD* TRIGGER VALVE SEAT
Item is no longer available
Price
N/A
25
*DISCD* TRIGGER VALVE STEM
Item is no longer available
Price
N/A
26
*DISCD* O-RING 2.9 X 1.75
27
*DISCD* TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
28
O-RING 11 X 2.4 P11.2
Price
N/A
29
*DISCD* COMPRESSION SPRING
30
*DISCD* PIN 2.8 X 30
31
*DISCD* TRIGGER
Item is no longer available
Price
N/A
32
*DISCD* SAFETY SPACER
Item is no longer available
Price
N/A
33
*DISCD* ROLL PIN 2.8 X 16
Item is no longer available
Price
N/A
34
*DISCD* SAFETY STAND
Item is no longer available
Price
N/A
35
*DISCD* COMPRESSION SPRING
36
*DISCD* SAFETY STAND
Item is no longer available
Price
N/A
37
*DISCD* NOSE HEAD
38
*DISCD* BAFFLE
39
ROLL PIN 3 X 8
Price
N/A
40
*DISCD* DRIVER GUIDE
41
*DISCD* QUICK RELEASE HANDLE
42
*DISCD* QUICK RELEASE LATCH
Item is no longer available
Price
N/A
43
*DISCD* NOSE COVER
44
*DISCD* PIN 3 X 18
45
*DISCD* PIN 3 X 18
Item is no longer available
Price
N/A
46
E-CLIP 3MM
Price
N/A
47
*DISCD* THIMBLE
48
CAP SCREW M4-.7 X 16
Price
N/A
49
*DISCD* MAGAZINE
Item is no longer available
Price
N/A
50
*DISCD* MAGAZINE PUSHER
Item is no longer available
Price
N/A
51
*DISCD* FIXED BLOCK
Item is no longer available
Price
N/A
52
*DISCD* PUSHER
Item is no longer available
Price
N/A
53
*DISCD* PUSHER PIPE
Item is no longer available
Price
N/A
54
*DISCD* COMPRESSION SPRING
55
*DISCD* FIXED SEAT
Item is no longer available
Price
N/A
56
CAP SCREW M4-.7 X 6
Price
N/A
57
*DISCD* BAFFLE
58
*DISCD* ROLL PIN 3 X 16
59
*DISCD* ROLL PIN 3 X 22
60
*DISCD* FIXED SEAT
61
*DISCD* PIN 3 X 25
62
*DISCD* CATCH LEVER
63
*DISCD* TORSION SPRING
64
CAP SCREW M4-.7 X 16
Price
N/A
65
*DISCD* SUPPORT SEAT
Item is no longer available
Price
N/A
66
LOCK NUT M4-.7
Price
N/A
67
*DISCD* RUBBER HANDLE
Item is no longer available
Price
N/A
68
*DISCD* O-RING 36.3 X 3.55
69
*DISCD* END CAP
Item is no longer available
Price
N/A
70
*DISCD* MALE CONNECT 1/4NPT
Item is no longer available
Price
N/A
71
*DISCD* AIR PLUG COVER
Item is no longer available
Price
N/A
72
HEX WRENCH 3MM
Price
N/A
73
HEX WRENCH 4MM
Price
N/A
74
*DISCD* CARRYING CASE
Item is no longer available
Price
N/A
75
*DISCD* PISTON REPAIR KIT
76
LOCK WASHER 5MM
Price
N/A
77
*DISCD* COMPLETE O-RING KIT
MANUAL
MANUAL FOR H7678 07/05
