Parts for H7678 - 18 Gauge Deep Stapler Kit

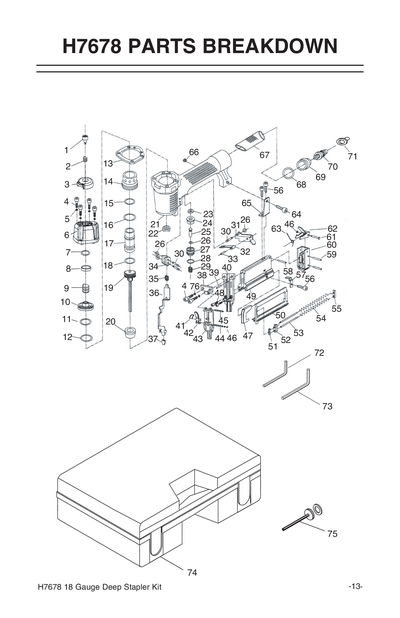

Part Diagram for H7678
Part Diagram for H7678
Part Diagram for H7678
Part Diagram for H7678

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

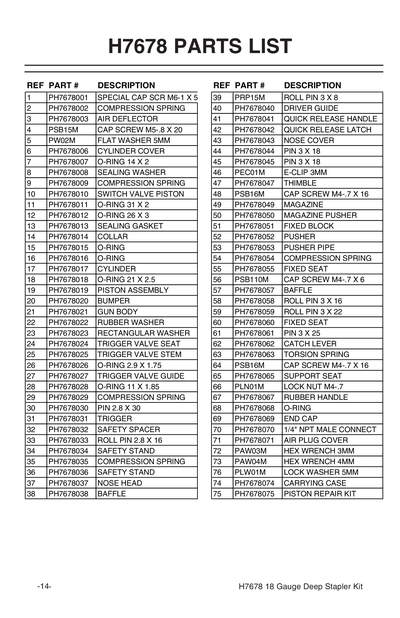

Ref #
Part #
Description
1
*DISCD* CYLINDER COVER CAP SCR M6-1 X 5
Price
$1.49
2
*DISCD* COMPRESSION SPRING
Price
$1.49
3
Price
$1.49
4
CAP SCREW M5-.8 X 20
Price
N/A
5
FLAT WASHER 5MM
Price
N/A
6
Price
$4.35
7
Price
$1.49
8
Price
$1.49
9
*DISCD* COMPRESSION SPRING
Price
$1.49
10
*DISCD* SWITCH VALVE PISTON
Price
$4.60
11
Price
$1.49
12
Price
$1.49
13
Price
$1.49
14
*DISCD* COLLAR
Item is no longer available
Price
N/A
15
*DISCD* O-RING 30 X 1.8
Price
$1.49
16
*DISCD* O-RING 42.6 X 2.35
Price
$1.49
17
*DISCD* CYLINDER
Item is no longer available
Price
N/A
18
Price
$1.49
19
Price
$14.40
20
Price
$1.49
21
*DISCD* GUN BODY
Item is no longer available
Price
N/A
22
Price
$1.49
23
*DISCD* THRUST WASHER 10MM RUBBER
Item is no longer available
Price
N/A
24
*DISCD* TRIGGER VALVE SEAT
Item is no longer available
Price
N/A
25
*DISCD* TRIGGER VALVE STEM
Item is no longer available
Price
N/A
26
*DISCD* O-RING 2.9 X 1.75
Price
$7.80
27
*DISCD* TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
28
O-RING 11 X 2.4 P11.2
Price
N/A
29
*DISCD* COMPRESSION SPRING
Price
$1.49
30
Price
$1.49
31
*DISCD* TRIGGER
Item is no longer available
Price
N/A
32
*DISCD* SAFETY SPACER
Item is no longer available
Price
N/A
33
*DISCD* ROLL PIN 2.8 X 16
Item is no longer available
Price
N/A
34
*DISCD* SAFETY STAND
Item is no longer available
Price
N/A
35
*DISCD* COMPRESSION SPRING
Price
$1.49
36
*DISCD* SAFETY STAND
Item is no longer available
Price
N/A
37
Price
$2.05
38
Price
$1.49
39
ROLL PIN 3 X 8
Price
N/A
40
Price
$10.10
41
*DISCD* QUICK RELEASE HANDLE
Price
$4.35
42
*DISCD* QUICK RELEASE LATCH
Item is no longer available
Price
N/A
43
Price
$7.20
44
Price
$1.49
45
*DISCD* PIN 3 X 18
Item is no longer available
Price
N/A
46
E-CLIP 3MM
Price
N/A
47
Price
$1.49
48
CAP SCREW M4-.7 X 16
Price
N/A
49
*DISCD* MAGAZINE
Item is no longer available
Price
N/A
50
*DISCD* MAGAZINE PUSHER
Item is no longer available
Price
N/A
51
*DISCD* FIXED BLOCK
Item is no longer available
Price
N/A
52
*DISCD* PUSHER
Item is no longer available
Price
N/A
53
*DISCD* PUSHER PIPE
Item is no longer available
Price
N/A
54
*DISCD* COMPRESSION SPRING
Price
$1.49
55
*DISCD* FIXED SEAT
Item is no longer available
Price
N/A
56
CAP SCREW M4-.7 X 6
Price
N/A
57
Price
$1.49
58
*DISCD* ROLL PIN 3 X 16
Price
$1.49
59
*DISCD* ROLL PIN 3 X 22
Price
$1.49
60
Price
$1.49
61
Price
$1.49
62
Price
$1.49
63
Price
$1.49
64
CAP SCREW M4-.7 X 16
Price
N/A
65
*DISCD* SUPPORT SEAT
Item is no longer available
Price
N/A
66
LOCK NUT M4-.7
Price
N/A
67
*DISCD* RUBBER HANDLE
Item is no longer available
Price
N/A
68
*DISCD* O-RING 36.3 X 3.55
Price
$1.49
69
*DISCD* END CAP
Item is no longer available
Price
N/A
70
*DISCD* MALE CONNECT 1/4NPT
Item is no longer available
Price
N/A
71
*DISCD* AIR PLUG COVER
Item is no longer available
Price
N/A
72
HEX WRENCH 3MM
Price
N/A
73
HEX WRENCH 4MM
Price
N/A
74
*DISCD* CARRYING CASE
Item is no longer available
Price
N/A
75
*DISCD* PISTON REPAIR KIT
Price
$14.40
76
LOCK WASHER 5MM
Price
N/A
77
*DISCD* COMPLETE O-RING KIT
Price
$4.35
MANUAL
Price
$22.65
