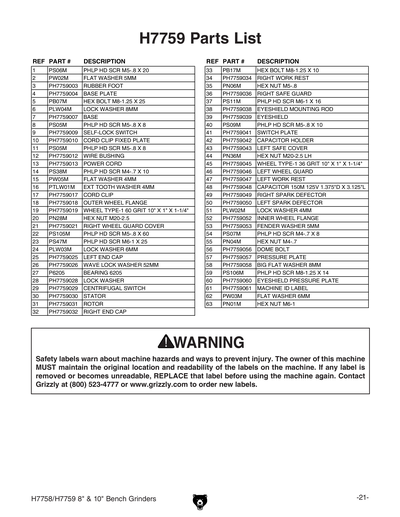

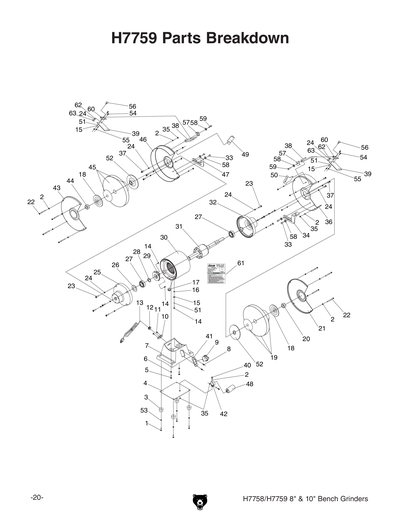

Parts for H7759 10" Bench Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
2
Now: PW02M
FLAT WASHER 5MM
Price
N/A
3
RUBBER FOOT
Item is no longer available
Price
N/A
4
BASE PLATE
Item is no longer available
Price
N/A
5
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
6
LOCK WASHER 8MM
Price
N/A
7
BASE
Item is no longer available
Price
N/A
8
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
9
SELF-LOCK SWITCH
10
CORD CLIP FIXED PLATE
Item is no longer available
Price
N/A
11
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
12
WIRE BUSHING
Item is no longer available
Price
N/A
13
POWER CORD
Item is no longer available
Price
N/A
14
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
15
Now: PW05M
FLAT WASHER 4MM
Price
N/A
16
EXT TOOTH WASHER 4MM
Price
N/A
17
CORD CLIP
Item is no longer available
Price
N/A
18
OUTER WHEEL FLANGE
Item is no longer available
Price
N/A
19
WHEEL TYPE-1 60 GRIT 10" X 1" X 1-1/4"
20
Now: PN28M
HEX NUT M20-2.5
Price
N/A
21
WHEEL GUARD COVER RIGHT
Item is no longer available
Price
N/A
22
Now: PS13M
PHLP HD SCR M3-.5 X 20
Price
N/A
23
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
24
LOCK WASHER 6MM
Price
N/A
25
END CAP LEFT
Item is no longer available
Price
N/A
26
WAVY WASHER 40MM
Item is no longer available
Price
N/A
27
BALL BEARING 6205ZZ
Price
N/A
28
*DISCD*LOCK WASHER
Item is no longer available
Price
N/A
29
CENTRIFUGAL SWITCH
30
STATOR
Item is no longer available
Price
N/A
31
ROTOR
Item is no longer available
Price
N/A
32
END CAP RIGHT
Item is no longer available
Price
N/A
33
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
34
WORK REST RIGHT
Item is no longer available
Price
N/A
35
Now: PN06M
HEX NUT M5-.8
Price
N/A
36
SAFE GUARD RIGHT
Item is no longer available
Price
N/A
37
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
38
EYESHIELD MOUNTING ROD
Item is no longer available
Price
N/A
39
EYE SHIELD
Price
N/A
40
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
41
SWITCH PLATE
42
CAPACITOR HOLDER
Item is no longer available
Price
N/A
43
SAFE COVER
Item is no longer available
Price
N/A
44
Now: PN36M
HEX NUT M20-2.5 LH
Price
N/A
45
WHEEL TYPE-1 36 GRIT 10" X 1" X 1-1/4"
46
WHEEL GUARD LEFT
Item is no longer available
Price
N/A
47
*DISCD*WORK REST LEFT
Item is no longer available
Price
N/A
48
S CAPACITOR 150M 125V 1-3/4 X 3-1/8
Item is no longer available
Price
N/A
49
SPARK ARRESTOR RIGHT
Item is no longer available
Price
N/A
50
SPARK DEFLECTOR LEFT
Item is no longer available
Price
N/A
51
LOCK WASHER 4MM
Price
N/A
52
INNER WHEEL FLANGE
53
FENDER WASHER 5MM
Price
N/A
54
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
55
Now: PN04M
HEX NUT M4-.7
Price
N/A
56
DOME BOLT
Item is no longer available
Price
N/A
57
PRESSURE PLATE
Item is no longer available
Price
N/A
58
Now: PW01M
FLAT WASHER 8MM
Price
N/A
59
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
60
*DISCD*EYESHIELD PRESSURE PLATE
Item is no longer available
Price
N/A
61
MACHINE ID LABEL
Item is no longer available
Price
N/A
62
Now: PW03M
FLAT WASHER 6MM
Price
N/A
63
Now: PN01M
HEX NUT M6-1
Price
N/A
