Parts for H7826 - Flooring Nailer

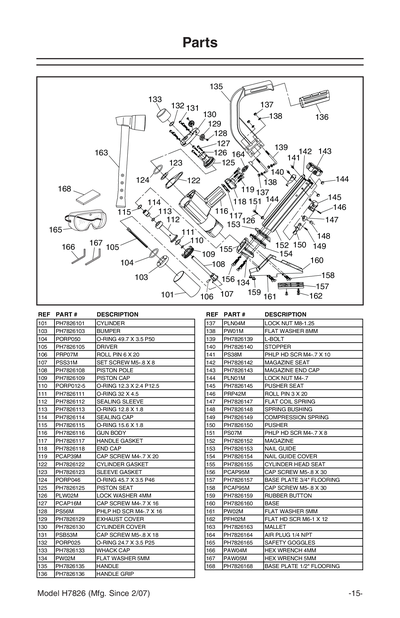

Part Diagram for H7826
Part Diagram for H7826

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*CYLINDER
Price
N/A
4
O-RING 49.7 X 3.5 P50
Price
N/A
5
*DISCD* DRIVER ASSY.
Price
N/A
11
*DISCD*PISTON V1.07.06
Item is no longer available
Price
N/A
12
O-RING 12.3 X 2.4 P12.5
Price
N/A
13
*DISCD*PISTON CAP V1.07.06
Item is no longer available
Price
N/A
14
*DISCD*O-RING 15.6 X 1.8
Price
N/A
15
*DISCD*GUN BODY
Price
N/A
16
*DISCD*CYLINDER COVER GASKET V1.07.06
Item is no longer available
Price
N/A
17
*DISCD*PISTON GASKET V1.07.06
Item is no longer available
Price
N/A
18
O-RING 45.7 X 3.5 P46
Price
N/A
24
*DISCD*CYLINDER COVER V1.07.06
Price
$11.80
26
O-RING 24.7 X 3.5 P25
Price
N/A
32
*DISCD*CYLINDER HEAD SEAT V1.07.06
Item is no longer available
Price
N/A
33
*DISCD*NAIL HEAD COVER BOARD V1.07.06
Price
$20.45
34
*DISCD*NAIL HEAD V1.07.06
Price
$5.20
35
*DISCD*MAGAZINE V1.07.06
Item is no longer available
Price
N/A
41
*DISCD*PUSHER SEAT V1.07.06
Price
$2.60
43
*DISCD*FLAT COIL SPRINGV1.07.06
Price
$1.49
44
*DISCD*PIN V1.07.06
Price
$1.49
45
*DISCD*SPRING BUSHING V1.07.06
Price
$1.49
46
*DISCD*COMPRESSION SPRING V1.07.06
Price
$1.49
47
*DISCD*PUSHER V1.07.06
Price
$1.49
49
*DISCD*BOTTOM SEAT V1.07.06
Item is no longer available
Price
N/A
101
*DISCD*CYLINDER
Price
$35.95
102
*DISCD*HEAD GASKET
Item is no longer available
Price
N/A
103
*DISCD*BUMPER
Item is no longer available
Price
N/A
104
O-RING 49.7 X 3.5 P50
Price
N/A
105
*DISCD* DRIVER ASSY.
Price
N/A
105A
*DISCD* DRIVER ASSY.
Item is no longer available
Price
N/A
106
ROLL PIN 6 X 20
Price
N/A
107
SET SCREW M5-.8 X 8
Price
N/A
108
*DISCD* DRIVER ASSY.
Price
N/A
109
*DISCD* DRIVER ASSY.
Price
N/A
110
O-RING 12.3 X 2.4 P12.5
Price
N/A
111
*DISCD*O-RING 32 X 4.5
Price
$1.49
112
*DISCD*SEALING SLEEVE FOR GASKET V1
Price
$1.49
112-1
*DISCD*GASKET BLACK RUBBER V1
Item is no longer available
Price
N/A
112-1V2
*DISCD* O-RING 34 X 4.5MM V2.06.08
Price
$1.49
112V2
*DISCD*SEALING SLEEVE FOR O-RING V2.06.0
Item is no longer available
Price
N/A
113
*DISCD* O-RING 12.8 X 1.8
Price
$1.49
114
*DISCD*SEALING CAP
Price
$1.49
115
*DISCD*O-RING 15.6 X 1.8
Price
N/A
116
*DISCD*GUN BODY
Price
$72.20
117
*DISCD*HANDLE GASKET
Price
$1.49
118
*DISCD*END CAP
Price
$3.45
119
CAP SCREW M4-.7 X 20
Price
N/A
120
*DISCD*BODY SEALING RING
Item is no longer available
Price
N/A
121
*DISCD*BODY SEALING WASHER
Item is no longer available
Price
N/A
122
*DISCD*CYLINDER GASKET
Price
$2.60
123
*DISCD*SLEEVE GASKET
Price
$1.49
124
O-RING 45.7 X 3.5 P46
Price
N/A
125
*DISCD*PISTON SEAT
Price
$24.75
126
LOCK WASHER 4MM
Price
N/A
127
CAP SCREW M4-.7 X 16
Price
N/A
128
PHLP HD SCR M4-.7 X 16
Price
N/A
129
*DISCD*EXHAUST COVER
Price
$1.49
130
*DISCD*CYLINDER COVER
Price
$10.35
131
CAP SCREW M5-.8 X 18
Price
N/A
132
O-RING 24.7 X 3.5 P25
Price
N/A
133
*DISCD*WHACK CAP
Item is no longer available
Price
N/A
134
FLAT WASHER 5MM
Price
N/A
135
*DISCD*HANDLE
Item is no longer available
Price
N/A
136
*DISCD*HANDLE GRIP RUBBER
Item is no longer available
Price
N/A
137
LOCK NUT M8-1.25
Price
N/A
138
FLAT WASHER 8MM
Price
N/A
139
*DISCD*L-BOLT
Price
$1.49
140
*DISCD*STOPPER
Item is no longer available
Price
N/A
141
PHLP HD SCR M4-.7 X 10
Price
N/A
142
*DISCD*MAGAZINE SEAT
Item is no longer available
Price
N/A
143
*DISCD*MAGAZINE END CAP
Price
$4.35
144
LOCK NUT M4-.7
Price
N/A
145
*DISCD*PUSHER SEAT
Price
$1.49
146
ROLL PIN 3 X 20
Price
N/A
147
*DISCD*FLAT COIL SPRING
Price
$1.49
148
*DISCD*SPRING BUSHING
Price
$1.49
149
*DISCD*COMPRESSION SPRING
Price
$1.49
150
*DISCD*PUSHER
Price
$1.49
151
PHLP HD SCR M4-.7 X 8
Price
N/A
152
*DISCD*MAGAZINE
Item is no longer available
Price
N/A
153
*DISCD*NAIL GUIDE
Price
$10.35
154
*DISCD*NAIL GUIDE COVER
Price
$12.95
155
*DISCD*CYLINDER HEAD SEAT
Item is no longer available
Price
N/A
156
CAP SCREW M5-.8 X 30
Price
N/A
157
*DISCD*BASE PLATE 3/4IN FLOORING
Item is no longer available
Price
N/A
158
CAP SCREW M5-.8 X 30
Price
N/A
159
*DISCD*BUTTON RUBBER
Item is no longer available
Price
N/A
160
*DISCD*BASE
Price
$41.40
161
FLAT WASHER 5MM
Price
N/A
162
FLAT HD SCR M6-1 X 12
Price
N/A
163
*DISCD* MALLET
Price
$17.85
164
*DISCD*AIR PLUG 1/4" NPT
Item is no longer available
Price
N/A
165
*DISCD*SAFETY GOGGLES
Item is no longer available
Price
N/A
166
HEX WRENCH 4MM
Price
N/A
167
HEX WRENCH 5MM
Price
N/A
168
*DISCD*BASE PLATE 1/2IN FLOORING
Item is no longer available
Price
N/A
169
*DISCD*COMPLETE O-RING KIT
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR H7826 10/05
Item is no longer available
Price
N/A
