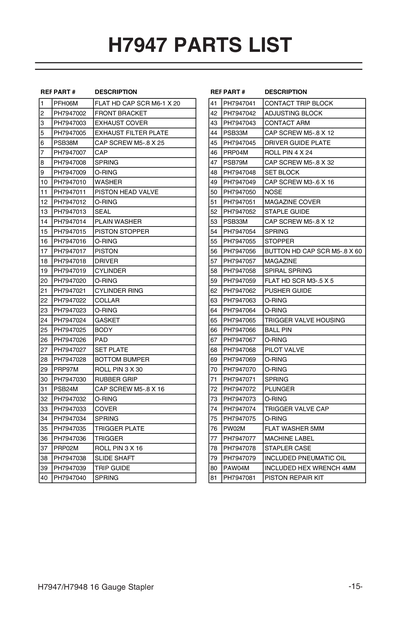

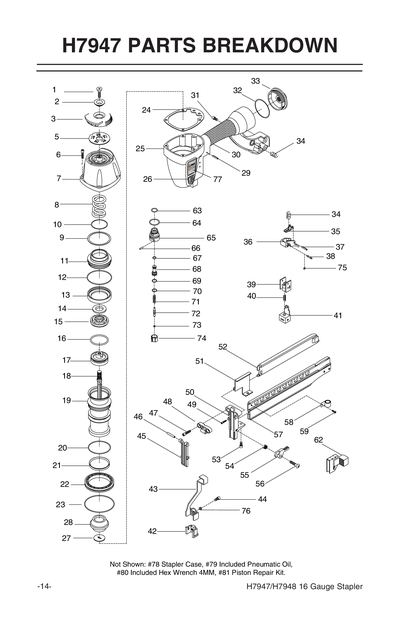

Parts for H7947 16 Gauge 7/16" Crown Extreme-Duty Stapler Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FLAT HD SCR M6-1 X 20
Price
N/A
2
*DISCD*FRONT BRACKET
Item is no longer available
Price
N/A
3
*DISCD*EXHAUST COVER
Item is no longer available
Price
N/A
5
*DISCD*EXHAUST FILTER PLATE
Item is no longer available
Price
N/A
6
CAP SCREW M5-.8 X 25
Price
N/A
7
*DISCD*CAP
Item is no longer available
Price
N/A
8
*DISCD*SPRING
Item is no longer available
Price
N/A
9
*DISCD*O-RING
Item is no longer available
Price
N/A
10
*DISCD*WASHER
Item is no longer available
Price
N/A
11
*DISCD*PISTON HEAD VALVE
Item is no longer available
Price
N/A
12
*DISCD*O-RING
Item is no longer available
Price
N/A
13
*DISCD*SEAL
Item is no longer available
Price
N/A
14
*DISCD*PLAIN WASHER
Item is no longer available
Price
N/A
15
*DISCD*PISTON STOPPER
Item is no longer available
Price
N/A
16
*DISCD*O-RING
Item is no longer available
Price
N/A
17
*DISCD*PISTON & DRIVER
Item is no longer available
Price
N/A
18
*DISCD*PISTON & DRIVER
Price
N/A
19
*DISCD*CYLINDER
Item is no longer available
Price
N/A
20
*DISCD*O-RING
Item is no longer available
Price
N/A
21
*DISCD*CYLINDER RING
Item is no longer available
Price
N/A
22
*DISCD*COLLAR
Item is no longer available
Price
N/A
23
*DISCD*O-RING
Item is no longer available
Price
N/A
24
*DISCD*GASKET
Item is no longer available
Price
N/A
25
*DISCD*BODY
Item is no longer available
Price
N/A
26
*DISCD*PAD
Item is no longer available
Price
N/A
27
*DISCD*SET PLATE
Item is no longer available
Price
N/A
28
*DISCD*BOTTOM BUMPER
Item is no longer available
Price
N/A
29
ROLL PIN 3 X 30
Price
N/A
30
*DISCD*RUBBER GRIP
Item is no longer available
Price
N/A
31
CAP SCREW M5-.8 X 16
Price
N/A
32
*DISCD*O-RING
Item is no longer available
Price
N/A
33
*DISCD*COVER
Item is no longer available
Price
N/A
34
*DISCD*SPRING
Item is no longer available
Price
N/A
35
*DISCD*TRIGGER PLATE ASSEMBLY
Item is no longer available
Price
N/A
36
*DISCD*TRIGGER PLATE ASSEMBLY
Price
N/A
37
ROLL PIN 3 X 16
Price
N/A
38
*DISCD*TRIGGER PLATE ASSEMBLY
Price
N/A
39
*DISCD*TRIP GUIDE
Item is no longer available
Price
N/A
40
*DISCD*SPRING
Item is no longer available
Price
N/A
41
*DISCD*CONTACT TRIP BLOCK
Item is no longer available
Price
N/A
42
*DISCD*ADJUSTING BLOCK
Item is no longer available
Price
N/A
43
*DISCD*CONTACT ARM
Item is no longer available
Price
N/A
44
CAP SCREW M5-.8 X 12
Price
N/A
45
*DISCD*DRIVER GUIDE PLATE
Item is no longer available
Price
N/A
46
ROLL PIN 4 X 24
Price
N/A
47
CAP SCREW M5-.8 X 35
Price
N/A
48
*DISCD*SET BLOCK
Item is no longer available
Price
N/A
49
*DISCD*CAP SCREW M3-.6 X 16
Item is no longer available
Price
N/A
50
*DISCD*NOSE
Item is no longer available
Price
N/A
51
*DISCD*MAGAZINE COVER
Item is no longer available
Price
N/A
52
*DISCD*STAPLE GUIDE
53
CAP SCREW M5-.8 X 12
Price
N/A
54
*DISCD*SPRING
Item is no longer available
Price
N/A
55
*DISCD*STOPPER
Item is no longer available
Price
N/A
56
*DISCD*BUTTON HD CAP SCR M5-.8 X 60
Item is no longer available
Price
N/A
57
*DISCD*MAGAZINE
Item is no longer available
Price
N/A
58
*DISCD*SPIRAL SPRING
Item is no longer available
Price
N/A
59
*DISCD*FLAT HD SCR M3-.5 X 5
Item is no longer available
Price
N/A
62
*DISCD*PUSHER GUIDE
Item is no longer available
Price
N/A
63
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
63-1
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Item is no longer available
Price
N/A
64
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
65
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
66
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
67
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
68
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
69
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
70
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
71
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
72
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
73
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
74
*DISCD*TRIGGER VALVE HOUSING ASSEMBLY
Price
N/A
75
*DISCD*O-RING
Item is no longer available
Price
N/A
76
Now: PW02M
FLAT WASHER 5MM
Price
N/A
77
*DISCD*MACHINE LABEL
Item is no longer available
Price
N/A
78
*DISCD*STAPLER CASE
Item is no longer available
Price
N/A
780
HEX WRENCH 4MM
Price
N/A
79
*DISCD*INCLUDED PNEUMATIC OIL
Item is no longer available
Price
N/A
81
*DISCD*PISTON REPAIR KIT
Item is no longer available
Price
N/A
