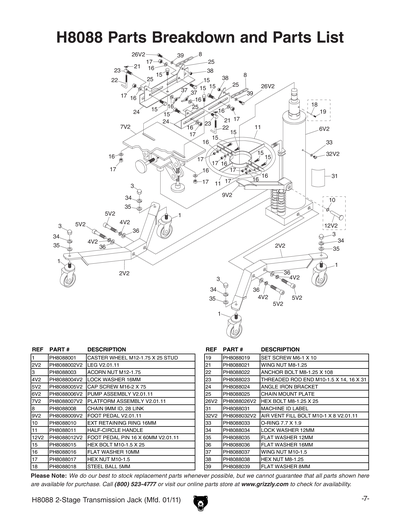

Parts for H8088 2 Stage Transmission Jack

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*CASTER WHEEL M12-1.75 X 25 STUD
Item is no longer available
Price
N/A
2
*DISCD*LEG V2.01.11
Price
N/A
2V2
*DISCD*LEG V2.01.11
3
Now: PN26M
ACORN NUT M12-1.75
Price
N/A
4
LOCK WASHER 12MM
Price
N/A
4V2
LOCK WASHER 16MM
Price
N/A
5
HEX BOLT M12-1.75 X 70
Price
N/A
5V2
*DISCD*CAP SCREW M16-2 X 75
Item is no longer available
Price
N/A
6
PUMP ASSY
6-1
*DISCD*COMPLETE SEAL AND O-RING KIT
6-2
*DISCD*ROD SEAL
Item is no longer available
Price
N/A
6V2
*DISCD*PUMP ASSEMBLY V2.01.11
Item is no longer available
Price
N/A
7
*DISCD*PLATFORM ASSEMBLY V2.01.11
Price
N/A
7V2
*DISCD*PLATFORM ASSEMBLY V2.01.11
Item is no longer available
Price
N/A
8
*DISCD*CHAIN 9MM ID, 28 LINK
9
*DISCD*FOOT PEDAL V1
Item is no longer available
Price
N/A
9V2
*DISCD*FOOT PEDAL V2.01.11
Item is no longer available
Price
N/A
10
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
11
*DISCD*HALF-CIRCLE HANDLE
12
*DISCD*FOOT PEDAL PIN 66MM V1
Item is no longer available
Price
N/A
12V2
*DISCD*FOOT PEDAL PIN 16 X 60MM V2.01.11
Item is no longer available
Price
N/A
13
*DISCD*HANDLE PIN
Item is no longer available
Price
N/A
14
*DISCD*STRAIGHT HANDLE
Item is no longer available
Price
N/A
15
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
16
Now: PW04M
FLAT WASHER 10MM
Price
N/A
17
Now: PN02M
HEX NUT M10-1.5
Price
N/A
18
STEEL BALL 5MM
Price
N/A
19
SET SCREW M6-1 X 10
Price
N/A
20
*DISCD*COLLAR
Item is no longer available
Price
N/A
21
WING NUT M8-1.25
Price
N/A
22
*DISCD*ANCHOR BOLT M8-1.25 X 108
Item is no longer available
Price
N/A
23
*DISCD*THREADED ROD END M10-1.5 X 14, 16
24
*DISCD*ANGLE IRON BRACKET
Item is no longer available
Price
N/A
25
*DISCD*CHAIN MOUNT PLATE
Item is no longer available
Price
N/A
26
*DISCD*EYE BOLT
26V2
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
27
*DISCD*ANCHOR SHACKLE W/SCREW
28
*DISCD*COTTER PIN 3 X 35
Item is no longer available
Price
N/A
29
*DISCD*PIN 76MM
Item is no longer available
Price
N/A
30
Now: PW01M
FLAT WASHER 8MM
Price
N/A
31
MACHINE ID LABEL
Item is no longer available
Price
N/A
32
*DISCD*FILL BOLT
32V2
*DISCD*AIR VENT FILL BOLT M10-1 X 8 V2.0
Item is no longer available
Price
N/A
33
*DISCD*O-RING 7.7 X 1.9
Item is no longer available
Price
N/A
34
LOCK WASHER 12MM
Price
N/A
35
Now: PW06M
FLAT WASHER 12MM
Price
N/A
36
Now: PW08M
FLAT WASHER 16MM
Price
N/A
37
WING NUT M10-1.5
Price
N/A
38
Now: PN03M
HEX NUT M8-1.25
Price
N/A
39
Now: PW01M
FLAT WASHER 8MM
Price
N/A
