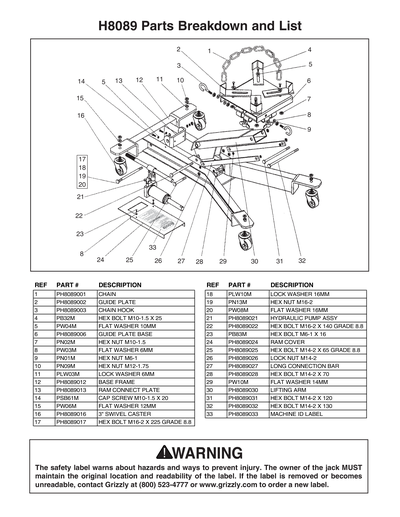

Parts for H8089 1250 lb. Low Profile Transmission Jack

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*CHAIN
2
*DISCD*GUIDE PLATE
3
*DISCD*CHAIN HOOK
4
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
5
Now: PW04M
FLAT WASHER 10MM
Price
N/A
6
*DISCD*GUIDE PLATE BASE
Item is no longer available
Price
N/A
7
Now: PN02M
HEX NUT M10-1.5
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
Now: PN01M
HEX NUT M6-1
Price
N/A
10
Now: PN09M
HEX NUT M12-1.75
Price
N/A
11
LOCK WASHER 6MM
Price
N/A
12
*DISCD*BASE FRAME
Item is no longer available
Price
N/A
13
*DISCD*RAM CONNECT PLATE
14
CAP SCREW M10-1.5 X 20
Price
N/A
15
Now: PW06M
FLAT WASHER 12MM
Price
N/A
16
*DISCD*SWIVEL CASTER 3"
17
*DISCD*HEX BOLT M16-2 X 225 GRADE 8.8
Item is no longer available
Price
N/A
18
LOCK WASHER 16MM
Price
N/A
19
Now: PN13M
HEX NUT M16-2
Price
N/A
20
Now: PW08M
FLAT WASHER 16MM
Price
N/A
21
*DISCD*HYDRAULIC PUMP ASSY
Item is no longer available
Price
N/A
21-1
*DISCD*PUMP HANDLE
Item is no longer available
Price
N/A
22
*DISCD*HEX BOLT M16-2 X 140 GRADE 8.8
Item is no longer available
Price
N/A
23
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
24
*DISCD*RAM COVER
Item is no longer available
Price
N/A
25
*DISCD*HEX BOLT M14-2 X 65 GRADE 8.8
Item is no longer available
Price
N/A
26
LOCK NUT M14-2
Price
N/A
27
*DISCD*CONNECTOR BAR LONG
Item is no longer available
Price
N/A
28
*DISCD*HEX BOLT M14-2 X 70
Item is no longer available
Price
N/A
29
Now: PW10M
FLAT WASHER 14MM
Price
N/A
30
*DISCD*LIFTING ARM
Item is no longer available
Price
N/A
31
*DISCD*HEX BOLT M14-2 X 120
Item is no longer available
Price
N/A
32
*DISCD*HEX BOLT M14-2 X 130
Item is no longer available
Price
N/A
33
MACHINE ID LABEL
Item is no longer available
Price
N/A
