Parts for H8120 - 6" Random Orbital Vacuum Sander

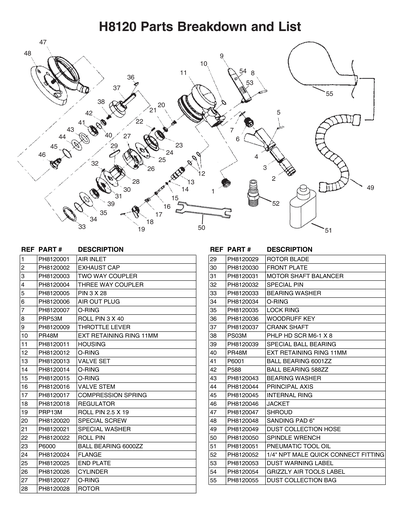

Part Diagram for H8120
Part Diagram for H8120

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*AIR INLET
Item is no longer available
Price
N/A
2
*DISCD*EXHAUST CAP
Item is no longer available
Price
N/A
3
*DISCD*TWO WAY COUPLER
Item is no longer available
Price
N/A
4
*DISCD*THREE WAY COUPLER
Item is no longer available
Price
N/A
5
*DISCD*PIN 3 X 28
Item is no longer available
Price
N/A
6
*DISCD*AIR OUT PLUG
Item is no longer available
Price
N/A
7
*DISCD*O-RING
Item is no longer available
Price
N/A
8
ROLL PIN 3 X 40
Price
N/A
9
*DISCD*THROTTLE LEVER
Item is no longer available
Price
N/A
10
EXT RETAINING RING 11MM
Price
N/A
11
*DISCD*HOUSING
Price
$15.85
12
*DISCD*O-RING
Price
$1.49
13
*DISCD*VALVE SET
Price
$2.90
14
*DISCD*O-RING
Price
$1.49
15
*DISCD*O-RING
Price
$1.49
16
*DISCD*VALVE STEM
Price
$1.49
17
*DISCD*COMPRESSION SPRING
Price
$1.49
18
*DISCD*REGULATOR
Price
$1.49
19
ROLL PIN 2.5 X 19
Price
N/A
20
*DISCD*SPECIAL SCREW
Item is no longer available
Price
N/A
21
*DISCD*SPECIAL WASHER
Item is no longer available
Price
N/A
22
*DISCD*ROLL PIN
Item is no longer available
Price
N/A
23
BALL BEARING 6000ZZ
Price
N/A
24
*DISCD*FLANGE
Item is no longer available
Price
N/A
25
*DISCD*END PLATE
Item is no longer available
Price
N/A
26
*DISCD*CYLINDER
Item is no longer available
Price
N/A
27
*DISCD*O-RING
Price
$1.49
28
*DISCD*ROTOR
Item is no longer available
Price
N/A
29
*DISCD*ROTOR BLADE
Price
$1.49
30
*DISCD*FRONT PLATE
Item is no longer available
Price
N/A
31
*DISCD*MOTOR SHAFT BALANCER
Item is no longer available
Price
N/A
32
*DISCD*SPECIAL PIN
Item is no longer available
Price
N/A
33
*DISCD*BEARING WASHER
Price
$1.49
34
*DISCD*O-RING
Price
$1.49
35
*DISCD*LOCK RING
Price
$1.49
36
*DISCD*WOODRUFF KEY
Item is no longer available
Price
N/A
37
*DISCD*CRANK SHAFT
Item is no longer available
Price
N/A
38
PHLP HD SCR M6-1 X 8
Price
N/A
39
*DISCD*SPECIAL BALL BEARING
Item is no longer available
Price
N/A
40
EXT RETAINING RING 11MM
Price
N/A
41
BALL BEARING 6001ZZ
Price
N/A
42
BALL BEARING 588-OPEN
Price
N/A
43
*DISCD*BEARING WASHER
Item is no longer available
Price
N/A
44
*DISCD*PRINCIPAL AXIS
Item is no longer available
Price
N/A
45
*DISCD*INTERNAL RING
Item is no longer available
Price
N/A
46
*DISCD*JACKET
Item is no longer available
Price
N/A
47
*DISCD*SHROUD
Item is no longer available
Price
N/A
48
*DISCD*SANDING PAD 6"
Item is no longer available
Price
N/A
49
*DISCD*DUST COLLECTION HOSE
Item is no longer available
Price
N/A
50
*DISCD*SPINDLE WRENCH
Item is no longer available
Price
N/A
51
*DISCD*PNEUMATIC TOOL OIL
Item is no longer available
Price
N/A
52
*DISCD*1/4" NPT MALE QUICK CONNECT FITTI
Item is no longer available
Price
N/A
53
*DISCD*DUST WARNING LABEL
Item is no longer available
Price
N/A
54
*DISCD*GRIZZLY AIR TOOLS LABEL
Item is no longer available
Price
N/A
55
*DISCD*DUST COLLECTION BAG
Item is no longer available
Price
N/A
