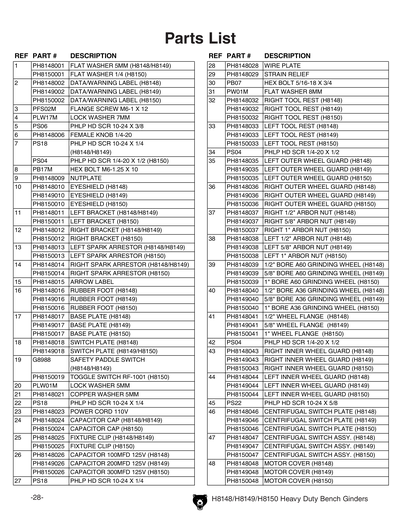

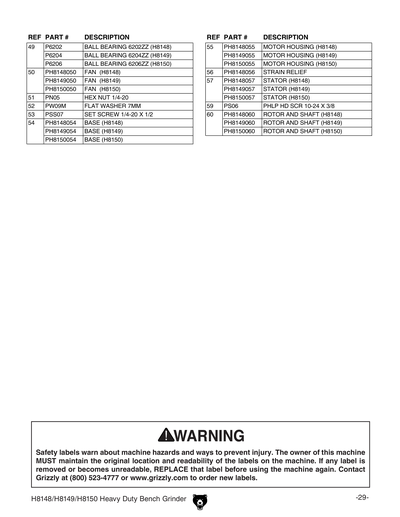

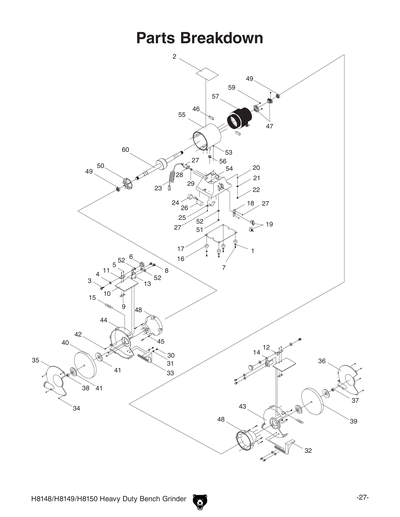

Parts for H8149 8" Bench Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PW02M
FLAT WASHER 5MM
Price
N/A
2
DATA/WARNING LABEL
Item is no longer available
Price
N/A
3
FLANGE SCREW M6-1 X 12
Price
N/A
4
LOCK WASHER 7MM
Price
N/A
5
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
6
*DISCD*FEMALE KNOB 1/4-20
Price
N/A
7
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
8
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
9
*DISCD*NUTPLATE ASSY
Price
N/A
10
EYE SHIELD
11
*DISCD*LEFT BRACKET
Price
N/A
12
*DISCD*RIGHT BRACKET
Price
N/A
13
*DISCD*LEFT SPARK ARRESTOR
Price
N/A
14
*DISCD*RIGHT SPARK ARRESTOR
Price
N/A
15
*DISCD*ARROW LABEL
Price
N/A
16
RUBBER FOOT
Item is no longer available
Price
N/A
17
BASE PLATE
Item is no longer available
Price
N/A
18
SWITCH PLATE
Item is no longer available
Price
N/A
19
Now: G8988
Safety Paddle Switch
Price
N/A
20
LOCK WASHER 5MM
Price
N/A
21
Now: PW07M
FLAT WASHER 3MM
Price
N/A
22
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
23
*DISCD*POWER CORD 110V
Price
N/A
24
*DISCD*CAPACITOR CAP
Price
N/A
25
*DISCD*FIXTURE CLIP
Price
N/A
26
S CAPACITOR 200M 125V 1-1/2 X 3
27
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
28
*DISCD*WIRE PLATE
Price
N/A
29
*DISCD*STRAIN RELIEF
Price
N/A
30
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
31
Now: PW01M
FLAT WASHER 8MM
Price
N/A
32
TOOL REST RIGHT
33
TOOL REST LEFT
34
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
35
OUTER WHEEL GUARD LEFT
Item is no longer available
Price
N/A
36
OUTER WHEEL GUARD RIGHT
37
*DISCD*ARBOR NUT 5/8" RIGHT
Item is no longer available
Price
N/A
38
ARBOR NUT 5/8" LEFT
39
*DISCD*GRINDING WHEEL 5/8" BORE A60
40
*DISCD*GRINDING WHEEL 5/8" BORE A36
41
WHEEL FLANGE 5/8"
42
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
43
INNER WHEEL GUARD RIGHT
44
INNER WHEEL GUARD LEFT
45
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
46
CENTRIFUGAL SWITCH PLATE
47
CENTRIFUGAL SWITCH ASSY.
48
MOTOR COVER
Item is no longer available
Price
N/A
49
BALL BEARING 6204ZZ
Price
N/A
50
FAN
Item is no longer available
Price
N/A
51
Now: PN05
HEX NUT 1/4-20
Price
N/A
52
Now: PW09M
FLAT WASHER 7MM
Price
N/A
53
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
54
BASE
Item is no longer available
Price
N/A
55
MOTOR HOUSING
Item is no longer available
Price
N/A
56
*DISCD*STRAIN RELIEF
Price
N/A
57
STATOR
59
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
60
ROTOR AND SHAFT
